Toyota COROLLA — PARTIAL ENGINE ASSEMBLY

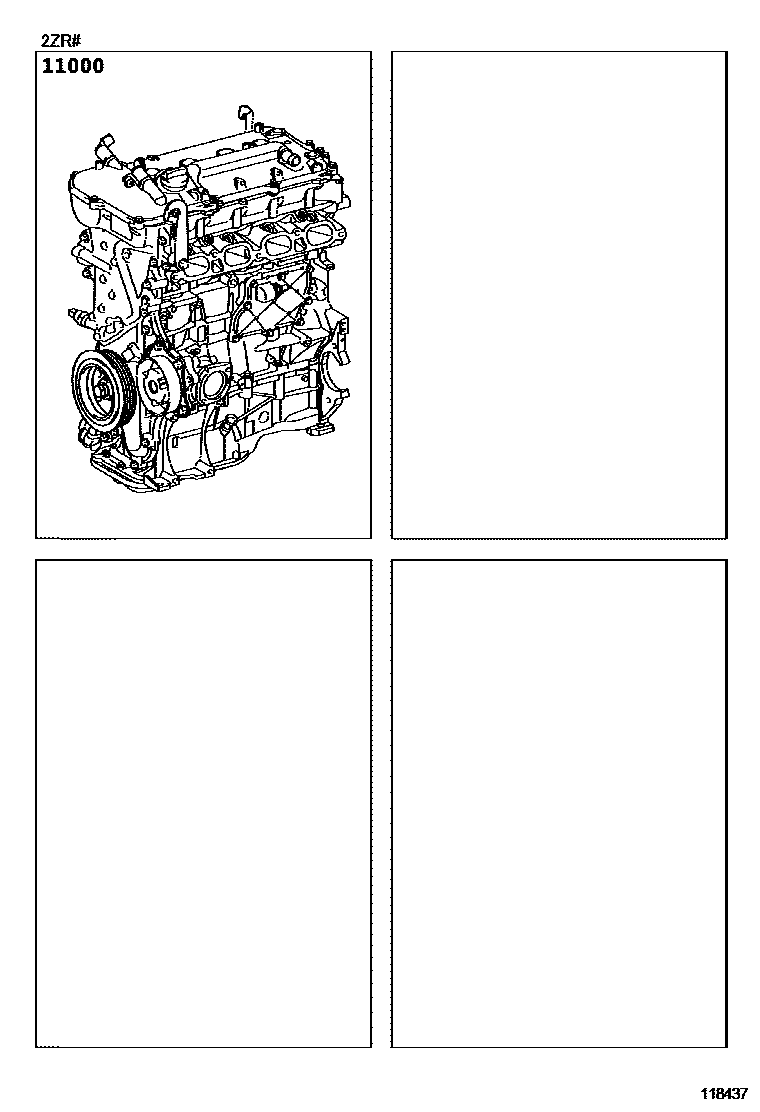

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0T340i201308-201408

main19000-0T341i201507-201608

main19000-0T350i201404-201507

main19000-0T351i201507-201608

main19000-0T560i201608

1 parts on this diagram · 1 diagram in section
