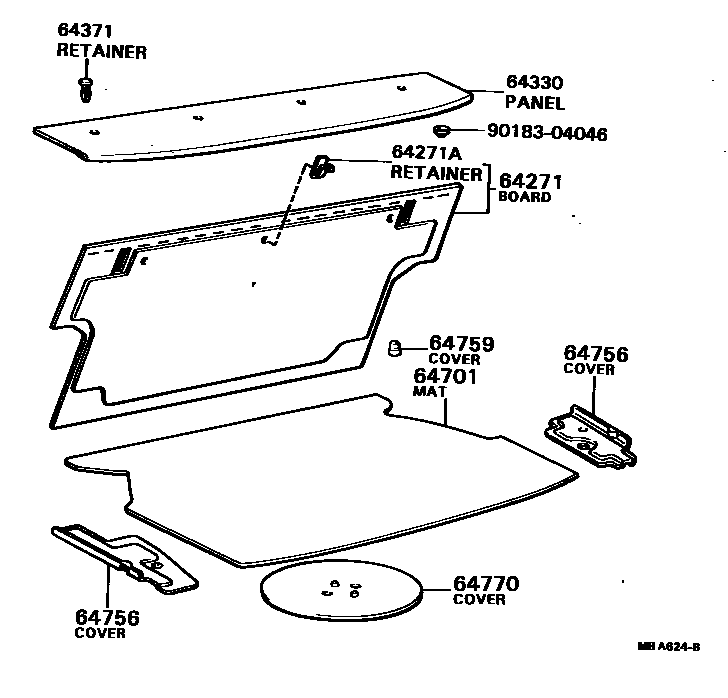

Toyota COROLLA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64271BOARD, ROOM PARTITION, NO.1
64271ARETAINER, ROOM PARTITION BOARD
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-12330-01iTE71..SED..GEN;KE70..SED..STD..ARL;KE70..SED..LHD..4F..EUG;KE70..SED..4F..(SA,SAA);KE70..SED..LHD..4F..GEN;KE70..SED..RHD..(EUR,GEN);KE70..SED..LHD..(2FC,3FC,5F)197908-198204
BLACK,BLACK,TRIM0#,2#
main64330-12330-04iKE70..SED..LHD..4F..EUG;KE70..SED..RHD..(EUR,GEN);CE70,TE71..SED..(EUR,GEN);KE70..SED..LHD..(2FC,3FC,5F);KE70..SED..LHD..4F..(GEN,SAA)197908-198305
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
main64330-12330-16iTE71..SED..GEN;KE70..SED..4F..EUG;KE70..SED..LHD..(3FC,5F);KE70..SED..RHD..(EUR,GEN);KE70..SED..LHD..4F..(GEN,SAA)198108-198204
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM0#,2#
SWEDEN SPEC,BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
SWEDEN SPEC,DARK BROWN,BROWN,TRIM4#
64371RETAINER, PACKAGE TRAY TRIM
DARK BROWN,DARK BROWN,TRIM4#
LIGHT BROWN,LIGHT BROWN,TRIM4#
BLACK,BLACK,TRIM0#,2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
64756COVER, LUGGAGE COMPARTMENT SIDE
RH
LH
64759COVER, SHOCK ABSORBER HEAD
GRAY,GRAY
64770COVER ASSY, SPARE WHEEL
9018304046
main90183-04046
9 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota COROLLA
This section contains 9 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota COROLLA. Key components include: BOARD, ROOM PARTITION, NO.1, RETAINER, ROOM PARTITION BOARD, PANEL ASSY, PACKAGE TRAY TRIM, RETAINER, PACKAGE TRAY TRIM, MAT SUB-ASSY, LUGGAGE COMPARTMENT.
