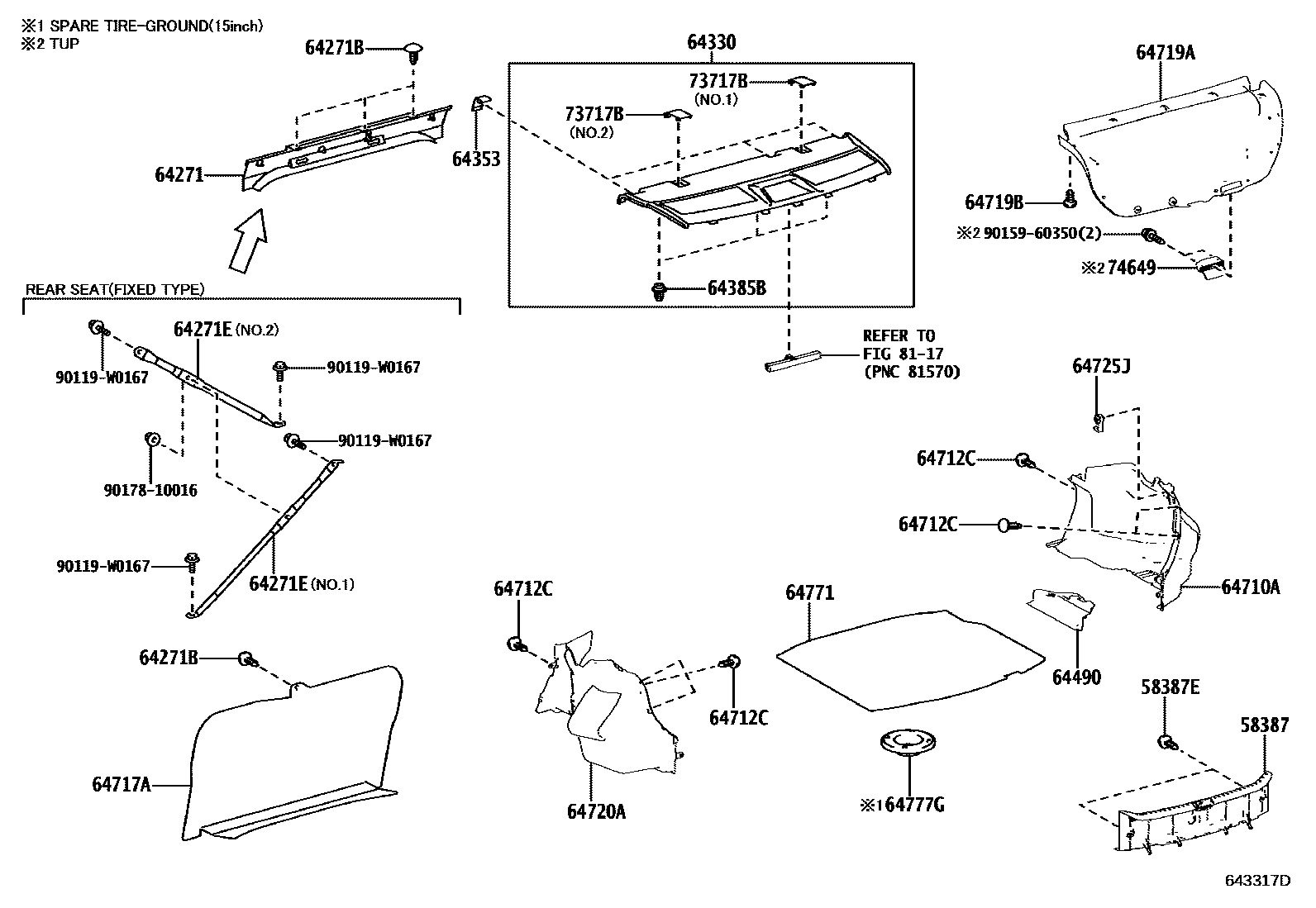

Toyota COROLLA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02221i201306-201505

main58387-02222i201505-201701

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0×2i201401-201610

BLACK,(J)

main90467-08186-C3×2i201610-201701

BLACK,(J)

main90467-W0007×2i201401-201701

(L)

64271BOARD, ROOM PARTITION, NO.1

main64271-02190i201306-201505

main64271-02191i201606-201901

main64271-02200i201912

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0×3i201401-201610

BLACK,(J)

main90467-08186-C3×3i201610-201701

BLACK,(J)

main90467-W0007×3i201306-201605

64271EPANEL, ROOM PARTITION

main64241-02230i201912

NO.1:REFER ILLUST.; SEAT COVER MATERIAL-FABRIC,NO.1:REFER ILLUST.

main64242-02230i201912

NO.2:REFER ILLUST.; SEAT COVER MATERIAL-FABRIC,NO.2:REFER ILLUST.

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02A70-C0i201401-201701

BLACK,TRIM0#,2#; BLACK,TRIM2#

main64330-02A90-C0i201306-201505

BLACK,TRIM0#,2#

main64330-02A90-C1supersedes 64330-02F40-C0i201505-201605

EU BLACK,TRIM0#,2#

main64330-02F50-C0i201701-201912

BLACK,TRIM0#,2#; BLACK,TRIM2#

main64330-02K00-C0supersedes 64330-02K10-C0i201912

BLACK,TRIM2#; BLACK,TRIM2#,3#; CHILD RESTRAINT SYSTEM-WITH,BLACK,TRIM2#; CHILD RESTRAINT SYSTEM-WITH,BLACK,TRIM2#,3#

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-02110-C0×3i201401-201506

BLACK,TRIM2#

main64353-02111×3i201506-201701

64385BCLIP

main90467-W0005×3i201306-201605

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-02091-C0i201401-201506

BLACK,TRIM2#

main64490-02092i201606-201808

main64490-02150i201611-201701

main64490-02160i201912

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02270-C0i201306-201605

BLACK,TRIM0#,2#

main64710-02280-C0i201401-201701

BLACK,TRIM0#,2#; BLACK,TRIM2#

main64710-02710-C0supersedes 64710-02730-C0i201912

BLACK,TRIM2#; BLACK,TRIM2#,3#; SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08186-C0×7i201401-201610

BLACK,(J)

main90467-08186-C3×7i201610-201701

BLACK,(J)

main90467-W0007×7i201912

(L)

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-02350i201912

SEAT COVER MATERIAL-FABRIC

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02180-C0i201306-201605

BLACK,TRIM0#,2#

main64719-02190-C0i201701-201912

BLACK,TRIM0#,2#; BLACK,TRIM2#

main64719-02190-C1i201912

BLACK,TRIM2#; BLACK,TRIM2#,3#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×13i201401-201610

BLACK,(J)

main90467-08186-C3×13i201912

BLACK,(J)

main90467-W0007×13i201701-201912

(L)

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02270-C0i201606-201901

BLACK,TRIM0#,2#

main64720-02290-C0i201401-201701

BLACK,TRIM0#,2#; BLACK,TRIM2#

main64720-02710-C0supersedes 64720-02730-C0i201912

BLACK,TRIM2#; BLACK,TRIM2#,3#; SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-33090-B0i201912

MD.GRAY,TRIM2#; MD.GRAY,TRIM2#,3#

64771COVER, SPARE WHEEL

main64771-02350-C0i201306-201605

BLACK,TRIM0#,2#

64777GCUSHION, SPARE WHEEL

main64777-02270i201306-201605

73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-02030-C1i201912

BLACK,TRIM2#,3#,NO.1:REFER ILLUST.; BLACK,TRIM2#,NO.1:REFER ILLUST.; CHILD RESTRAINT SYSTEM-WITH,BLACK,TRIM2#,3#,NO.1:REFER ILLUST.; CHILD RESTRAINT SYSTEM-WITH,BLACK,TRIM2#,NO.1:REFER ILLUST.

main73717-02040-C1supersedes 73717-02580-C0i201912

BLACK,TRIM2#,3#,NO.2:REFER ILLUST.; BLACK,TRIM2#,NO.2:REFER ILLUST.; CHILD RESTRAINT SYSTEM-WITH,BLACK,TRIM2#,3#,NO.2:REFER ILLUST.; CHILD RESTRAINT SYSTEM-WITH,BLACK,TRIM2#,NO.2:REFER ILLUST.

main73717-02300-C0i201306-201505

BLACK,TRIM0#,2#,NO.1:REFER ILLUST.

main73717-02300-C1i201505-201605

EU BLACK,TRIM0#,2#,NO.1:REFER ILLUST.

main73717-02310-C0i201306-201505

BLACK,TRIM0#,2#,NO.2:REFER ILLUST.

main73717-02310-C1supersedes 73717-02560-C0i201505-201605

EU BLACK,TRIM0#,2#,NO.2:REFER ILLUST.

main73717-02570-C0i201701-201912

BLACK,TRIM0#,2#,NO.1:REFER ILLUST.; BLACK,TRIM2#,NO.1:REFER ILLUST.

main73717-02580-C0i201701-201912

BLACK,TRIM0#,2#,NO.2:REFER ILLUST.; BLACK,TRIM2#,NO.2:REFER ILLUST.

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010-C0i201306-201605

BLACK,TRIM0#,2#

main74649-51010-C2i201606-201901

EU BLACK,TRIM0#,2#

8117CENTER STOP LAMP

→ Go to FIG 81-17

90119W0167

main90119-W0167

9015960350

main90159-60350

9017810016

main90178-10016

24 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota COROLLA

This section contains 24 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota COROLLA. Key components include: PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), BOARD, ROOM PARTITION, NO.1, CLIP(FOR ROOM PARTITION BOARD), PANEL, ROOM PARTITION.
