Toyota COROLLA — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12281BHANGER, ENGINE, NO.1

main12281-0Y090i9NRFTS..NRE210..ENTRY,MID201908

*662,*252

main12281-25030iM15..MZEA11202101-202304

*616

main12281-47060i9NRFTS..NRE210..HI202007-202304

*602

main12281-F2010iM15..MZEA17202306

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0T410i8ZRFXE..ZWE211201908-202304

main12305-0T480i8ZRFXE..ZWE219202305

main12305-0Y260i9NRFTS..NRE210..HI201908-202006

main12305-F3010iM15..MZEA11202101-202304

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0T060i8ZRFXE..ZWE211201908-202304

main12315-0T070i8ZRFXE..ZWE219202305

main12315-0Y080i9NRFTS..NRE210..HI201908-202304

*662,*252

main12315-15090iM15..MZEA11202101-202304

*616

main12315-47081i9NRFTS..NRE210..HI202007-202304

*602

main12315-F3030iM15..MZEA11202101-202304

*665

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iM15..MZEA11202101-202304

12363AROD, ENGINE MOVING CONTROL

main12363-0T160i8ZRFXE..ZWE211201908-202304

main12363-0T170i8ZRFXE..ZWE219202305

main12363-0Y280i9NRFTS..NRE210..HI202007-202304

main12363-F3010iM15..MZEA17202306

main12363-F3040iM15..MZEA11..6F202101-202304

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0T130i8ZRFXE..ZWE211201908-202304

main12364-0T170i8ZRFXE..ZWE219202305

main12364-0Y200i9NRFTS..NRE210..HI202007-202304

main12364-F3010iM15..MZEA17202306

main12364-F3040iM15..MZEA11..6F202101-202304

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T640i8ZRFXE..ZWE211201908-202304

main12372-0T690i8ZRFXE..ZWE219202305

main12372-0Y380i9NRFTS..NRE210..HI201908-202006

main12372-F3020iM15..MZEA11..6F202101-202304

main12372-F3060iM15..MZEA17202306

90105C0336

main90105-C0336

90105C0338

main90105-C0338

90105C0423

main90105-C0423

90105C0424

main90105-C0424

9011910A04

main90119-10A04

90119C0513

main90119-C0513

90119C0515

main90119-C0515

90119C0516

main90119-C0516

90119C0538

main90119-C0538

90119C0556

main90119-C0556

90178C0136

main90178-C0136

90178C0138

main90178-C0138

90178C0140

main90178-C0140

91552F1040

main91552-F1040

91552F1090

main91552-F1090

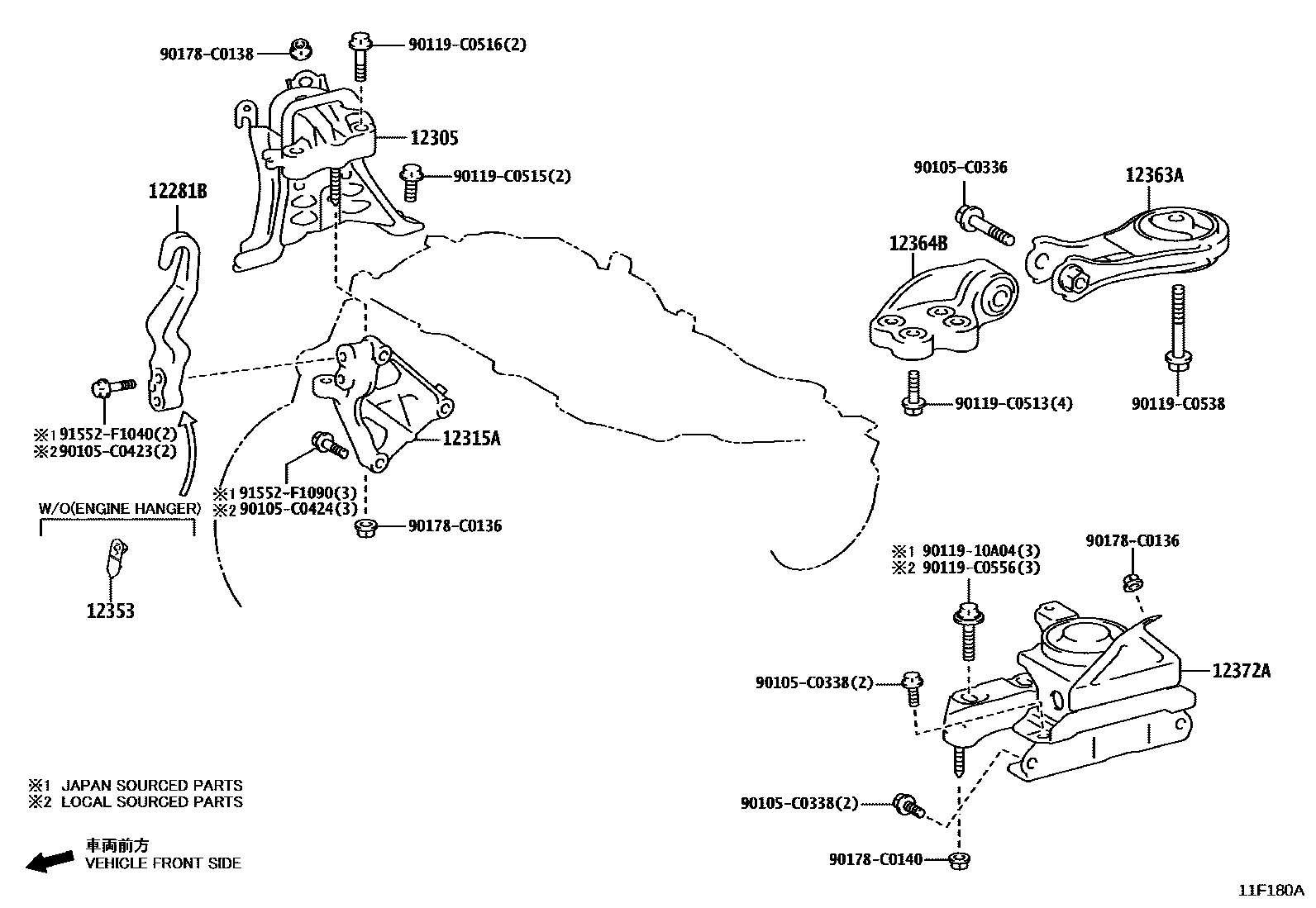

22 parts on this diagram · 5 diagrams in section
