Toyota COROLLA — METER

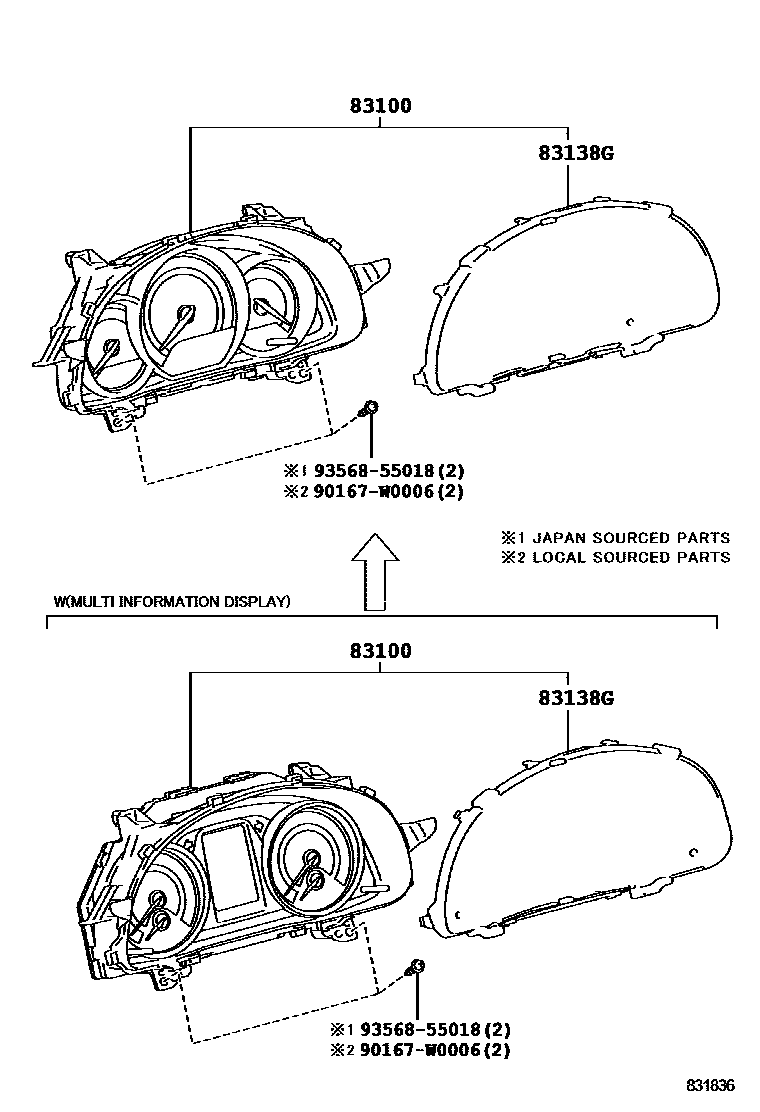

Parts diagram
83100METER ASSY, COMBINATION
main83800-0ZY30i201306-201504
main83800-0ZY31i201505-201701
main83800-0ZY90i201401-201701
main83800-F2300i201401-201701
main83800-F2M00i201606-201912
main83800-F2M10i201606-201912
main83800-F2M20i201606-201912
main83800-F2N20i201912
DENSO
main83800-F2R70i201912-202012
DENSO
main83800-F2R71i202101
DENSO
main83800-0ZX91supersedes 83800-F2N20i201401-201402
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)
main83800-0ZX92supersedes 83800-F2N20i201403-201701
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)
main83800-0ZY21supersedes 83800-F2N10i201401-201402
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)
main83800-0ZY22supersedes 83800-F2N10i201403-201701
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)
main83800-0ZY51i201306-201402
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)
main83800-0ZY52supersedes 83800-F2N30i201403-201605
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)
main83800-F2400supersedes 83800-F2M20i201306-201504
SPEED LIMITER CONTROL-WITH
main83800-F2401supersedes 83800-F2M20i201505-201605
SPEED LIMITER CONTROL-WITH
main83800-F2410supersedes 83800-F2N30i201306-201605
SPEED LIMITER CONTROL-WITH
main83800-F2451supersedes 83800-F2N30i201306-201402
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&SPEED LIMITER CONTROL-WITH
main83800-F2452supersedes 83800-F2N30i201403-201605
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&SPEED LIMITER CONTROL-WITH
main83800-F2P00supersedes 83800-F2N10i201606-201912
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)
main83800-F2P10supersedes 83800-F2N20i201606-201901
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)
main83800-F2P20supersedes 83800-F2N30i201606-201912
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)
83138GGLASS, COMBINATION METER
main83852-0Z250i201912
main83852-0Z410i201306-201605
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)&SPEED LIMITER CONTROL-WITH
main83852-F2N60i201606-201901
SPEEDOMETER-KM/H & WITH(MULTI INFORMATION DISPLAY)
90167W0006
main90167-W0006
9356855018
main93568-55018

4 parts on this diagram · 1 diagram in section
