Toyota COROLLA — METER

83100METER ASSY, COMBINATION

main83800-F2730i201908-202007

DENSO

main83800-F2731i202007-202306

DENSO

main83800-F2732i202307-202502

DENSO

main83800-F2R50i202306-202307

VISTEON

main83800-F2R51i202308-202309

VISTEON,*614

main83800-F2R52i202310-202402

VISTEON,*614

main83800-F2R53i202403-202404

VISTEON,*614

main83800-F2R54i202405-202411

VISTEON,*614

main83800-F2R55i202412

*614

main83800-FE481i202101-202111

DENSO

main83800-FE481i202101-202111

DENSO,GR SPORT&HEADLAMP-LED & WITH(*AHB)

main83800-FE482i202111-202304

DENSO

main83800-FE520i201908-202007

DENSO

main83800-FE521i202007-202104

DENSO

main83800-FE522i202104-202110

DENSO

main83800-FE523i202110-202304

DENSO

main83800-FE570i201908-202007

DENSO

main83800-FE571i202007-202103

DENSO

main83800-FE572i202103-202110

DENSO

main83800-FE573i202110-202304

DENSO

main83800-FEE50i201908-202006

DENSO

main83800-FEE51i202007-202304

DENSO

main83800-FEE61i202101-202111

DENSO

main83800-FEE62i202111-202304

DENSO

main83800-FEG00i202306-202307

VISTEON

main83800-FEG01i202308-202309

VISTEON,*614

main83800-FEG02i202310-202402

VISTEON,*614

main83800-FEG03i202403-202404

VISTEON,*614

main83800-FEG04i202405-202411

VISTEON,*614

main83800-FEG05i202412

*614

main83A00-02060i202305-202307

VISTEON,*614

main83A00-02061i202308-202309

VISTEON,*614

main83A00-02062i202310-202402

VISTEON,*614

main83A00-02063i202403-202404

VISTEON,*614

main83A00-02064i202405-202411

VISTEON,*614

main83A00-02065i202412

*614

main83A00-02070i202306-202307

DENSO,*614

main83A00-02071i202308-202404

DENSO,*614

main83A00-02072i202405-202411

DENSO,*614

main83A00-02073i202412

DENSO,*614

main83A00-02080i202305-202307

DENSO,*614

main83A00-02081i202308-202404

DENSO,*614

main83A00-02082i202405-202411

DENSO,*614

main83A00-02083i202412

DENSO,*614

83138GGLASS, COMBINATION METER

main83852-02050i202305

main83852-FE340i201908-202304

main83852-FE380i201908-202304

main83A52-02D70i202305

90167C0013

main90167-C0013

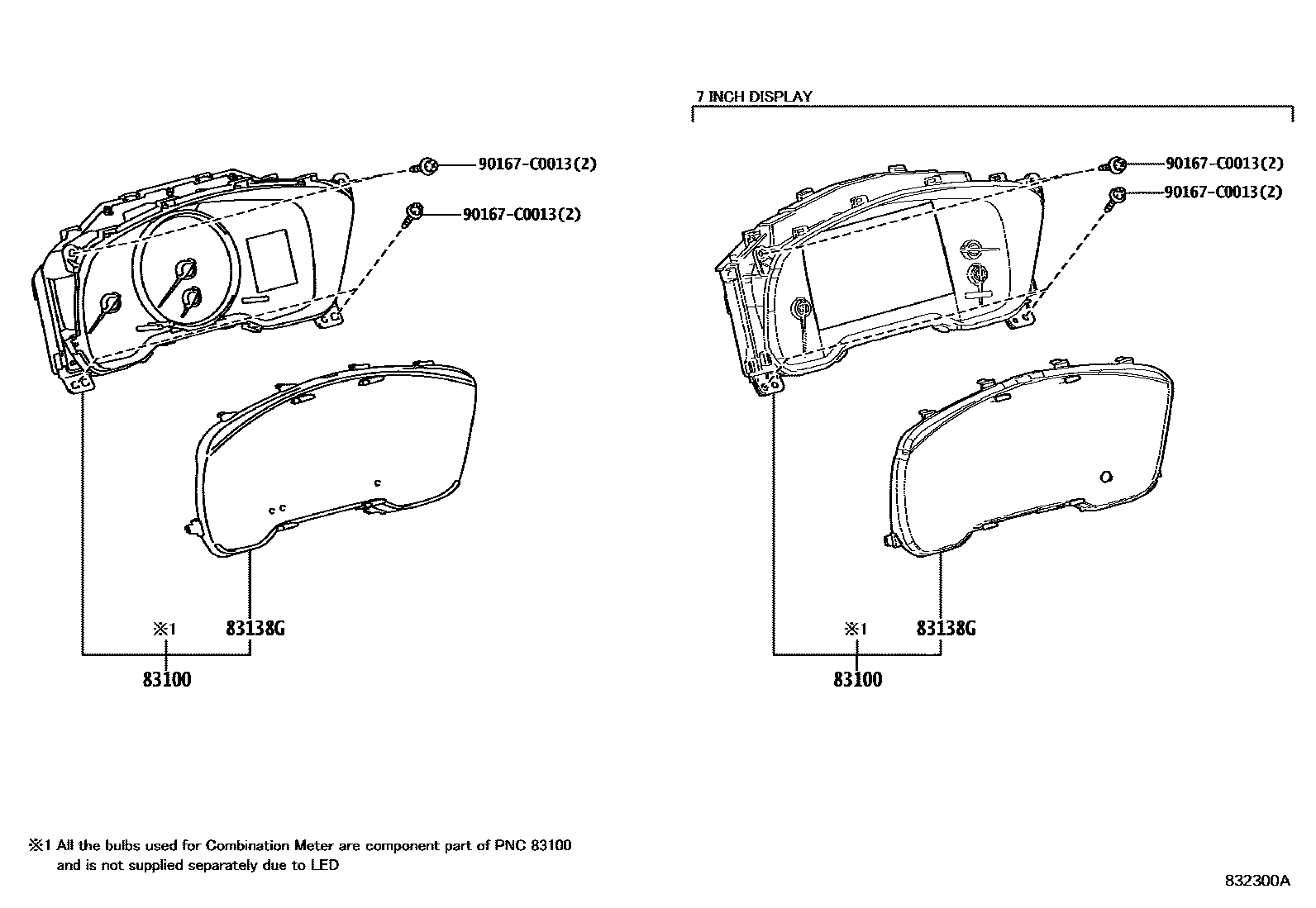

3 parts on this diagram · 2 diagrams in section

METER for Toyota COROLLA

This section contains 6 genuine Toyota parts for the METER system of the Toyota COROLLA. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, CUSHION, COMBINATION SPEEDOMETER, NO.2.
