Toyota COROLLA — METER

0001 1 0002 1

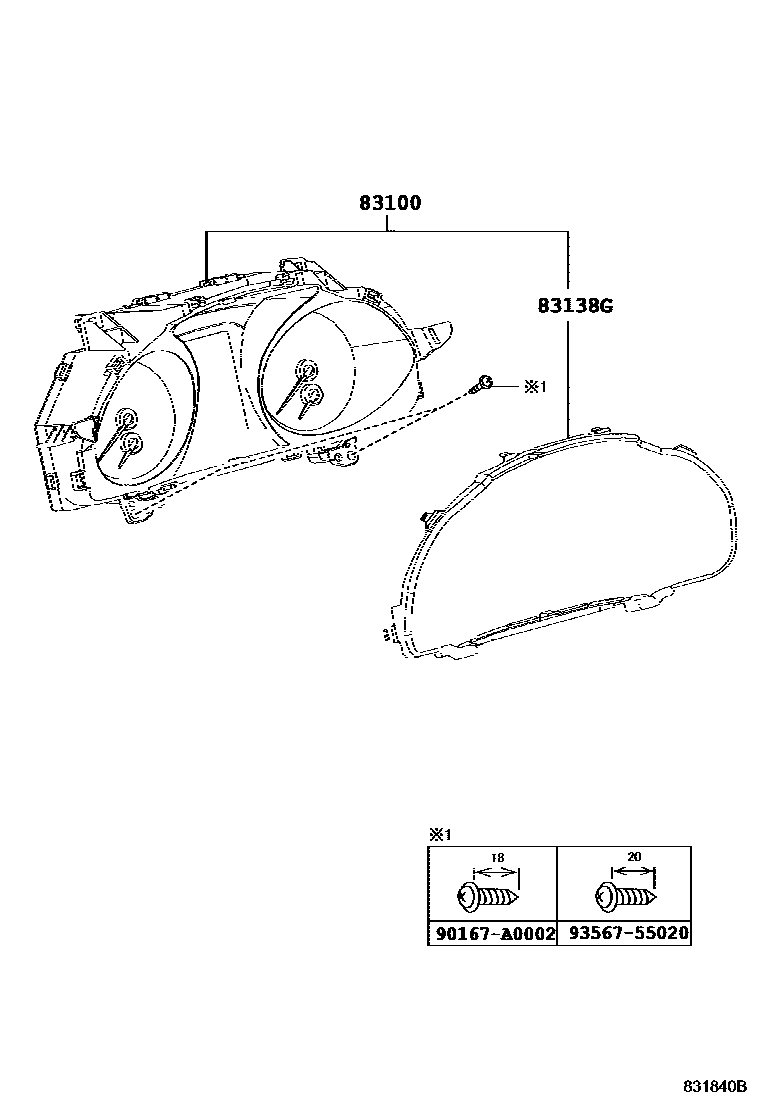

83100METER ASSY, COMBINATION

main83800-0ZX20iZRE172..(LE,STD)..MXC201308-201408

main83800-0ZX60iZRE172..S..MXC201308-201408

main83800-0ZX70iZRE172..S..GEN201404-201408

main83800-0ZX71iZRE172..S..GEN201408-201409

main83800-0ZX72iZRE172..S..GEN201409-201608

main83800-F2370iZRE172..(LE,STD)..GEN201404-201408

main83800-F2371iZRE172..(LE,STD)..GEN201408-201608

main83800-F2G00iZRE172..(LE,STD)..MXC201408-201608

main83800-F2G10iZRE172..S..MXC201408-201608

main83800-F2P90iZRE172..S..MXC201608

main83800-F2Q00iZRE172..S..GEN201608-201708

main83800-F2Q10iZRE172..(LE,STD)..MXC201608

main83800-F2Q30iZRE172..(LE,STD)..GEN201608-201708

main83800-F2V00iZRE172..S..GEN201708

main83800-F2V20iZRE172..(LE,STD)..GEN201708

main83800-F2A40iZRE172..STD..MXC201404-201408

MEXICO DECONTENT

main83800-F2A41iZRE172..STD..MXC201408-201608

MEXICO DECONTENT

main83800-F2D00iZRE172..CVT..LE201404-201408

SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P)

main83800-F2D01iZRE172..CVT..LE..GEN201408-201608

SRS AIR BAG-F+CSA+KNEE(D)+CUSHION(P)

main83800-F2Q20iZRE172..STD..MXC201608-201708

MEXICO DECONTENT

main83800-F2Q40iZRE172..CVT..LE..GEN201608-201708

SRS AIR BAG-W(*CUSA, *DRP, CUSHION, KNEE & SIDE)

83138GGLASS, COMBINATION METER

main83852-0ZX00iZRE172..4FC..(LE,STD)201308-201408

main83852-0ZX50iZRE172..(CVT,MTM)..S201308-201608

main83852-F2P70iZRE172..S201608

main83852-F2Q10iZRE172..LE,STD201608

90167A0002

main90167-A0002

9356755020

main93567-55020

4 parts on this diagram · 2 diagrams in section
