Toyota COROLLA — MANIFOLD

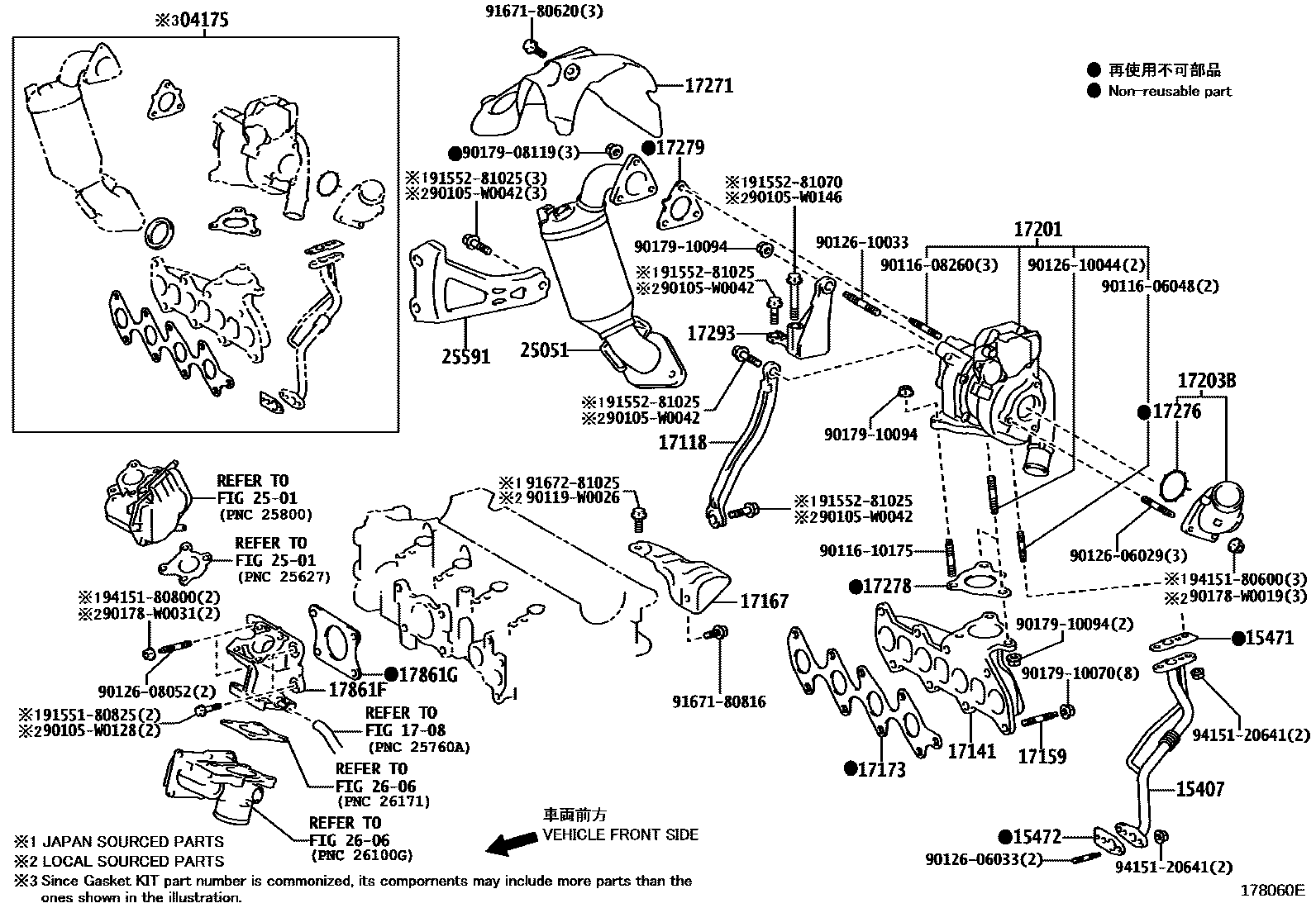

Parts diagram

04175GASKET KIT, TURBOCHARGER

main04175-33070i201306-201409

main04175-33071i201409-201605

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-0N010i201606

(L)

main15407-33021i201504-201605

(J)

15471GASKET, TURBO OIL INLET

main15471-0N010i201504-201605

main15471-33010i201306-201504

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-33020i201306-201605

1708VACUUM PIPING

→ Go to FIG 17-08

17118STAY, MANIFOLD

main17118-0T020i201606-201901

(L)

main17118-33040i201606-201901

main17118-37010i201606-201901

(J)

main17118-47010i201606-201607

main17118-47011i201608

17141MANIFOLD, EXHAUST

main17141-33050i201306-201504

main17141-33080i201504-201605

main17141-37130i201912

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i201401-201701

NO.1

main90126-08052×5i201606-201912

NO.2

main90126-10033×8i201306-201701

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0T120i201606-201901

(L)

main17167-33030i201606-201901

main17167-37110i201606-201912

(J)

main17167-47011i201401-201701

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0T020i201606-201901

(L)

main17173-33030i201306-201408

main17173-33031i201606

main17173-37010i201606-201901

(J)

main17173-47021i201606

17201TURBOCHARGER SUB-ASSY

main17201-0N042i201606

17203BELBOW SUB-ASSY, COMPRESSOR INLET

main17203-0N010i201606-201901

(L)

main17203-33010i201306-201504

17271INSULATOR, TURBO, NO.1

main17271-33060i201606

17276GASKET, COMPRESSOR INLET

main17276-33010i201306-201701

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-33010i201306-201605

17279GASKET, TURBINE OUTLET ELBOW

main17279-27020i201606-201901

17293STAY, TURBOCHARGER

main17293-0N010i201606-201901

(L)

main17293-33010i201306-201404

17861FCONNECTOR, INTAKE AIR

main17861-0N010i201504-201701

(L)

main17861-33080i201504-201701

(J)

17861GGASKET, INTAKE AIR CONNECTOR

main26171-33050i201306-201605

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-33060i201606-201901

*114=TOYOTA/*207/Y

main25051-47070i201401-201410

*114=TOYOTA/47070/Y

main25051-47130i201606-201808

*114=TOYOTA/47130/Y

25591BRACKET, MANIFOLD SUPPORT

main25591-33030i201606

2606VENTURI

→ Go to FIG 26-06

90105W0042

main90105-W0042

90105W0128

main90105-W0128

90105W0146

main90105-W0146

9011606048

main90116-06048

9011608260

main90116-08260

9011610175

main90116-10175

90119W0026

main90119-W0026

9012606029

main90126-06029

9012606033

main90126-06033

9012608052

main90126-08052

9012610033

main90126-10033

9012610044

main90126-10044

90178W0019

main90178-W0019

90178W0031

main90178-W0031

9017908119

main90179-08119

9017910070

main90179-10070

9017910094

main90179-10094

9155180825

main91551-80825

9155281025

main91552-81025

9155281070

main91552-81070

9167180620

main91671-80620

9167180816

main91671-80816

9167281025

main91672-81025

9415120641

main94151-20641

9415180600

main94151-80600

9415180800

main94151-80800

49 parts on this diagram · 4 diagrams in section

MANIFOLD for Toyota COROLLA

This section contains 70 genuine Toyota parts for the MANIFOLD system of the Toyota COROLLA. Key components include: GASKET KIT, TURBOCHARGER, JOINT, ENGINE COVER, PIPE SUB-ASSY, TURBO OIL INLET, GASKET, TURBO OIL INLET, GASKET, TURBO OIL OUTLET, NO.1.
