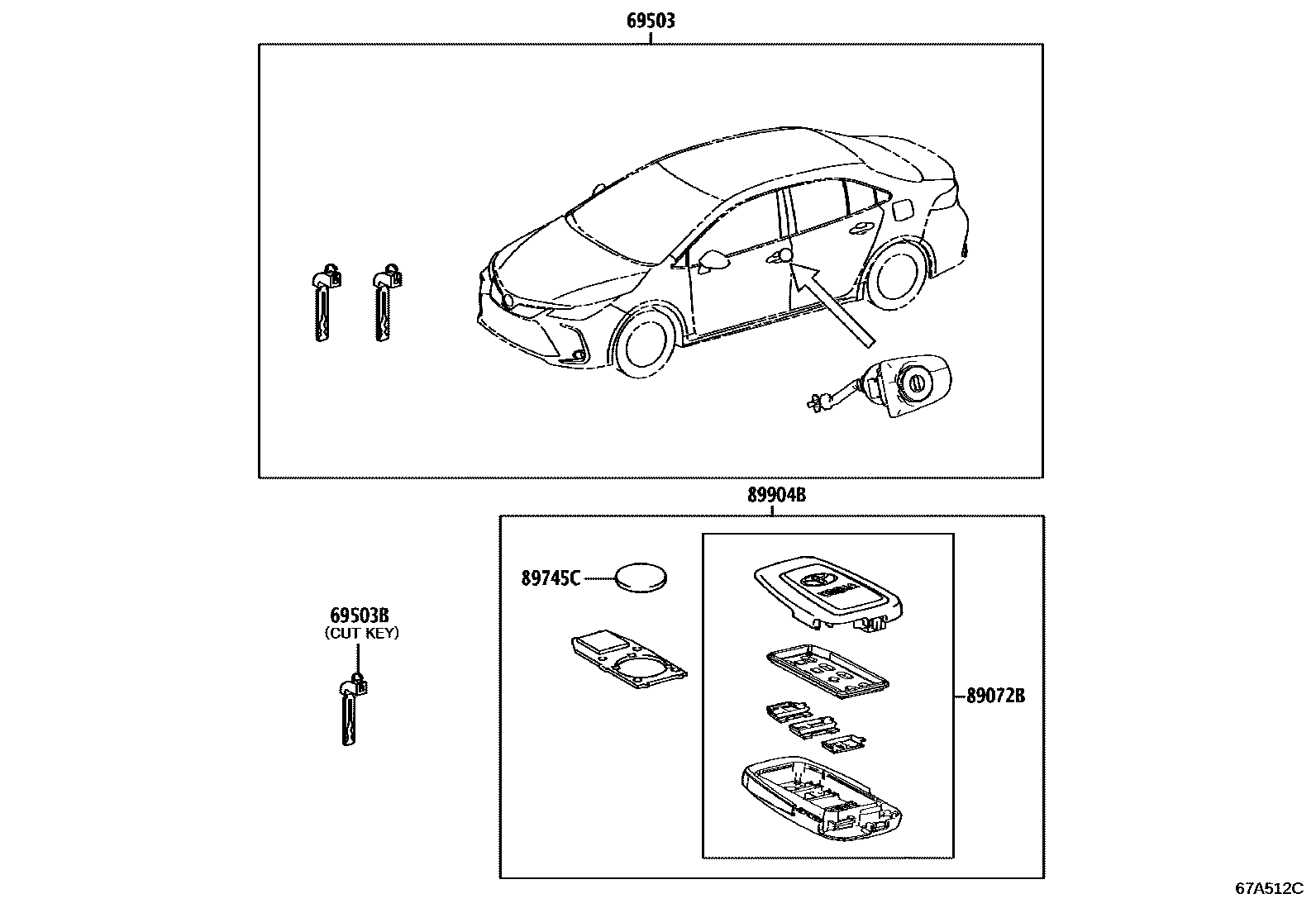

Toyota COROLLA — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-02K10i202305

main69005-02L90supersedes 89704-02F30i201908

main89704-02F30i202306

69503BKEY, CUT

main69515-0R160i202305

MASTER KEY,W(*68)

main69515-F4060i201908-202006

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-02850×2i202007-202304

main89072-02860×2i201908-202304

main89072-02C20×2i202406

main89072-02C30×2i202305-202406

89745CBATTERY, TRANSMITTER

main89745-12020i202305

CR2032,DENSO

main89745-50020i202007-202304

CR2032

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-02230i201908-202304

SMART ENTRY-WITHOUT & WITH(PUSH START SWITCH)

main8990H-02240i201908-202304

main8990H-02430i202306-202310

main8990H-02431i202406

main8990H-02440i202305-202310

main8990H-02441i202310-202406

5 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota COROLLA

This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA. Key components include: CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK, KEY, CUT, TRANSMITTER ASSY, DOOR CONTROL (CUT KEY).
