Toyota COROLLA — LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-02270i201308-201408

main69052-02280i201608

STARTING SYSTEM-PUSH(WITH/SMART)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0R050i201608

69503CYLINDER SET, LOCK

main69005-02A30i201308-201408

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-02560supersedes 89070-02561i201404-201505

LATIN AMERICA PKG&STARTING SYSTEM-PUSH(WITH/SMART)

main89070-02880i201308-201508

STARTING SYSTEM-PUSH(WITH/SMART)

main89070-02882i201608

main89070-02561i201506-201608

LATIN AMERICA PKG&STARTING SYSTEM-PUSH(WITH/SMART)

main89070-02A50i201404-201508

DOMINICA SPEC; MEXICO DECONTENT; PANAMA SPEC

main89070-02A52i201508-201608

DOMINICA SPEC; MEXICO DECONTENT; PANAMA SPEC

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-02130×2i201308-201408

STARTING SYSTEM-PUSH(WITH/SMART)

main89071-02131×2i201608

main89071-02150×2i201404-201608

LATIN AMERICA PKG&STARTING SYSTEM-PUSH(WITH/SMART)

main89071-02140×2i201404-201508

DOMINICA SPEC; MEXICO DECONTENT; PANAMA SPEC

main89071-02141×2i201508-201608

DOMINICA SPEC; MEXICO DECONTENT; PANAMA SPEC

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-02560i201308-201508

STARTING SYSTEM-PUSH(WITH/SMART)

main89072-02590supersedes 89072-02591i201404-201505

LATIN AMERICA PKG&STARTING SYSTEM-PUSH(WITH/SMART)

main89072-02591i201508-201608

STARTING SYSTEM-PUSH(WITH/SMART)

main89072-02580i201404-201508

DOMINICA SPEC; MEXICO DECONTENT; PANAMA SPEC

8907ASWITCH SET, TRANSMITTER

main8907A-33030×2i201308-201608

STARTING SYSTEM-PUSH(WITH/SMART)

89745ABATTERY, TRANSMITTER

main89745-48030i201508-201608

CR2016; CR2016,DOMINICA SPEC; CR2016,PANAMA SPEC; CR2016,STARTING SYSTEM-PUSH(WITH/SMART)

89751ACOVER, TRANSMITTER HOUSING

main89751-02020×2i201308-201408

STARTING SYSTEM-PUSH(WITH/SMART)

main89751-42090×2i201508-201608

STARTING SYSTEM-PUSH(WITH/SMART)

main89751-0R050×2i201404-201508

DOMINICA SPEC; MEXICO DECONTENT; PANAMA SPEC

89752ACASE, TRANSMITTER HOUSING

main89752-0R040supersedes 89752-0R041i201308-201408

STARTING SYSTEM-PUSH(WITH/SMART)

main89752-0R041i201508-201608

STARTING SYSTEM-PUSH(WITH/SMART)

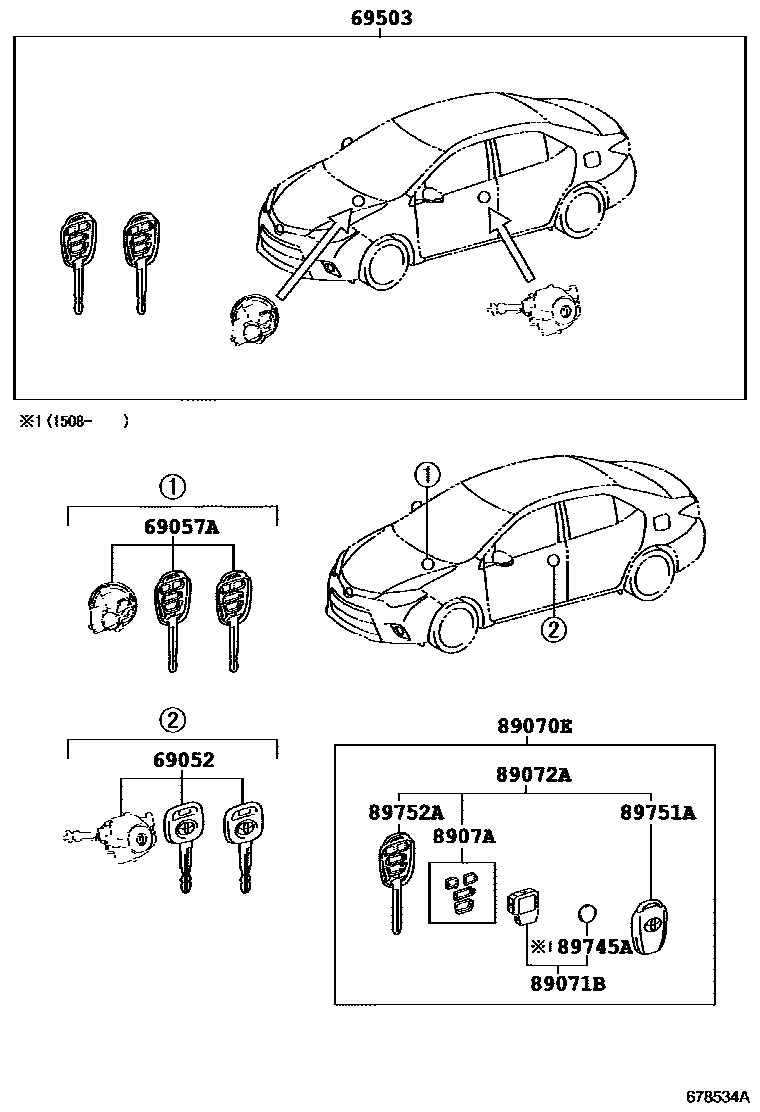

10 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota COROLLA

This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA. Key components include: CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK, KEY, BLANK, KEY, CUT.
