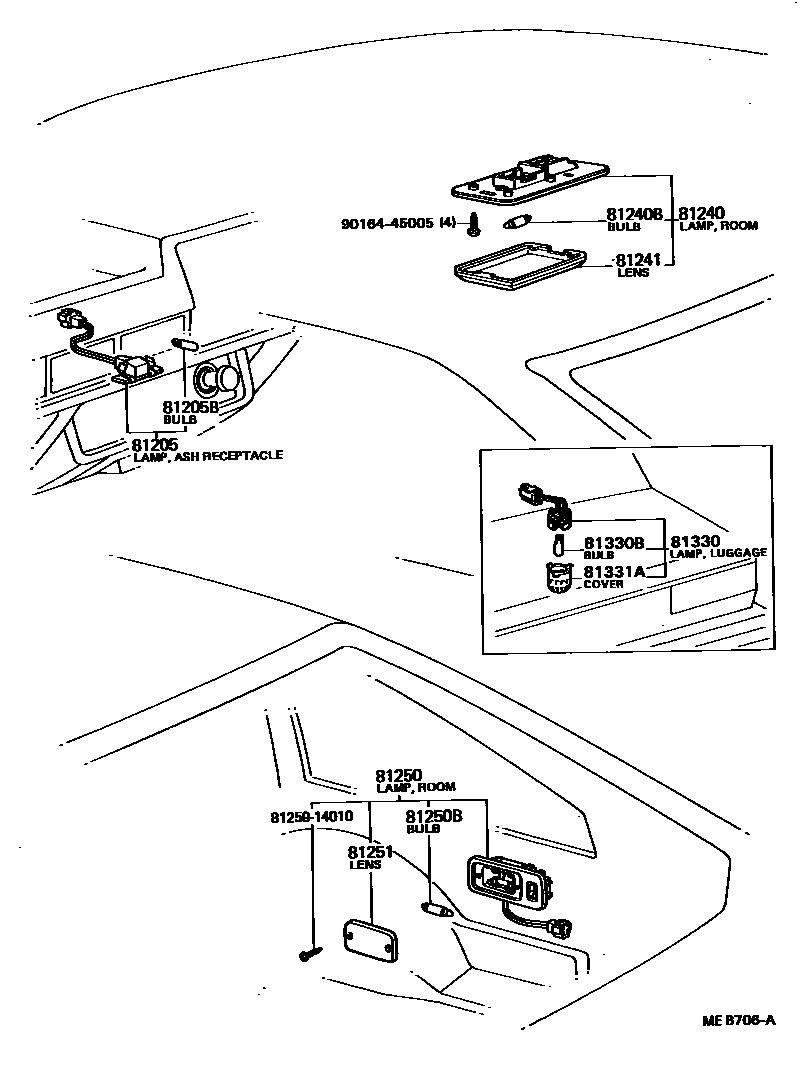

Toyota COROLLA — INTERIOR LAMP

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81205-12040iKE70,TE7#197908-197910

sub81205-12041

main81205-12041iAE71,CE70,KE70,TE7#197910-198707

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iAE71,CE70,KE70,TE7#197908-198707

12V 1.2W W/O SOCKET,12V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-10030-18iAE71..STD198309-198406

IVORY,IVORY

sub81240-10030

main81240-16010-08iKE70,TE7#..(CP,LB,SED)..(EUR,GEN)197908-198208

IVORY,IVORY

sub81240-16010

sub81240-22060

main81240-16010-18iTE72..ARL198208-198305

IVORY,IVORY

sub81240-16010

sub81240-22060

main81240-20060-08iKE70..DV,WG197908-198208

HANGING CLOTH TYPE,IVORY,IVORY

sub81240-20060

sub81240-22050

main81240-20060-08iKE70,TE7#..SA198007-198208

IVORY,IVORY

sub81240-20060

sub81240-22050

main81240-20060-18iKE70,TE71..(DV,LB,SED,WG)..GEN198208-198305

HANGING CLOTH TYPE,IVORY,IVORY

sub81240-20060

sub81240-22050

main81240-20060-18iKE70..ARL198208-198707

IVORY,IVORY

sub81240-20060

sub81240-22050

81240BBULB, ROOM LAMP, NO.1

main90981-11015iAE71..STD198309-198406

12V 10W,12V 10W

sub99132-12100

main99132-12100iAE71,CE70,KE70,TE7#197908-198707

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-10030iAE71..STD198309-198406

main81241-16010iTE71..(CP,LB,SED)..(EUR,GEN);CE70,KE70,TE72..(CP,LB,SED)..(DX,GL,STD)..(EUR,GEN)197908-198305

sub81241-20060

main81241-20060iKE70..ARL197908-198305

HANGING CLOTH TYPE

main81241-20060iKE70,TE71;AE71,CE70,TE72..3FC,4FC,5F198007-198707

81250LAMP ASSY, ROOM, NO.2

main81250-12020-01iKE70,TE7#..CP,LB197908-198406

BLACK,BLACK,TRIM0#,2#

sub81250-12020

main81250-12020-04iKE70,TE7#..CP,LB197908-198406

BLUE,BLUE,TRIM8#

sub81250-12020

main81250-12020-06iKE70,TE7#..CP,LB197908-198406

DARK BROWN,BROWN,TRIM4#

sub81250-12020

81250BBULB, ROOM LAMP, NO.2

main99132-13050iKE70,TE7#..CP,LB197908-198406

12V 5W,12V 5W

81251LENS, ROOM LAMP, NO.2

main81231-14010iKE70,TE7#..CP,LB198006-198406

sub81231-30010

main81231-30010iKE70,TE7#..CP,LB197908-198006

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22030iKE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198204-198502

sub81330-22031

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iKE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198204-198502

12V 5W,12V 5W

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iKE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198204-198502

8125914010

main81259-14010

9016445005

main90164-45005

13 parts on this diagram · 1 diagram in section
