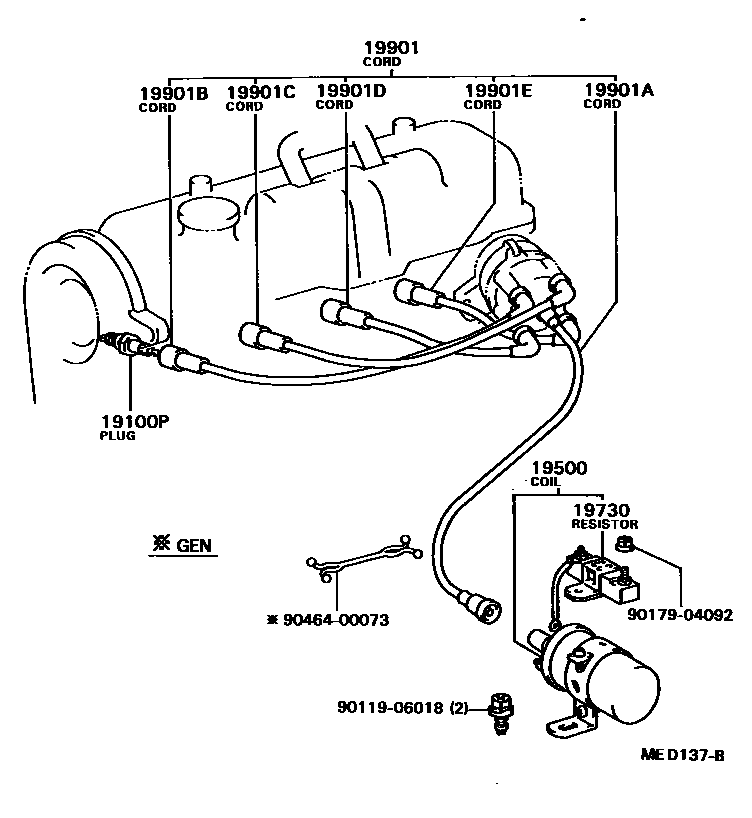

Toyota COROLLA — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19100PPLUG, SPARK

main90919-01056i4KC..KE70..ARL198108-198410

W14EX-U,W14EX-U

main90919-01059i2T,2TB..TE71..GEN197908-198707

W16EX-U,W16EX-U

sub90919-01064

main90919-01064i4K#..KE70..EUR,SA197908-198707

W16EXR-U,W16EXR-U

main90919-01065i4KC..KE70..EUR198108-198707

W14EXR-U,W14EXR-U

main90919-01084i2TG..TE71197908-198305

W20EXR-U,W20EXR-U

19500COIL ASSY, IGNITION

main90919-02083i2T,2TB,3TC..TE7#..EUG,SDN198108-198305

main90919-02083i2T,2TB..TE71..RHD..GEN198108-198203

HONG KONG SPEC

main90919-02087i4A..AE71..SA198305-198707

main90919-02098i4KC..KE70..2D..ARL197908-198401

main90919-02103i3TC..TE72197908-198305

main90919-02116i2T,2TB,3T..TE7#..SA197908-198204

main90919-02118i4K#..KE70..EUR,SA197908-198707

main90919-02129i4K#..KE70..EUR,SA198003-198204

main90919-02151i4A..AE71..GEN198508-198707

main90919-02161i4K..KE70..GEN,SA198401-198707

19730RESISTOR, IGNITION COIL

main90919-04027i2T,2TB,3TC..TE7#197908-198401

main90919-04032i2TG..TE71197908-198112

sub90919-04033

main90919-04033i4A#..AE71198108-198707

sub90919-04027

main90919-04035i2T,2TB..TE71..RHD..GEN198108-198203

HONG KONG SPEC

main90919-04035i2T,2TB,3TC..TE7#..EUG,SDN198108-198305

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21070i4KC..KE70..2D..ARL197908-198707

main90919-21178i4K..KE70..EUG198005-198108

sub90919-21273

main90919-21185i3TC..TE72197908-198305

main90919-21187i2T,3T..TE7#197908-198204

sub90919-21287

main90919-21191i2TB..TE71197908-198204

sub90919-21287

main90919-21219i2TG..TE71197908-198305

main90919-21256i4KC..KE70197908-198005

sub90919-21273

main90919-21273i4KC..KE70198005-198707

main90919-21287i2T,2TB..TE71..EUR,GEN,SAA198108-198502

main90919-21329i4K..KE70..SA198305-198707

main90919-21331i4A#..AE71198305-198707

main90919-21383i4A..AE71..GEN198508-198707

19901ACORD, COIL RESISTIVE

main90919-13048i4K#..KE70..ARL,GEN,SA,SAA197908-198707

main90919-13084i4KC..KE70197908-198707

main90919-13097i4K..KE70..EUG198005-198108

sub90919-13084

main90919-13105i2T,2TB,3T#..TE7#197908-198502

main90919-13125i2TG..TE71197908-198305

main90919-13170i4A#..AE71198305-198707

main90919-13258i4A..AE71..GEN198508-198707

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90072-76848i2TG..TE71197908-198305

main90919-12084i4K#..KE70..ARL,GEN,SAA197908-198707

main90919-12243i4K..KE70..SA198005-198707

main90919-12252i3TC..TE72197908-198305

main90919-12265i2T,2TB,3T..TE7#197908-198502

main90919-12506i4A#..AE71198305-198707

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90072-76849i2TG..TE71197908-198305

main90919-12083i4K#..KE70..ARL,GEN,SAA197908-198707

main90919-12242i4K#..KE70..EUR198005-198707

main90919-12253i3TC..TE72197908-198305

main90919-12266i2T,2TB,3T..TE7#197908-198204

sub90919-12409

main90919-12409i2T,2TB,3T..TE7#198108-198502

main90919-12507i4A#..AE71198305-198707

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90072-76850i2TG..TE71197908-198305

main90919-12083i4K#..KE70..ARL,GEN,SA,SAA197908-198707

main90919-12242i4K..KE70..SA198005-198707

main90919-12254i3TC..TE72197908-198305

main90919-12267i2T,2TB,3T..TE7#197908-198502

main90919-12508i4A#..AE71198305-198707

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90072-76851i2TG..TE71197908-198305

main90919-12084i4K#..KE70..ARL,GEN,SA,SAA197908-198707

main90919-12243i4K..KE70..SA198005-198707

main90919-12255i3TC..TE72197908-198305

main90919-12268i2T,3T..TE7#197908-198204

sub90919-12410

main90919-12269i2TB..TE71197908-198305

sub90919-12410

main90919-12410i2T,2TB..TE71..EUR,GEN,SAA198108-198502

main90919-12509i4A#..AE71198305-198707

9011906018

main90119-06018

9017904092

main90179-04092

9046400073

main90464-00073

12 parts on this diagram · 5 diagrams in section
