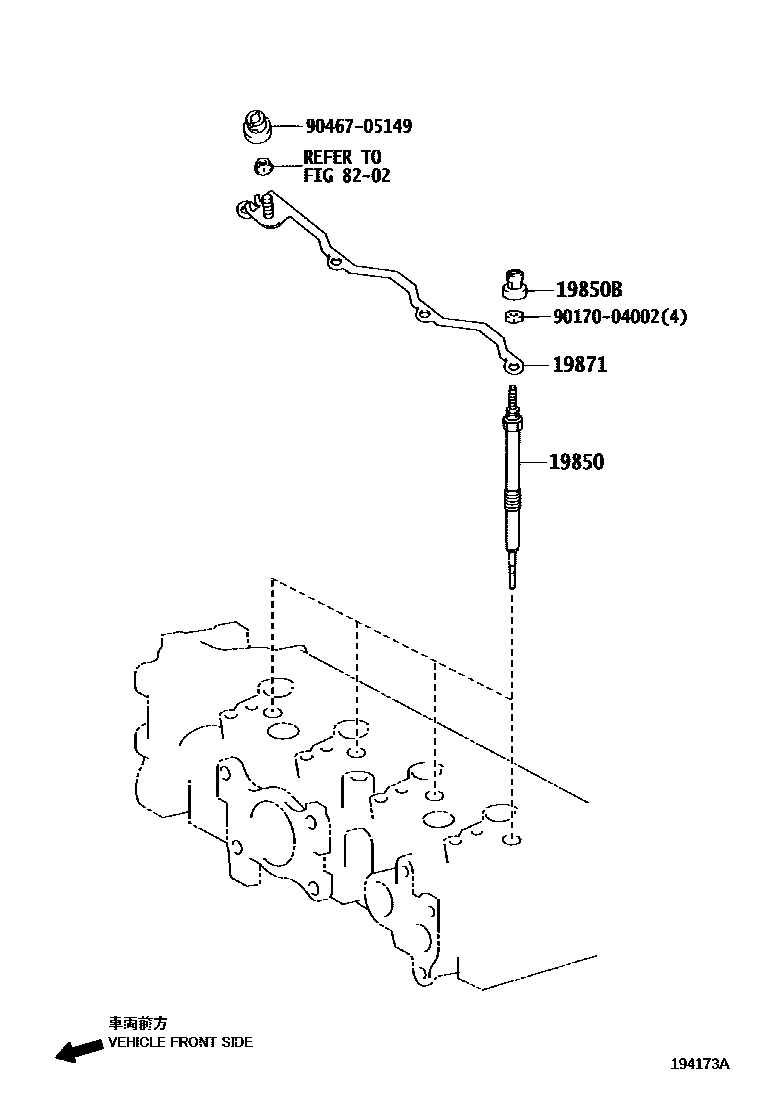

Toyota COROLLA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19850PLUG ASSY, GLOW

main19850-33020201306-201901

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024201306-201901

19871CONNECTOR, GLOW PLUG NO.1

main19871-33020201306-201901

8202WIRING & CLAMP

→ Go to FIG 82-02

9017004002

main90170-04002

9046705149

main90467-05149

6 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA

This section contains 11 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COIL, IGNITION, NO.1, PLUG ASSY, GLOW, GROMMET, SCREW(FOR GLOW PLUG).
