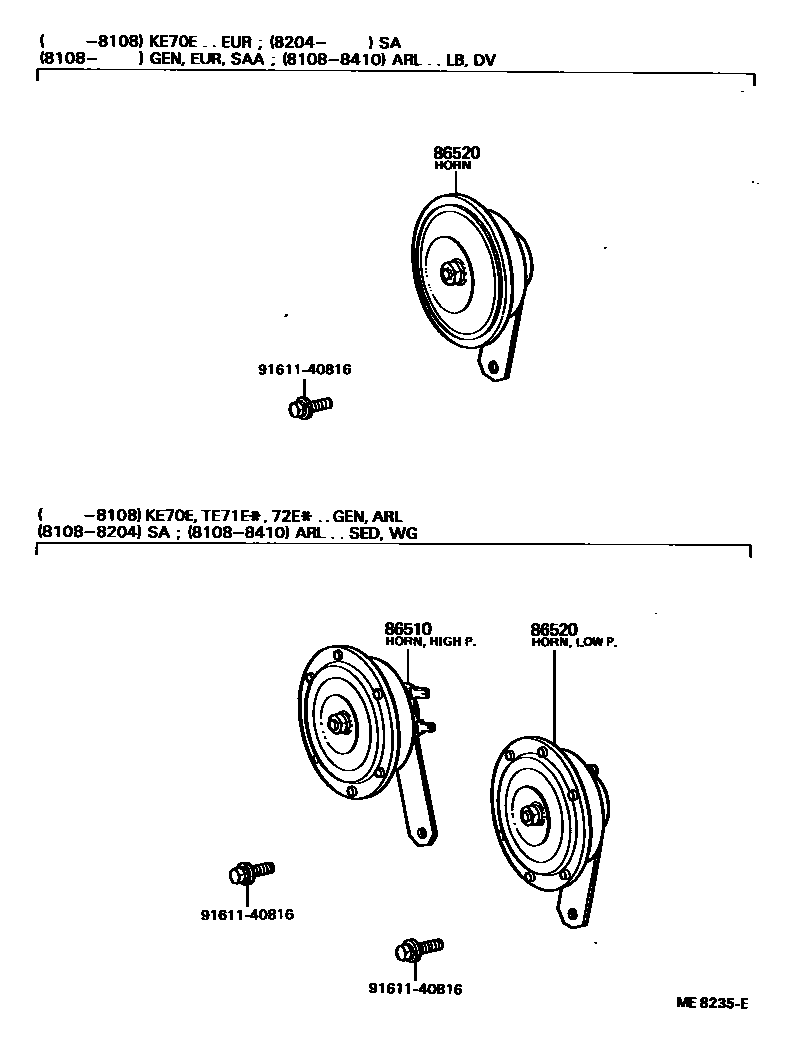

Toyota COROLLA — HORN

86510HORN ASSY, HIGH PITCHED

main86510-12170i198108-198305

DENSO

main86510-12180i197908-198108

MARUKO

main86510-12210i197908-198108

86520HORN ASSY, LOW PITCHED

main86520-12150i198108-198305

main86520-12170i198108-198305

DENSO

main86520-12180i198108-198204

MARUKO

main86520-12210i197908-198302

main86520-12211i198302-198305

main86520-12280i198111-198305

MIDDLE EAST SPEC

main86520-12360i198305-198404

main86520-12380i198404-198508

main86520-12381i198508-198707

main86520-12390i198305-198707

MIDDLE EAST SPEC

9161140816

main91611-40816

3 parts on this diagram · 1 diagram in section

HORN for Toyota COROLLA

This section contains 3 genuine Toyota parts for the HORN system of the Toyota COROLLA. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
