Toyota COROLLA — HORN

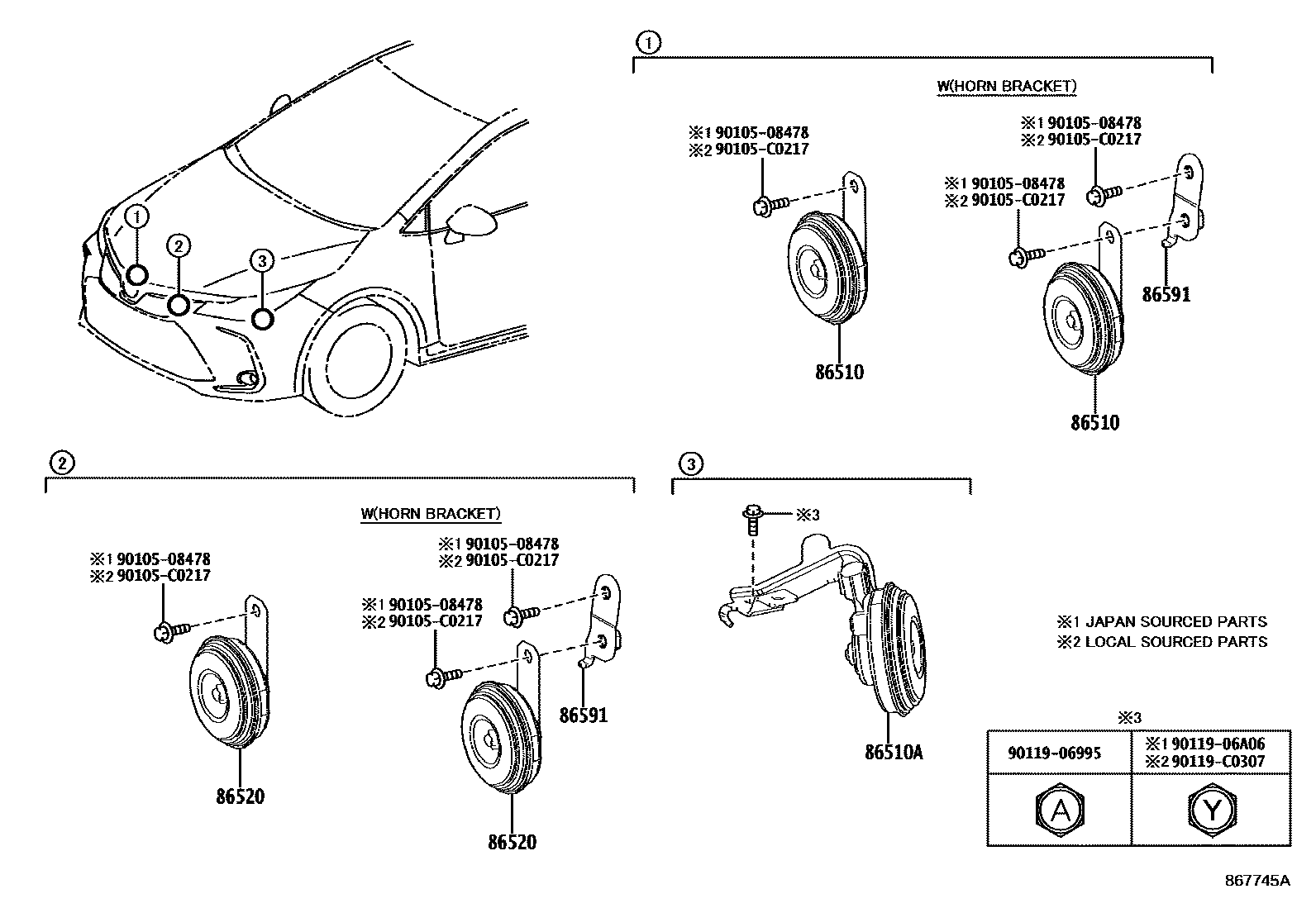

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-02231i202305

main86510-0E060i202203-202207

main86510-0E061i202208

main86510-0R041i201908-202006

86510AHORN ASSY, SECURITY

main86560-02180i201908

main86560-02190i201908-202304

main86560-02210i202305

LEATHER PACKAGE

86520HORN ASSY, LOW PITCHED

main86520-02361i202305

main86520-0A030i202203-202207

main86520-0A031i202208

main86520-0R041i201908-202006

86591BRACKET, HORN

main86591-02060×2i201908-202002

9010508478

main90105-08478

90105C0217

main90105-C0217

9011906995

main90119-06995

9011906A06

main90119-06A06

90119C0307

main90119-C0307

9 parts on this diagram · 3 diagrams in section

HORN for Toyota COROLLA

This section contains 14 genuine Toyota parts for the HORN system of the Toyota COROLLA. Key components include: SWITCH & RELAY & COMPUTER, HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING.
