Toyota COROLLA — HEATING & AIR CONDITIONING - COMPRESSOR

88310COMPRESSOR ASSY, W/PULLEY

main88310-02790i201606-201901

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88310-02830i201606-201808

AIR CONDITIONER-MANUAL AIR CONDITIONER

main88310-02840i201306-201901

main88310-02860i201401-201701

AIR CONDITIONER-WITHOUT

main88310-02860i201701-201912

AIR CONDITIONER-COOLER LESS

main88310-02860i201912

main88310-02870i201401-201912

main88310-02880i201401-201701

AIR CONDITIONER-WITHOUT

main88310-02880i201701-201912

AIR CONDITIONER-COOLER LESS

8844642030BOLT, IDLE PULLEY

main88446-42030

9011908C78

main90119-08C78

90178T0019

main90178-T0019

90178W0031

main90178-W0031

9415180800

main94151-80800

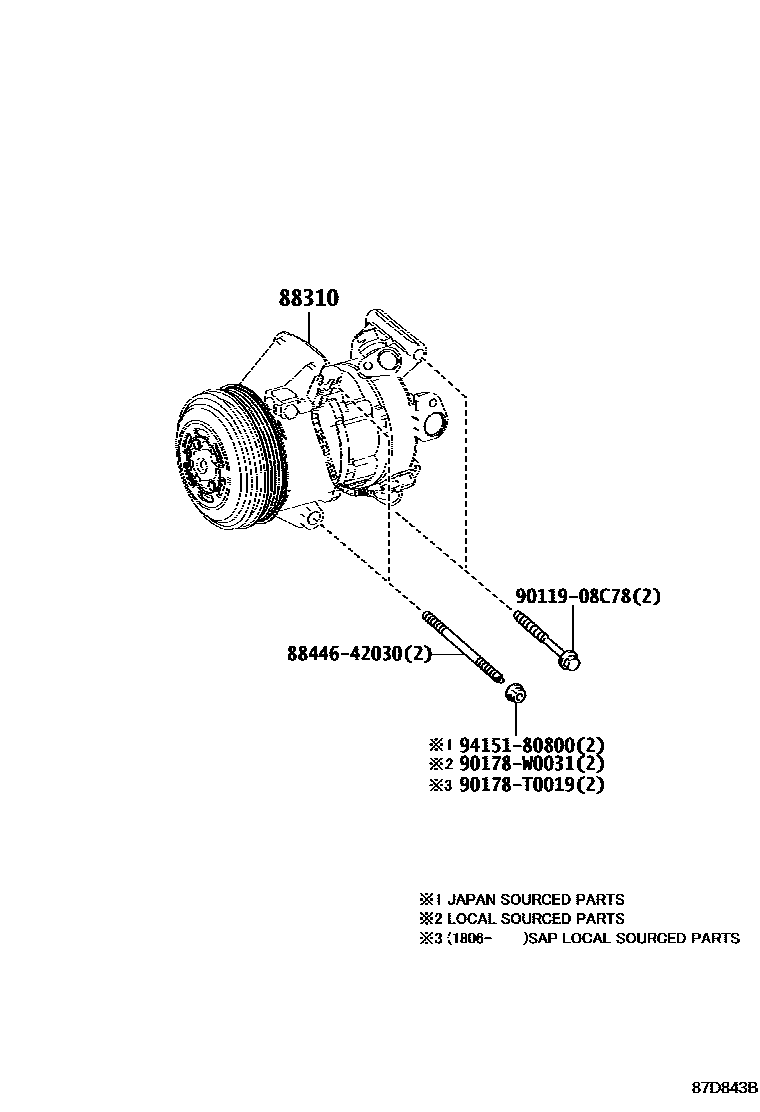

6 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA

This section contains 6 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA. Key components include: COMPRESSOR ASSY, W/PULLEY, BOLT, IDLE PULLEY.
