Toyota COROLLA — HEADLAMP
81110HEADLAMP ASSY, RH
HEADLAMP-LED & WITH(*AHB)
HEADLAMP-LED
81110BBULB(FOR HEADLAMP, NO.1)
12V 55W
81150HEADLAMP ASSY, LH
HEADLAMP-LED & WITH(*AHB)
HEADLAMP-LED
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W
81515BSOCKET, FRONT TURN SIGNAL LAMP
9010906388
main90109-06388
90109C0022
main90109-C0022
9015960621
main90159-60621
9018906238
main90189-06238
90189C0027
main90189-C0027

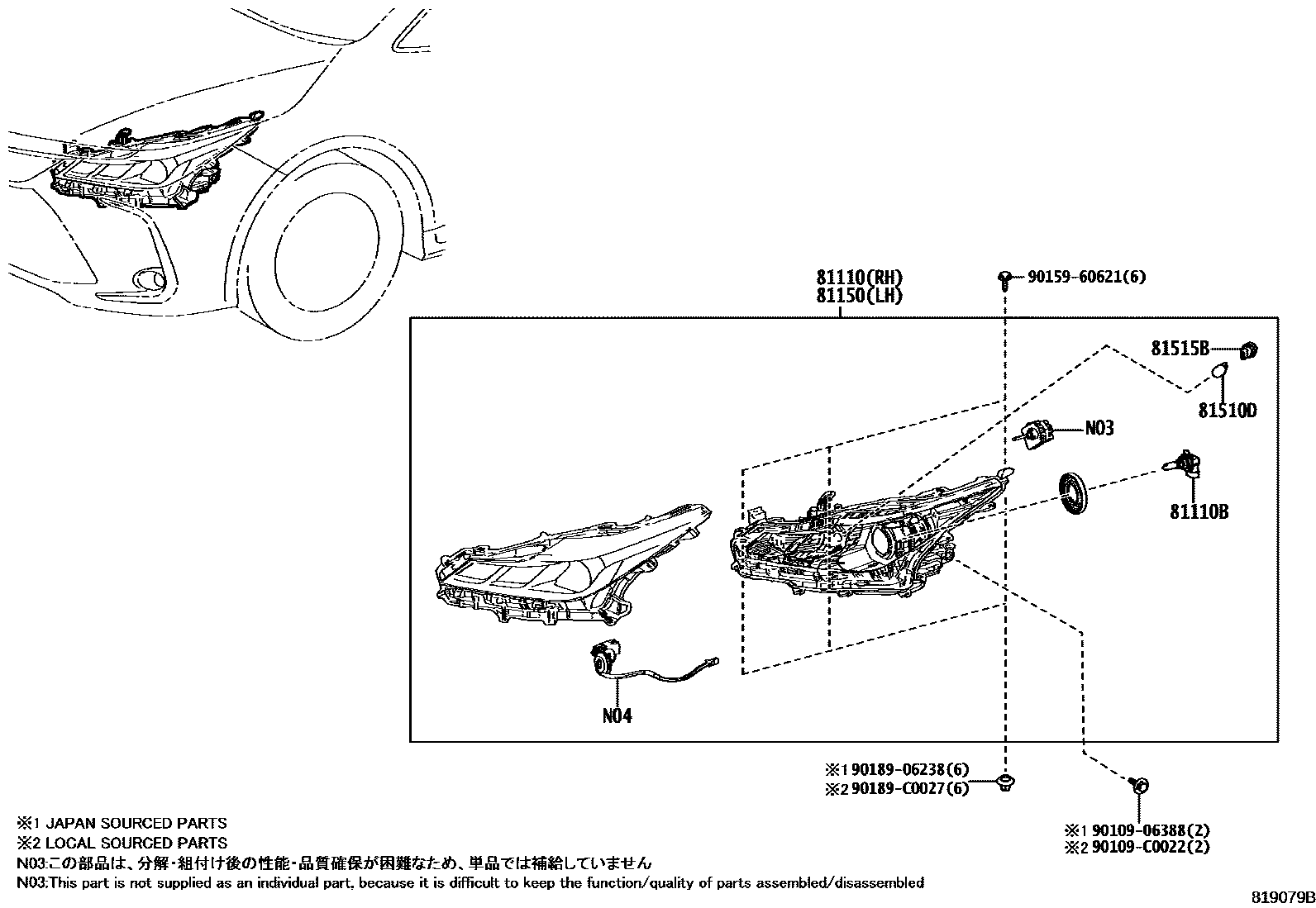

10 parts on this diagram · 4 diagrams in section
HEADLAMP for Toyota COROLLA
This section contains 10 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), HEADLAMP ASSY, LH, BULB (FOR FRONT TURN SIGNAL LAMP), SOCKET, FRONT TURN SIGNAL LAMP.
