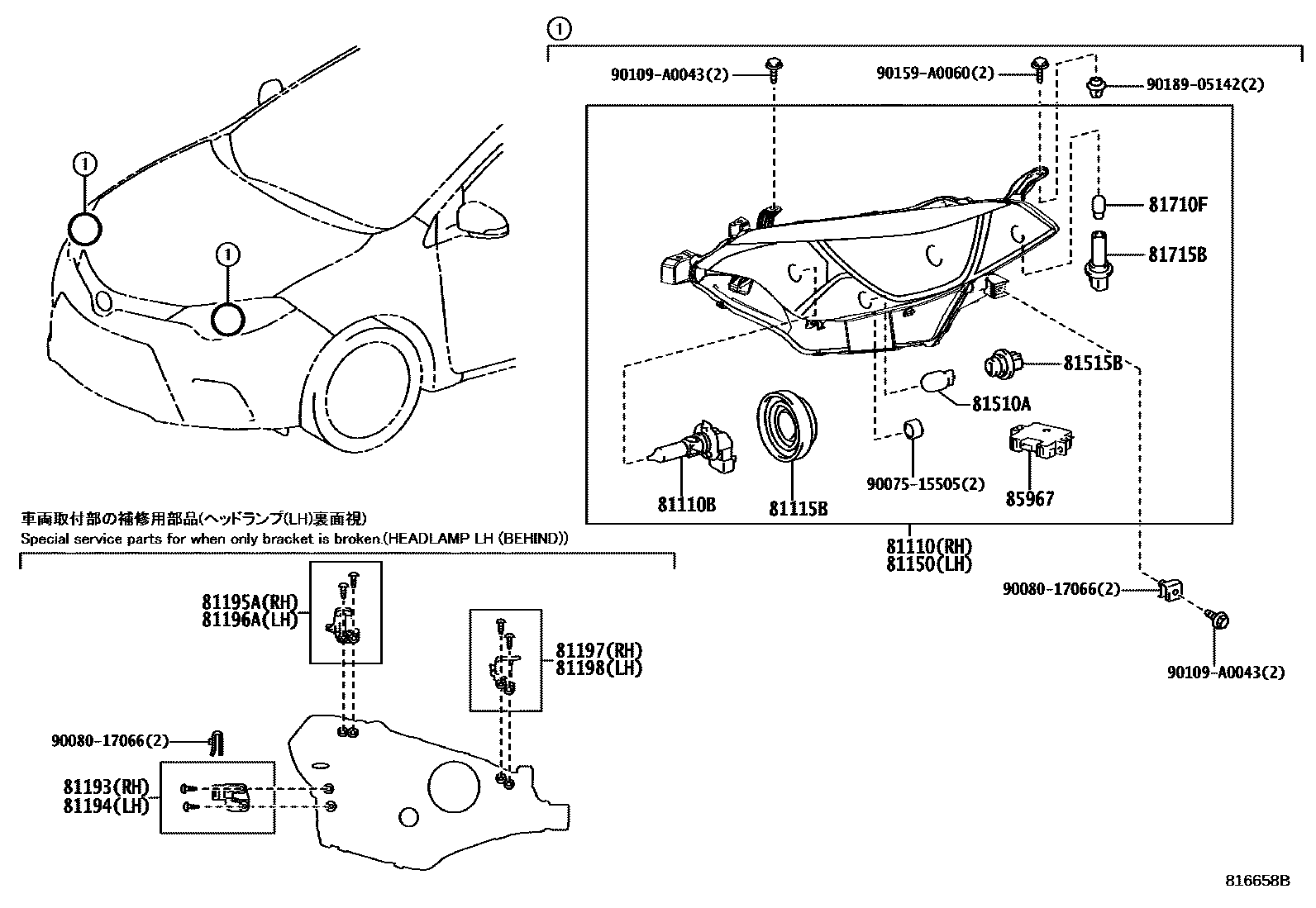

Toyota COROLLA — HEADLAMP
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81115BSOCKET,HEADLAMP, NO.1
81150HEADLAMP ASSY, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510ABULB, FRONT TURN SIGNAL & PARKING LAMP
12V 28/8W
81515BSOCKET, FRONT TURN SIGNAL LAMP
81710FBULB, FRONT SIDE MAKER LAMP
81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP
85967COMPUTER, LIGHT CONTROL
9007515505
main90075-15505
9008017066
main90080-17066
90109A0043
main90109-A0043
90159A0060
main90159-A0060
9018905142
main90189-05142
20 parts on this diagram · 3 diagrams in section
HEADLAMP for Toyota COROLLA
This section contains 22 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SOCKET,HEADLAMP, NO.1, COVER, HEADLAMP, HEADLAMP ASSY, LH.
