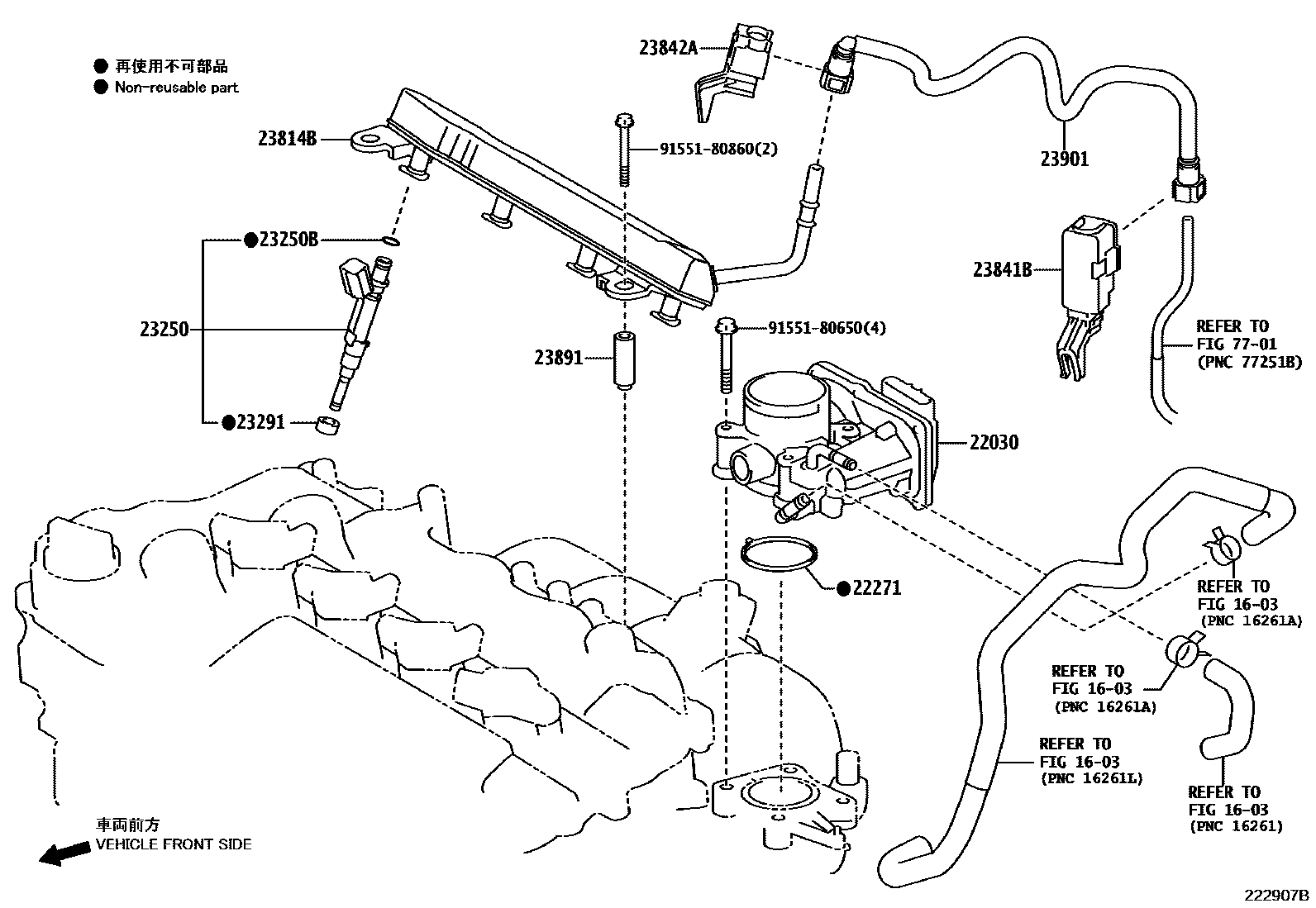

Toyota COROLLA — FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-47010i1NRFE..NRE180..TUP201606-201808

22271GASKET, THROTTLE BODY

main22271-47010i1NRFE..NRE180..SAP201401-201701

main22271-75031i1ZRFE,2ZRFE..ZRE18#..SAP201401-201701

23250INJECTOR ASSY, FUEL

main23209-09130×4i1ZRFE,2ZRFE..ZRE18#..SAP201401-201701

(L)

main23209-39145×4i1ZRFE,2ZRFE..ZRE18#..SAP201606-201912

(J)

main23209-49205×4i1NRFE..NRE180..SAP201401-201701

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1ZRFE,2ZRFE..ZRE18#..SAP201401-201701

main90301-07042×4i1NRFE..NRE180..TUP201606-201808

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

23814BPIPE, FUEL DELIVERY

main23814-47020i1NRFE..NRE180201401-201407

main23814-47050i1NRFE..NRE180..SAP201407-201701

main23814-47051i1NRFE..NRE180..TUP201806-201808

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37090i1ZRFE,2ZRFE..ZRE18#..SAP201606-201912

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0T020i1NRFE..NRE180..TUP201606-201808

main23842-28010i2ZRFE..ZRE182201912

23891SPACER, FUEL DELIVERY

main23891-47030×2i1NRFE..NRE180..TUP201606-201808

23901TUBE SUB-ASSY, FUEL

main23901-0D090i1ZRFE,2ZRFE..ZRE18#..SAP201401-201701

main23901-0Y020i1NRFE..NRE180..SAP201401-201701

7701

9155180650

main91551-80650

9155180860

main91551-80860

14 parts on this diagram · 2 diagrams in section
