Toyota COROLLA — FUEL INJECTION SYSTEM

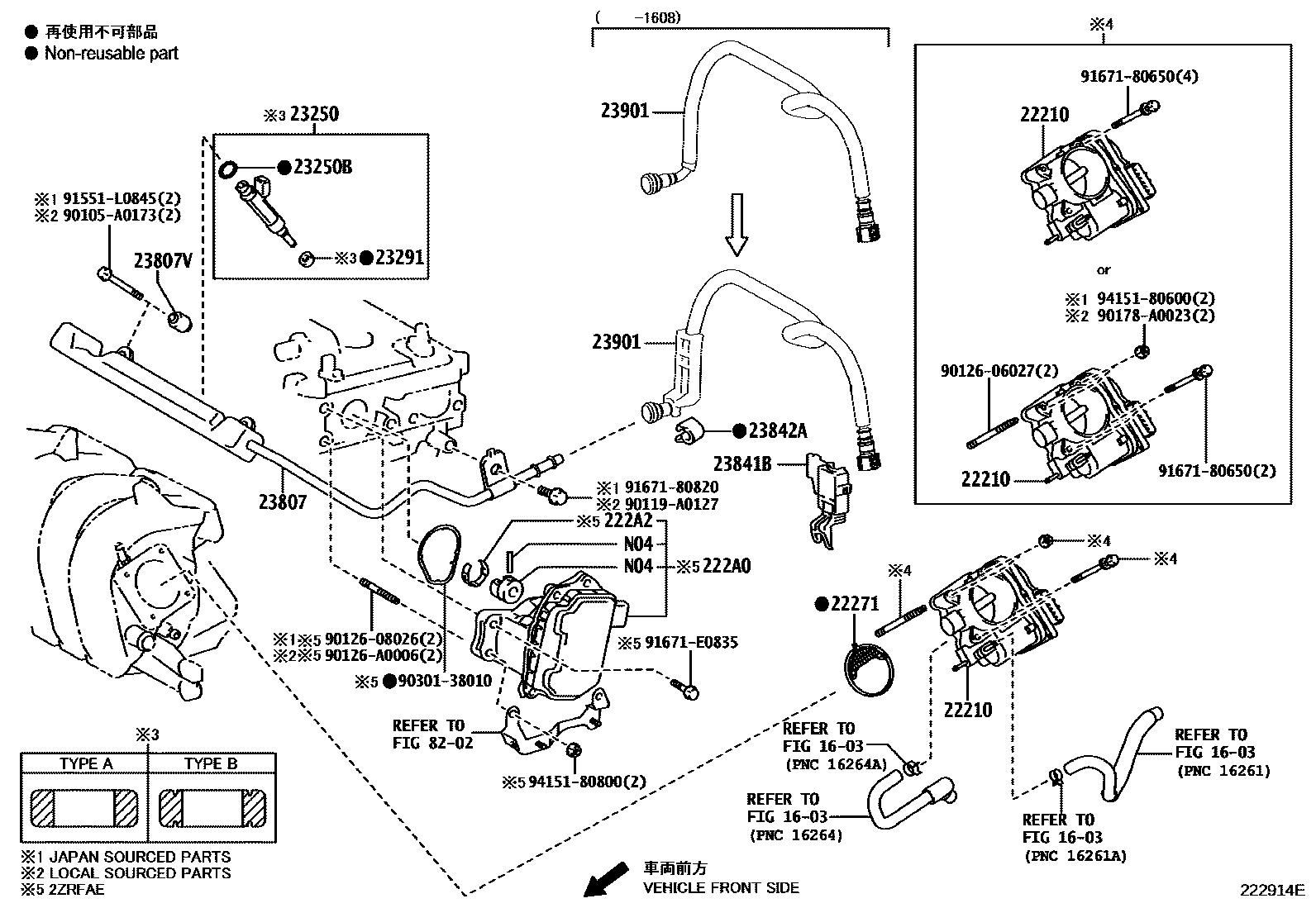

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22210BODY ASSY, THROTTLE

main22030-0T080201308-201608

main22030-37050201308-201608

22271GASKET, THROTTLE BODY

main22271-0D051201308-201608

main22271-75031201308-201608

222A0CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT

main222A0-37022201608-201708

main222A0-37023201709-201811

main222A0-37024201812

222A2CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR

main222A2-37011201608

23250INJECTOR ASSY, FUEL

main23209-09140201308-201608

main23209-09240201608

main23209-39145201308-201608

main23209-39146201308-201608

main23209-39235201608

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037201308-201608

main90301-A0036201308-201608

23291INSULATOR, INJECTOR VIBRATION

main23291-23010201308-201608

main23291-28020201308-201608

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37051201308-201608

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010201308-201608

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0T030201308-201602

main23841-0T031201603-201608

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0T030201308-201608

23901TUBE SUB-ASSY, FUEL

main23901-0T120201308-201608

main23901-0T240201608

8202WIRING & CLAMP

→ Go to FIG 82-02

90105A0173

main90105-A0173

90119A0127

main90119-A0127

9012606027

main90126-06027

9012608026

main90126-08026

90126A0006

main90126-A0006

90178A0023

main90178-A0023

9030138010

main90301-38010

91551L0845

main91551-L0845

9167180650

main91671-80650

9167180820

main91671-80820

91671E0835

main91671-E0835

9415180600

main94151-80600

9415180800

main94151-80800

27 parts on this diagram · 1 diagram in section

FUEL INJECTION SYSTEM for Toyota COROLLA

This section contains 27 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota COROLLA. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY, CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT, CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR.
