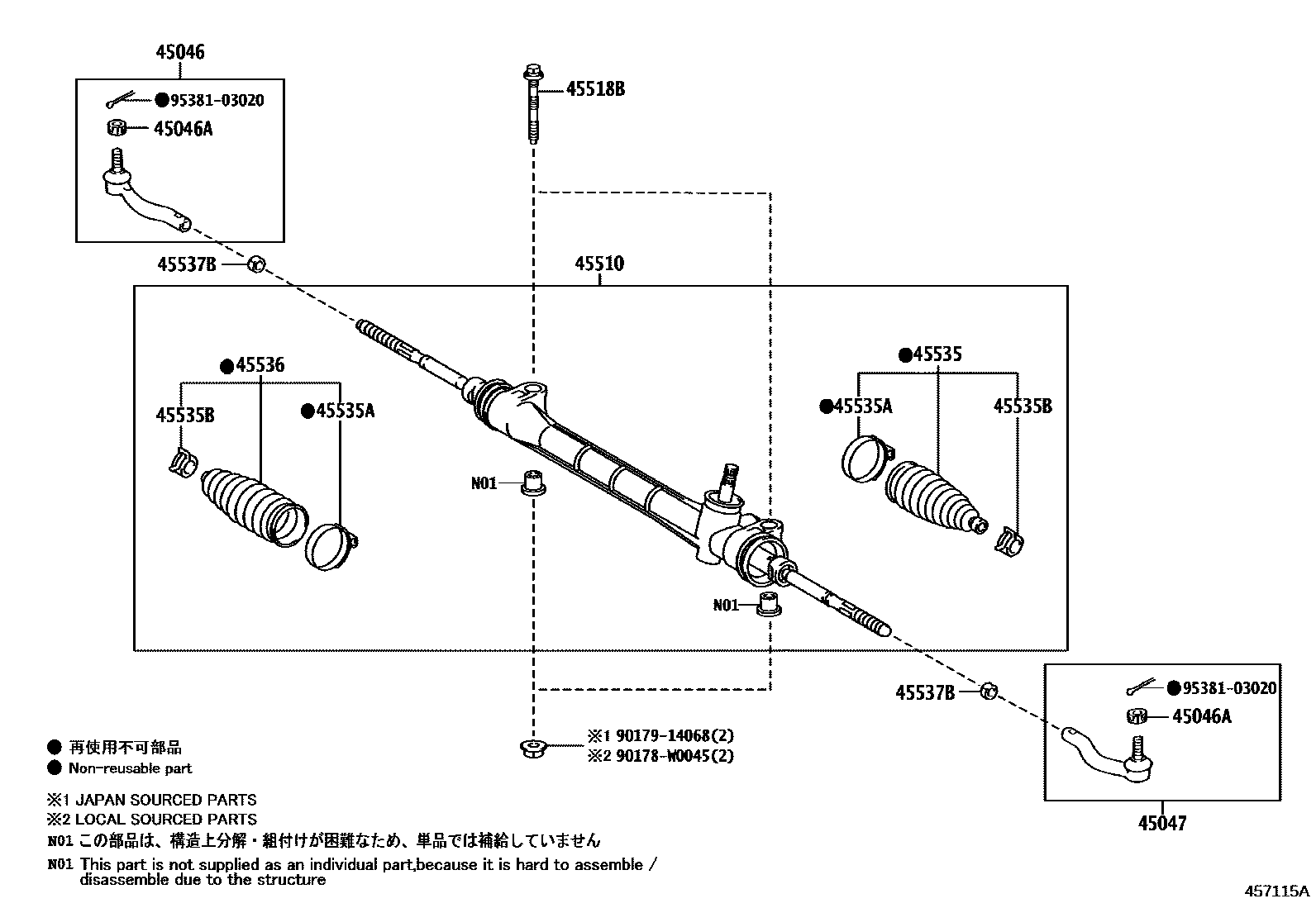

Toyota COROLLA — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09570i201306-201701

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i201306-201605

45047END SUB-ASSY, TIE ROD, LH

main45047-09270i201606-201912

45510GEAR ASSY, STEERING

main45510-02700i201701-201912

main45510-02710i201606-201901

45518BBOLT, STEERING RACK HOUSING

main90119-14129×2i201306-201605

main90119-14156×2i201606-201808

45535BOOT, STEERING RACK, NO.1

main45535-09120i201306-201502

main45535-09440i201503-201701

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-05010i201912

main45538-47010i201306-201504

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010i201606-201901

45536BOOT, STEERING RACK, NO.2

main45535-09120i201306-201502

main45535-09440i201503-201605

45537BNUT, RACK END LOCK

main90179-15006×2i201306-201605

90178W0045

main90178-W0045

9017914068

main90179-14068

9538103020

main95381-03020

13 parts on this diagram · 2 diagrams in section

FRONT STEERING GEAR & LINK for Toyota COROLLA

This section contains 13 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOLT, STEERING RACK HOUSING.
