Toyota COROLLA — FRONT FENDER APRON & DASH PANEL

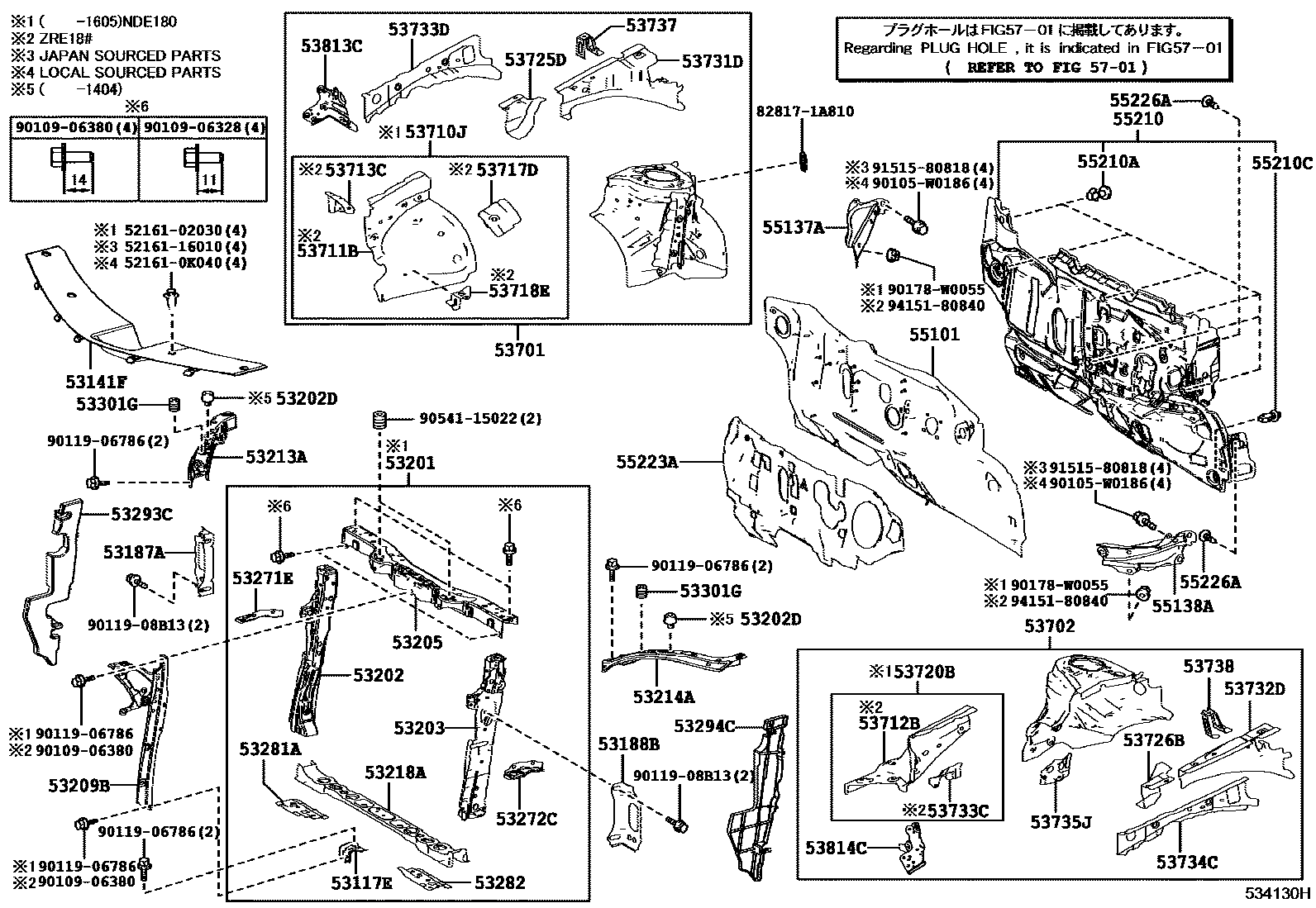

Parts diagram
53117EBRACKET, RADIATOR GRILLE, LOWER
main53117-02020i201306-201605
53141FCOVER, RADIATOR
main53141-02080i201306-201605
main53141-02090i201912
53187ASTAY, RADIATOR SUPPORT, RH
main53187-02010i201606-201901
main53187-12030i201912
53188BSTAY, RADIATOR SUPPORT, LH
main53188-02010i201606-201808
main53188-12030i201701-201912
53201SUPPORT SUB-ASSY, RADIATOR
main53201-02906i201606-201901
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-02140i201306-201605
53202DCUSHION, RADIATOR SUPPORT
main90541-09117×2i201306-201404
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-02150i201306-201605
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-02230i201306-201605
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
main53209-02081i201306-201605
main53209-02100i201606-201808
53213ASUPPORT, RADIATOR, UPPER RH
main53107-02030i201306-201605
53214ASUPPORT, RADIATOR, UPPER LH
main53214-02120i201306-201605
53218ASUPPORT, RADIATOR, LOWER
main53218-02010i201606-201901
main53218-12030i201912
53271EBRACKET, HEADLAMP MOUNTING, RH
main53271-02070i201306-201605
53272CBRACKET, HEADLAMP MOUNTING, LH
main53272-02070i201606-201901
53281AREINFORCEMENT, FRONT BODY MOUNTING, RH
main53281-02010i201306-201605
main53281-12020i201401-201701
53282REINFORCEMENT, FRONT BODY MOUNTING, LH
main53282-02010i201606-201808
main53282-12020i201401-201701
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-02160i201306-201605
main53293-02240i201912
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-02160i201306-201701
main53294-02230i201606-201808
53301GCUSHION, HOOD BUMPER
main53384-50010×2i201606-201901
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-02300i201306-201605
main53701-02310i201401-201701
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-02220i201306-201605
main53702-02230i201701-201912
53710JAPRON ASSY, FRONT FENDER, RH
main53710-02030i201306-201605
53711BAPRON, FRONT FENDER, FRONT RH
main53711-02070i201401-201701
53712BAPRON, FRONT FENDER, FRONT LH
main53712-02120i201401-201701
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
main53713-12160i201701-201912
53717DGUSSET, FENDER APRON, RH
main53717-12070i201701-201912
53718ESTAY, FRONT FENDER APRON, FRONT
main53718-12060i201912
53720BAPRON ASSY, FRONT FENDER, LH
main53720-02030i201306-201605
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
main53725-02010i201606-201901
main53725-12040i201912
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
main53726-02010i201606-201901
main53726-12040i201912
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-02020i201606-201901
main53731-12170i201912
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-02020i201606-201901
main53732-12150i201912
53733CPATCH, FRONT FENDER APRON
main53736-12070i201401-201701
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
main53733-02010i201306-201605
main53733-12070i201401-201701
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
main53734-02010i201606-201808
main53734-12070i201912
53735JPATCH, FRONT FENDER APRON, NO.5
main53735-02010i201606-201808
main53735-12070i201401-201701
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
main53737-02140i201606-201901
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
main53738-02110i201306-201605
53813CEXTENSION, FRONT FENDER, RH
main53813-02120i201606-201901
53814CEXTENSION, FRONT FENDER, LH
main53814-02120i201306-201605
55101PANEL SUB-ASSY, DASH
main55101-02740i201912
main55101-02750i201401-201701
main55101-02790i201401-201701
main55101-02800i201912
main55101-05560i201606-201901
main55101-05570i201306-201605
55137ABRACE, DASH TO FRAME, RH
main55137-02090i201306-201307
main55137-02110i201401-201701
main55137-02140i201307-201512
main55137-02141i201601-201605
55138ABRACE, DASH TO FRAME, LH
main55138-02080i201306-201307
main55138-02100i201701-201912
main55138-02130i201307-201512
main55138-02131i201606-201901
55210INSULATOR ASSY, DASH PANEL
main55210-02450i201306-201510
main55210-02460i201912
main55210-02480i201912
main55210-02610i201511-201605
55210ACLIP
main90467-11122×6i201606-201912
55210CCLIP
main90467-11127×3i201306-201605
55223AINSULATOR, DASH PANEL, OUTER
main55223-02180i201701-201901
main55223-02181i201912
main55223-02190i201701-201901
main55223-02191i201902-201912
main55223-05090i201606-201808
55226ACLIP
main90467-08186-C0×4i201606-201610
BLACK
main90467-08186-C3×4i201912
BLACK
5701
5216102030CUSHION, REAR BUMPER GUARD, NO.1
main52161-02030
521610K040CUSHION, REAR BUMPER GUARD, NO.1
main52161-0K040
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
828171A810PROTECTOR, WIRING HARNESS, NO.1
main82817-1A810
90105W0186
main90105-W0186
9010906328
main90109-06328
9010906380
main90109-06380
9011906786
main90119-06786
9011908B13
main90119-08B13
90178W0055
main90178-W0055
9054115022
main90541-15022
9151580818
main91515-80818
9415180840
main94151-80840

63 parts on this diagram · 5 diagrams in section
