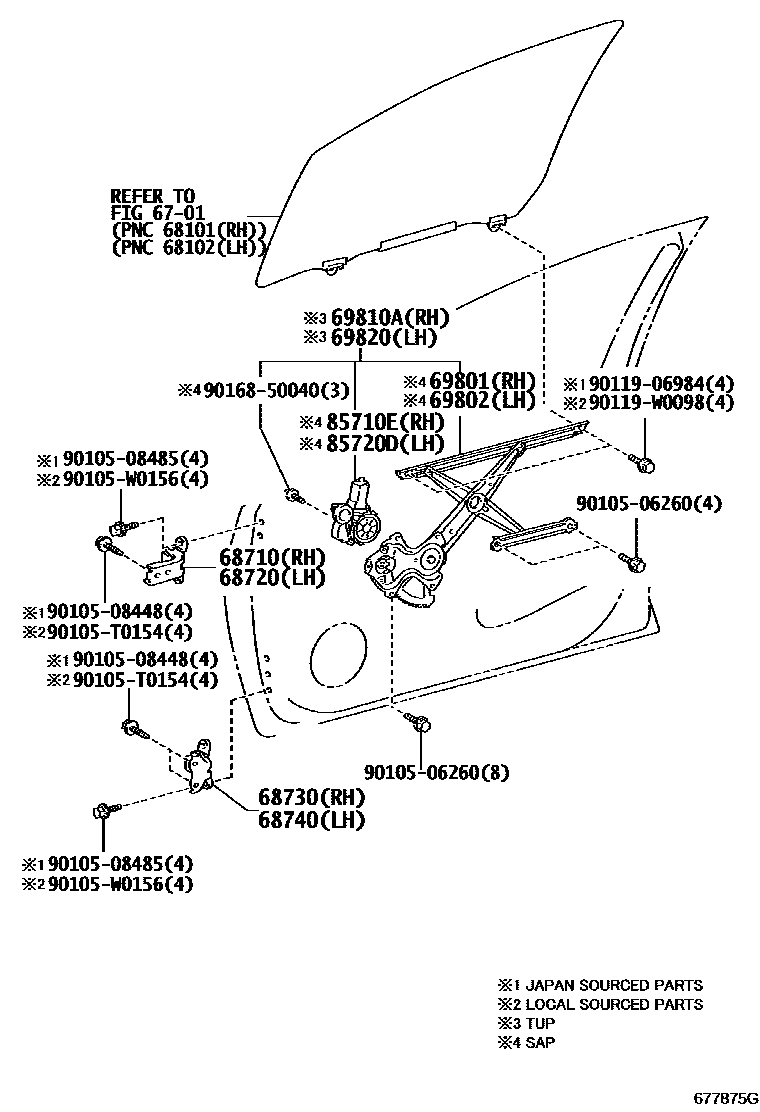

Toyota COROLLA — FRONT DOOR WINDOW REGULATOR & HINGE
6701FRONT DOOR PANEL & GLASS
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH
POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN)
69820REGULATOR ASSY, FRONT DOOR WINDOW, LH
85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH
85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH
9010506260
main90105-06260
9010508448
main90105-08448
9010508485
main90105-08485
90105T0154
main90105-T0154
90105W0156
main90105-W0156
9011906984
main90119-06984
90119W0098
main90119-W0098
9016850040
main90168-50040
19 parts on this diagram · 1 diagram in section
FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA
This section contains 19 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
