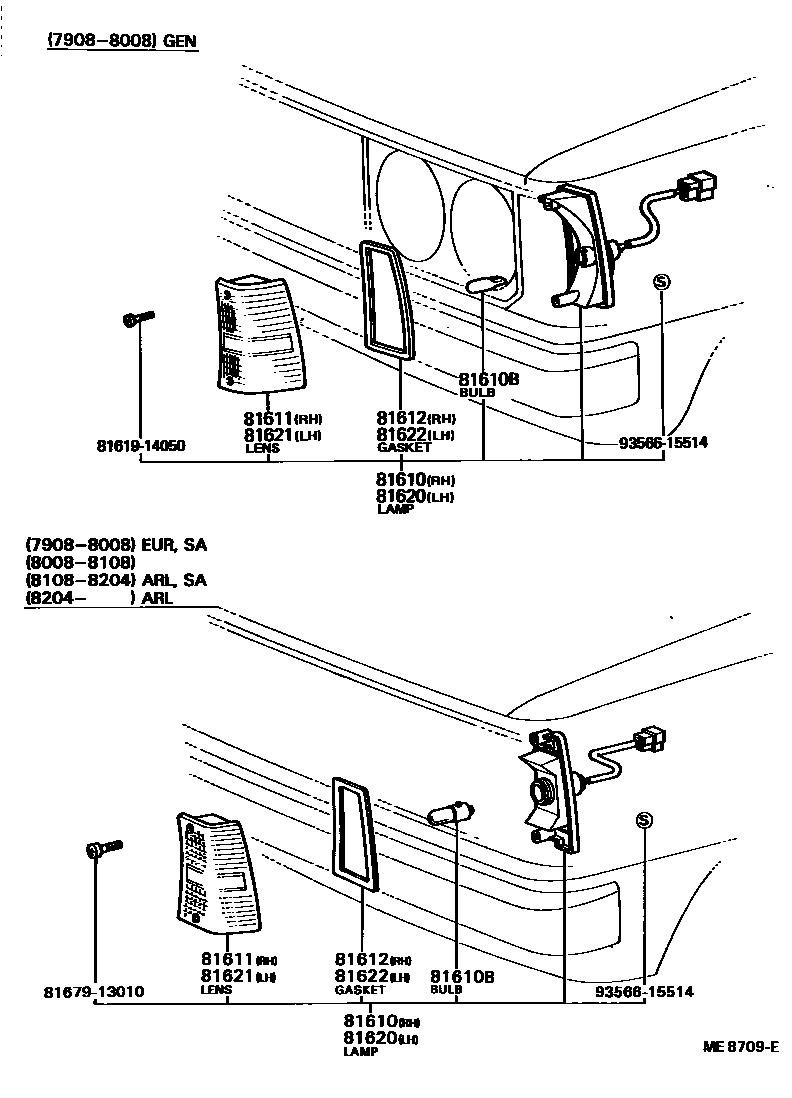

Toyota COROLLA — FRONT CLEARANCE LAMP
81610LAMP ASSY, PARKING & CLEARANCE, RH
81610BBULB(FOR PARKING & CLEARANCE LAMP)
12V 5W,12V 5W
12V 5W,12V 5W
81611LENS, PARKING & CLEARANCE LAMP, RH
81612GASKET, PARKING AND CLEARANCE LAMP LENS, RH
81620LAMP ASSY, PARKING & CLEARANCE, LH
81621LENS, PARKING & CLEARANCE LAMP, LH
81622GASKET, PARKING AND CLEARANCE LAMP LENS, LH
8161914050
main81619-14050
8167913010BRACKET, BACK UP LAMP BODY
main81679-13010
9356615514
main93566-15514
10 parts on this diagram · 5 diagrams in section
FRONT CLEARANCE LAMP for Toyota COROLLA
This section contains 27 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, GASKET, PARKING AND CLEARANCE LAMP LENS, RH, PROTECTOR, CLEARANCE LAMP, RH.
