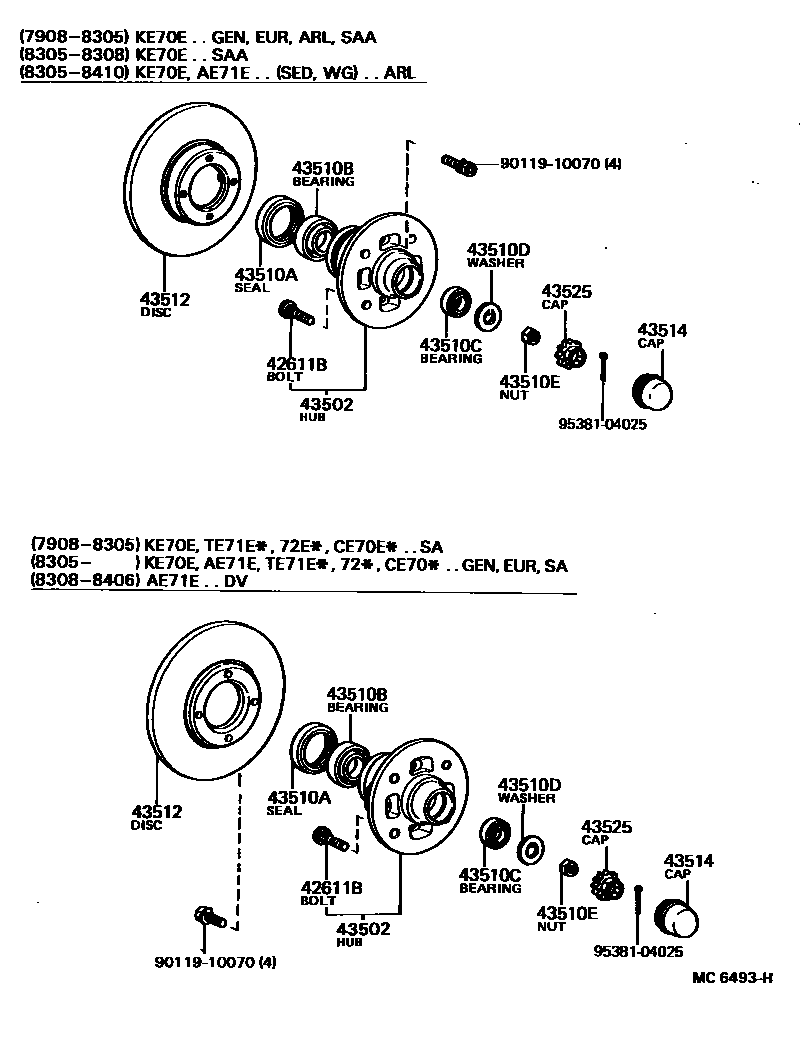

Toyota COROLLA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02036iCE70,KE70,TE7#197908-198305

sub90942-02048

main90942-02048iAE71,CE70,KE70,TE7#198305-198707

43502HUB SUB-ASSY, FRONT AXLE

main43502-12040iAE71,KE70..4D..ARL197908-198410

main43502-12060iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)197908-198707

main43502-12070iCE70,KE70,TE71..EUR,GEN198305-198707

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123iAE71,CE70,KE70,TE7#197908-198707

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068iAE71,CE70,KE70,TE7#197908-198707

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017iAE71,CE70,KE70,TE7#197908-198707

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010iAE71,CE70,KE70,TE7#197908-198707

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137iAE71,CE70,KE70,TE7#197908-198707

sub94125-41600

43512DISC, FRONT

main43512-12100iKE70..GEN,SAA197908-198308

main43512-12110iKE70..2D..ARL197908-198309

main43512-12120iCE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)197908-198707

main43512-12140iCE70,KE70..EUR198305-198707

main43512-12190iAE71,KE70,TE71..GEN198305-198707

main43512-20032iTE71..GEN,SAA197908-198308

43514CAP, FRONT HUB GREASE

main43514-20010iAE71,CE70,KE70,TE7#197908-198707

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011iAE71,CE70,KE70,TE7#197908-198707

9011910070

main90119-10070

9538104025

main95381-04025

12 parts on this diagram · 1 diagram in section
