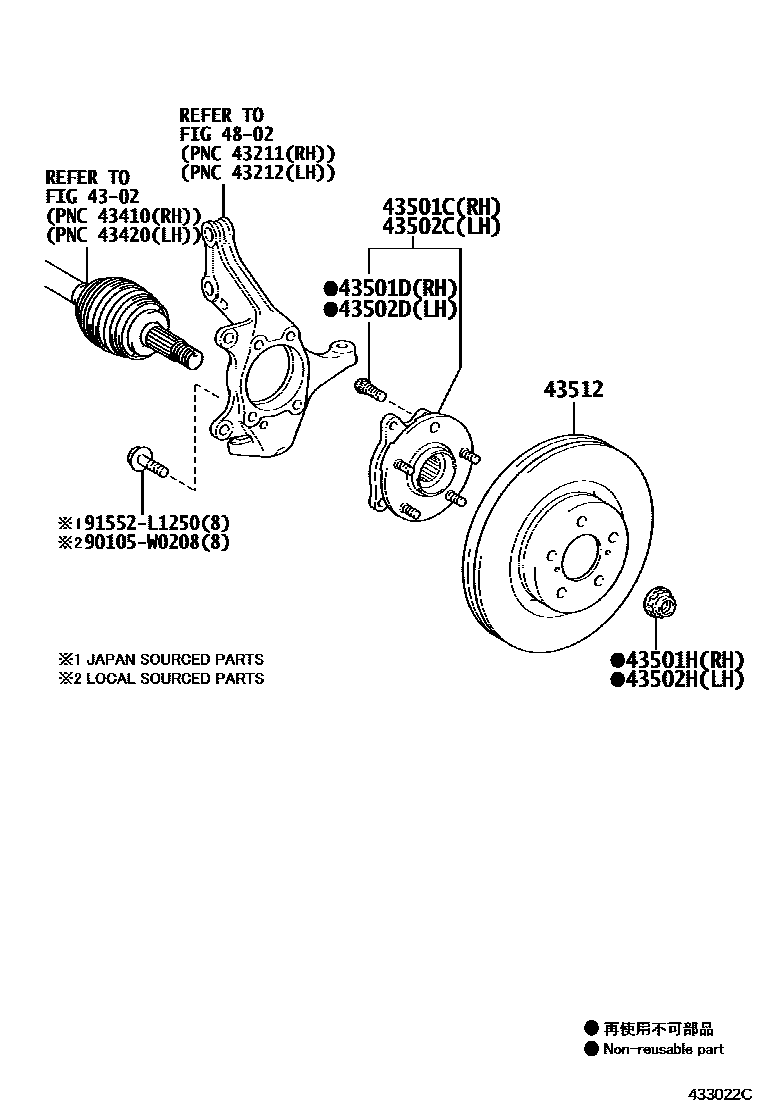

Toyota COROLLA — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-02010iNDE180,ZRE18#..TUP201606-201901

main43550-02030iNDE180,NRE180,ZRE18#..SAP201701-201912

main43550-42010iZRE182202110

(J)

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iNRE180..TUP201606-201808

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNDE180..TUP201306-201605

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-02010iNDE180,ZRE18#..TUP201606-201901

main43550-02030iZRE182202110

(L)

main43550-42010iZRE182201912-202110

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iNDE180,NRE180,ZRE18#..SAP201606-201912

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNDE180,NRE180,ZRE18#..SAP201306-201701

43512DISC, FRONT

main43512-02330×2iNDE180,ZRE18#..GEN..TUP201606-201901

main43512-02340×2iZRE182201912

main43512-12670×2iZRE18#..GCC201606-201901

4802

90105W0208

main90105-W0208

91552L1250

main91552-L1250

11 parts on this diagram · 1 diagram in section
