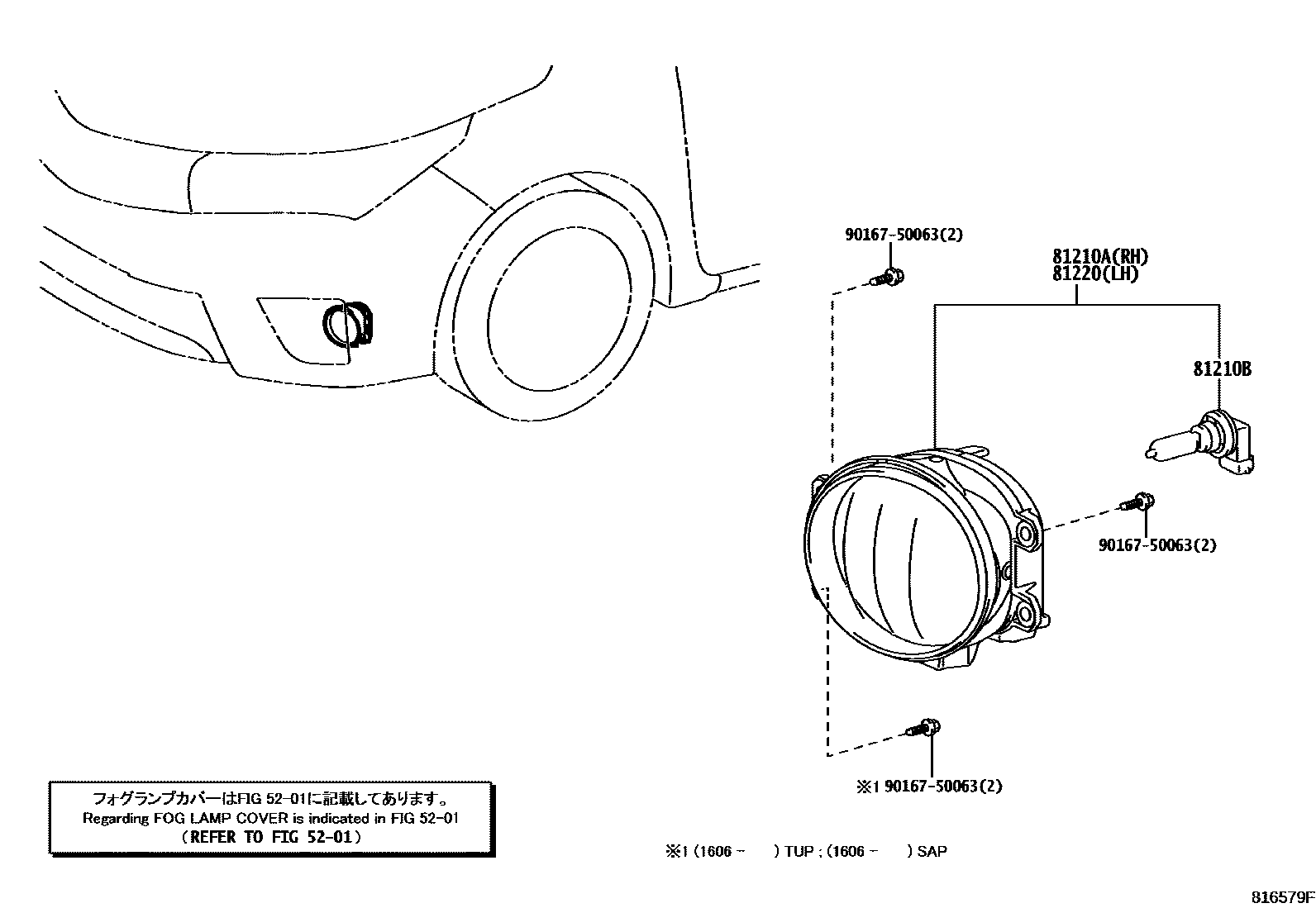

Toyota COROLLA — FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-02110i201306-201701

FRONT FOG LAMP-WITH

81210BBULB, FOG LAMP

main90981-WD016×2i201306-201605

12V 19W,FRONT FOG LAMP-WITH

81220LAMP ASSY, FOG, LH

main81220-02110i201306-201701

FRONT FOG LAMP-WITH

9016750063

main90167-50063

5 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota COROLLA

This section contains 5 genuine Toyota parts for the FOG LAMP system of the Toyota COROLLA. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP ASSY, FOG, LH.
