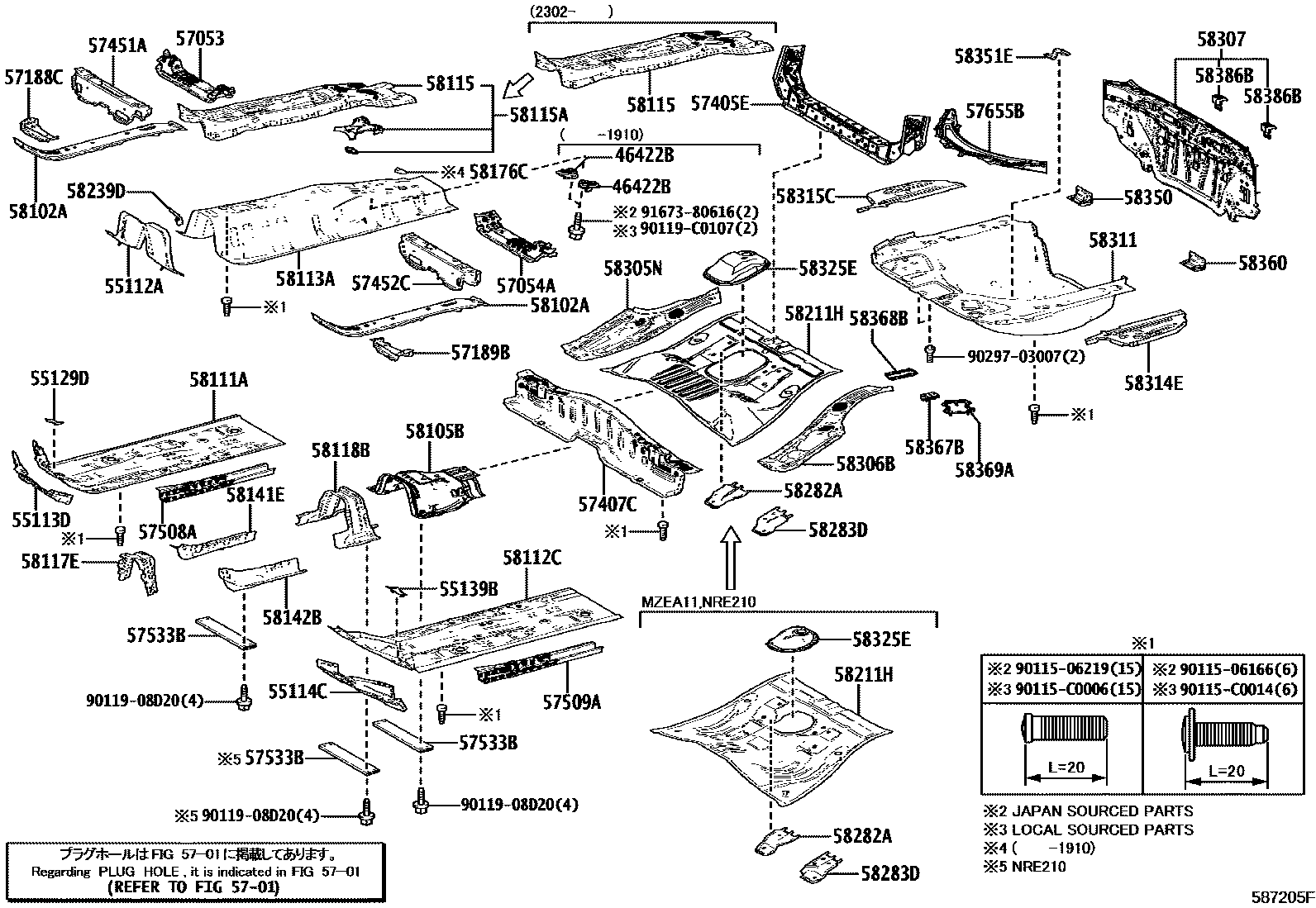

Toyota COROLLA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

46422BCAP, PARKING BRAKE CABLE, CASING

main46422-02050×2iNRE210,ZWE211201908-201911

55112APANEL, DASH, NO.2

main55112-F4030iNRE210..ENTRY,MID201908

55113DPANEL, DASH, LOWER RH

main55113-F4030iNRE210..HI201908-202006

55114CPANEL, DASH, LOWER LH

main55114-F4030iNRE210..HI202007-202304

55129DCOVER, DASH PANEL HOLE, RH

main55129-F4030iNRE210..HI201908-202006

55139BCOVER, DASH PANEL HOLE, LH

main55139-F4030iNRE210..HI201908-202006

5701

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02170iMZEA17,ZWE219202305

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02160iMZEA11,ZWE211201908-202304

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-F4030iNRE210..HI201908-202006

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-F4030iMZEA17,ZWE219202305

57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-F4030iNRE210..HI202007-202304

main57405-F4031iNRE210..ENTRY,MID202309

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-02320iZWE211201908-202304

main57407-F4060iMZEA17202306

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-F4030iMZEA17,ZWE219202305

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-F4030iMZEA11,ZWE211201908-202304

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-02130iNRE210..HI201908-202006

main57508-02131iNRE210..HI;MZEA11,ZWE211202204-202304

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-02130iNRE210..HI201908-202006

main57508-02131iNRE210..HI;MZEA11,ZWE211202204-202304

57533BBRACE, FRONT FLOOR, CENTER

main57533-F4040×3iNRE210..HI201908-202006

57655BMEMBER, REAR FLOOR CROSS, NO.4

main57655-02040iNRE210..HI201908-202006

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-F4030×2iNRE210..ENTRY,MID201908

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-02080iMZEA11,ZWE211201908-202304

58111APAN, FRONT FLOOR, RH

main58111-02450iNRE210..HI201908-202006

main58111-02451iNRE210..HI;MZEA11,ZWE211202104-202304

58112CPAN, FRONT FLOOR, LH

main58112-02200iNRE210..HI201908-202006

main58112-02201iNRE210..ENTRY,MID202303

main58112-02202iMZEA11,NRE210,ZWE211202210-202303

58113APANEL, FRONT FLOOR, CENTER

main58113-02240iNRE210,ZWE211201908-201910

main58113-02241iNRE210..HI201911-202006

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58115-02140iNRE210..HI201908-202006

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58015-02320iMZEA11,ZWE211;NRE210..ENTRY,MID201908-202302

58117EPANEL, FRONT FLOOR SUB COVER

main58117-F4030iNRE210..HI201908-202006

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-F4030iNRE210..HI201908-202006

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-F4031iMZEA17,ZWE219202305-202402

main58141-F4032iNRE210..ENTRY,MID202402

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-F4031iNRE210..HI201908-202006

main58142-F4032iNRE210..HI;MZEA11,ZWE211202107-202304

58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2

main58176-02030iNRE210,ZWE211201908-201911

58211HPAN, CENTER FLOOR

main58211-02620iZWE211201908-202304

main58211-0A050iMZEA17202306

main58211-F4060iNRE210..ENTRY,MID201908

58239DBRACKET, CABLE CLAMP

main58239-F4030iNRE210..HI201908-202006

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-0A040iMZEA17202306

main58282-F4030iNRE210..HI201908-202006

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-0A040iMZEA17202306

main58283-F4030iMZEA11,ZWE211201908-202304

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-02190iZWE211201908-202304

main58305-02260iMZEA11201908-202304

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-02200iZWE211201908-201909

main58306-02201iZWE211201909-202304

main58306-02210iZWE219202305

main58306-02270iMZEA11201908-202304

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02570iMZEA11,ZWE211201908-202304

58311PAN, REAR FLOOR

main58311-02450iNRE210..HI202007-202304

58314EEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-02130iNRE210..HI201908-202006

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-02170iNRE210..HI201908-202006

main58315-02200iNRE210..ENTRY,MID202104

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02310iZWE211201908-202304

main58325-02350iMZEA17202306

main58325-F4060iNRE210..ENTRY,MID201908

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-F4030iNRE210..HI201908-202006

58351EBRACKET, SPARE WHEEL CLAMP

main58351-02130iNRE210..HI202007-202304

58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

main58350-F4030iMZEA11,ZWE211201908-202304

58367BBRACKET, FUEL TUBE

main58367-F4020iNRE210..HI201908-202006

58368BBRACKET, FUEL TUBE, NO.2

main58368-F4020iNRE210..ENTRY,MID201908

58369ABRACKET, FUEL TUBE, NO.3

main58369-02060iZWE219202305

main58369-F4030iNRE210..HI202007-202304

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02180×2iNRE210..HI201908-202006

9011506166

main90115-06166

9011506219

main90115-06219

90115C0006

main90115-C0006

90115C0014

main90115-C0014

9011908D20

main90119-08D20

90119C0107

main90119-C0107

9029703007

main90297-03007

9167380616

main91673-80616

57 parts on this diagram · 2 diagrams in section
