Toyota COROLLA — EXHAUST GAS RECIRCULATION SYSTEM

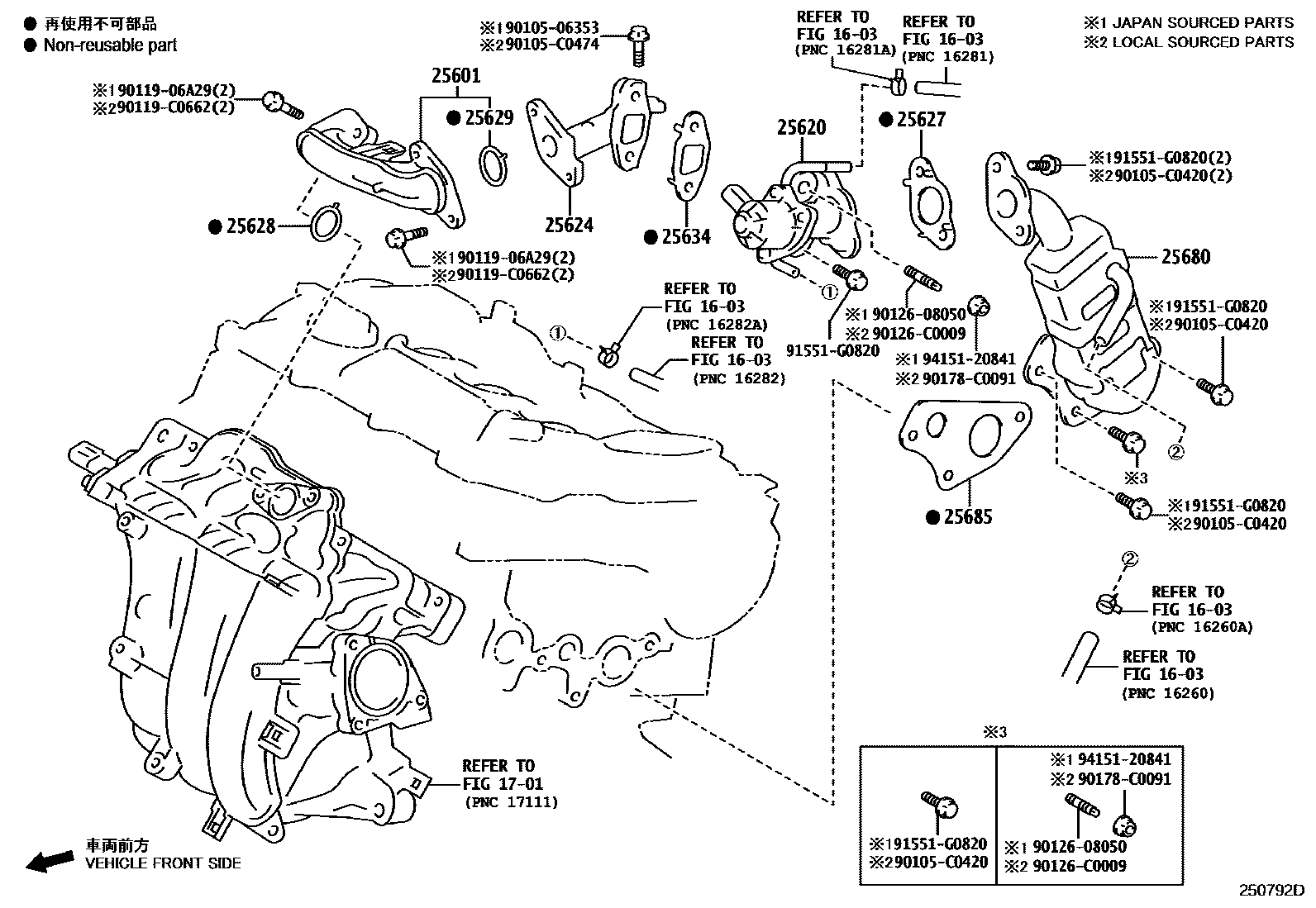

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-15050i202101-202304

*616

main25601-F3040i202101-202304

*665

25620VALVE ASSY, EGR

main25620-0T010i202305

main25620-15360i202101-202304

*616

main25620-37150i201908-202304

main25620-F3020i202306

25624ADAPTER, EGR VALVE

main25624-15010i202101-202304

*616

main25624-F3020i202101-202304

*665

25627GASKET, EGR VALVE

main25627-15010i202101-202304

*616

main25627-37020i201908-202304

main25627-F3040i202306

25628GASKET, EGR INLET

main25628-25010i202306

25629GASKET, EGR VALVE ADAPTER

main25628-25010i202101-202304

*665,*616

25634GASKET, EGR PIPE

main25634-15010i202101-202304

*616

main25634-37020i201908-202304

main25634-F3040i202306

25680COOLER ASSY, EGR

main25680-15020i202101-202304

*616

main25680-F3020i202101-202304

*665

25685GASKET, EGR COOLER, NO.1

main25685-0T010i202403

(L)

main25685-15010i202101-202304

*616

main25685-37020i202403

(J)

main25685-F3020i202306

9010506353

main90105-06353

90105C0420

main90105-C0420

90105C0474

main90105-C0474

9011906A29

main90119-06A29

90119C0662

main90119-C0662

9012608050

main90126-08050

90126C0009

main90126-C0009

90178C0091

main90178-C0091

91551G0820

main91551-G0820

9415120841

main94151-20841

21 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota COROLLA

This section contains 31 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota COROLLA. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, PIPE SUB-ASSY, EGR W/COOLER, PIPE ASSY, EGR.
