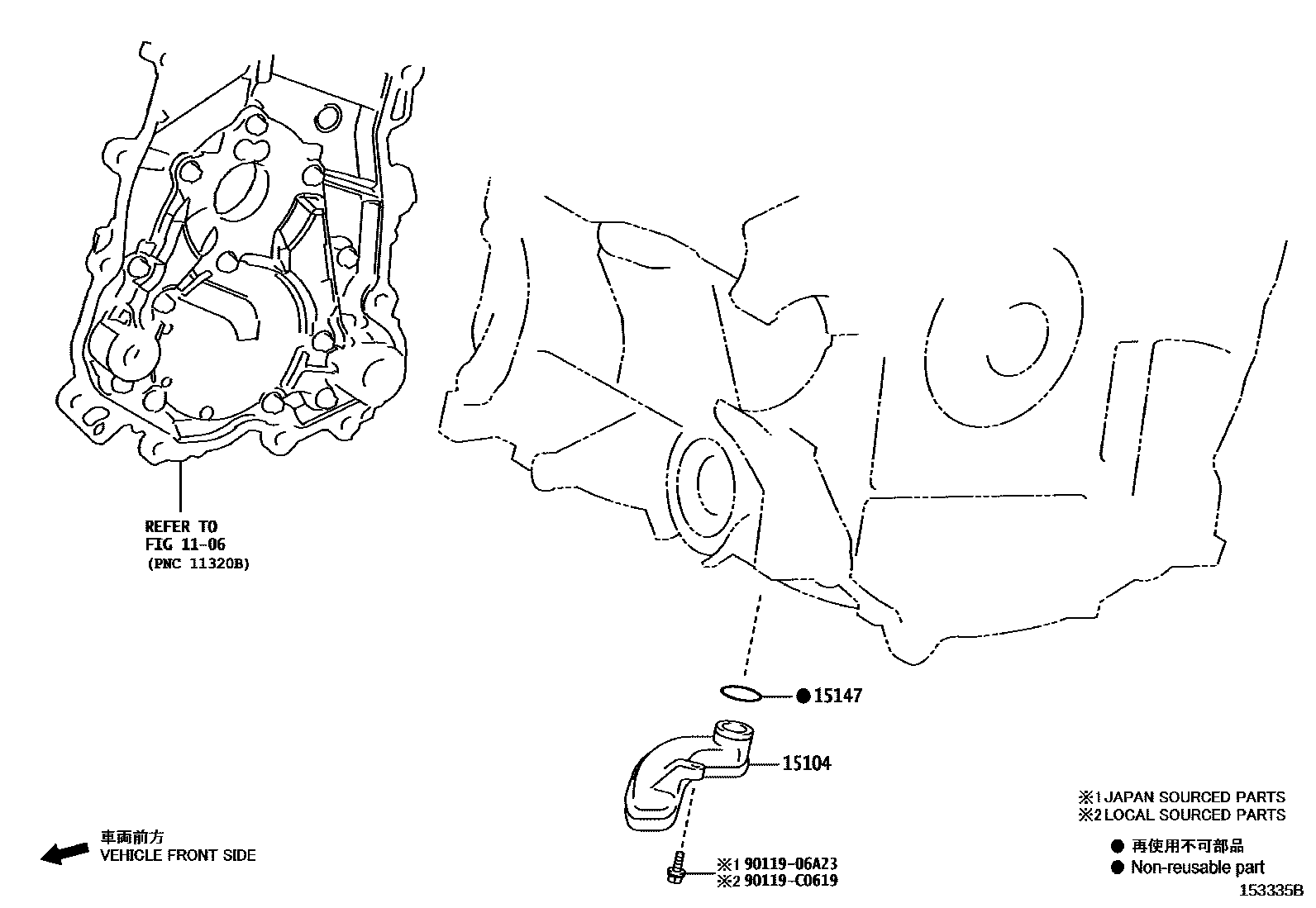

Toyota COROLLA — ENGINE OIL PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-15110i202101-202304

*616

main15104-F3020i202101-202304

*665

15147GASKET, OIL STRAINER

main15147-25010i202101-202304

*616

main15147-F2010i202101-202304

*665

9011906A23

main90119-06A23

90119C0619

main90119-C0619

5 parts on this diagram · 3 diagrams in section

ENGINE OIL PUMP for Toyota COROLLA

This section contains 18 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota COROLLA. Key components include: TIMING GEAR COVER & REAR END PLATE, COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, STRAINER SUB-ASSY, OIL, VALVE, OIL PUMP RELIEF.
