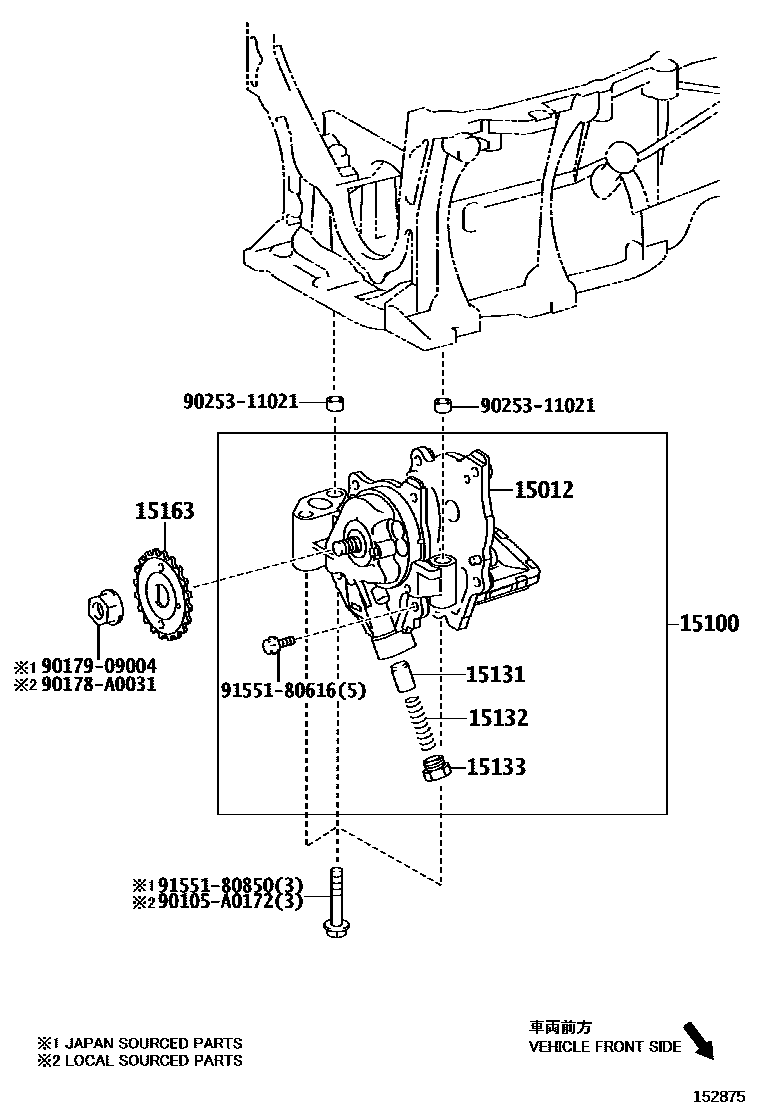

Toyota COROLLA — ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-0T010i201308-201408

(L)

main15012-37010i201308-201408

(J)

15100PUMP ASSY, OIL

main15100-0T010i201608

(L)

main15100-0T050i201608-201801

(L)

main15100-0T090i201802

(L)

main15100-37021i201608

(J)

main15100-37030i201308-201608

(J)

15131VALVE, OIL PUMP RELIEF

main15131-0A040i201308-201408

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i201308-201408

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i201308-201408

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i201308-201408

(L)

main15163-28010i201308-201608

(J)

90105A0172

main90105-A0172

90178A0031

main90178-A0031

9017909004

main90179-09004

9025311021

main90253-11021

9155180616

main91551-80616

9155180850

main91551-80850

12 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota COROLLA

This section contains 12 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota COROLLA. Key components include: COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, VALVE, OIL PUMP RELIEF, SPRING, OIL PUMP RELIEF VALVE, PLUG, OIL PUMP RELIEF VALVE.
