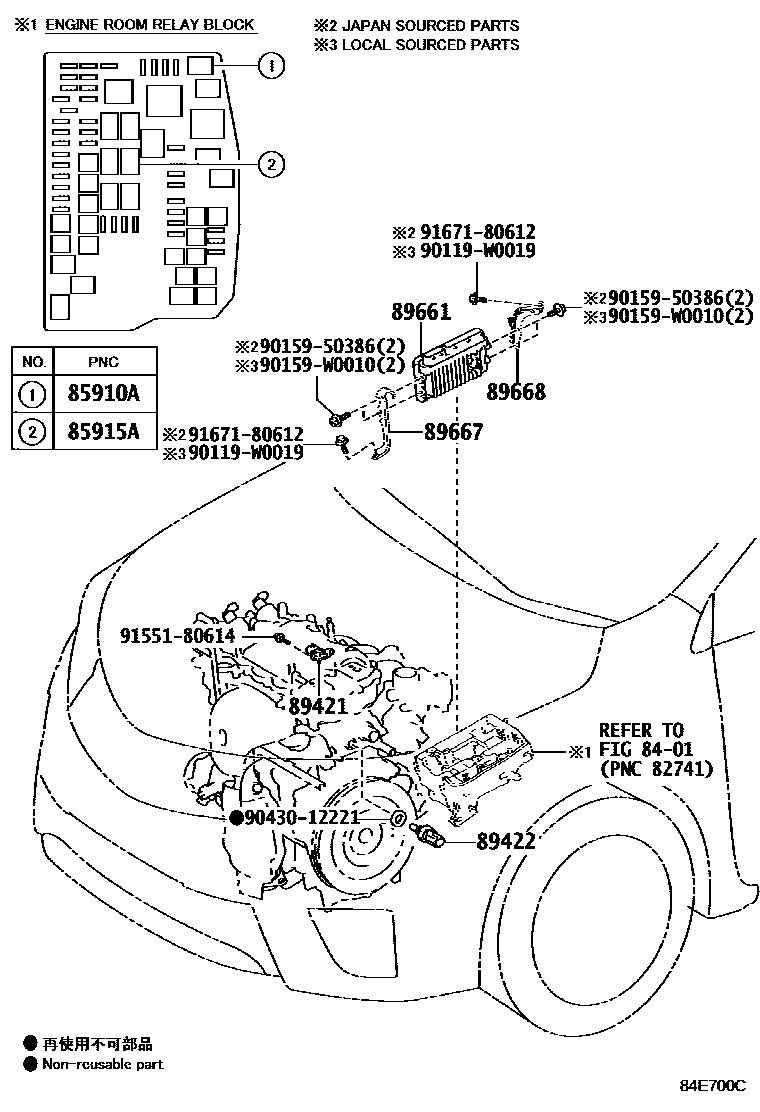

Toyota COROLLA — ELECTRONIC FUEL INJECTION SYSTEM
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
DENSO
DENSO,P/N LABEL=896610ZZ90
DENSO,P/N LABEL=8966602370
DENSO,P/N LABEL=8966602380
DENSO,P/N LABEL=8966602390
EXHAUST EMISSION CONTROL-EURO 5+ WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5+ WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5+ WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5+ WITH(ON BOARD DIAGNOSIS)
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
90119W0019
main90119-W0019
9015950386
main90159-50386
90159W0010
main90159-W0010
9043012221
main90430-12221
9155180614
main91551-80614
9167180612
main91671-80612
14 parts on this diagram · 2 diagrams in section
