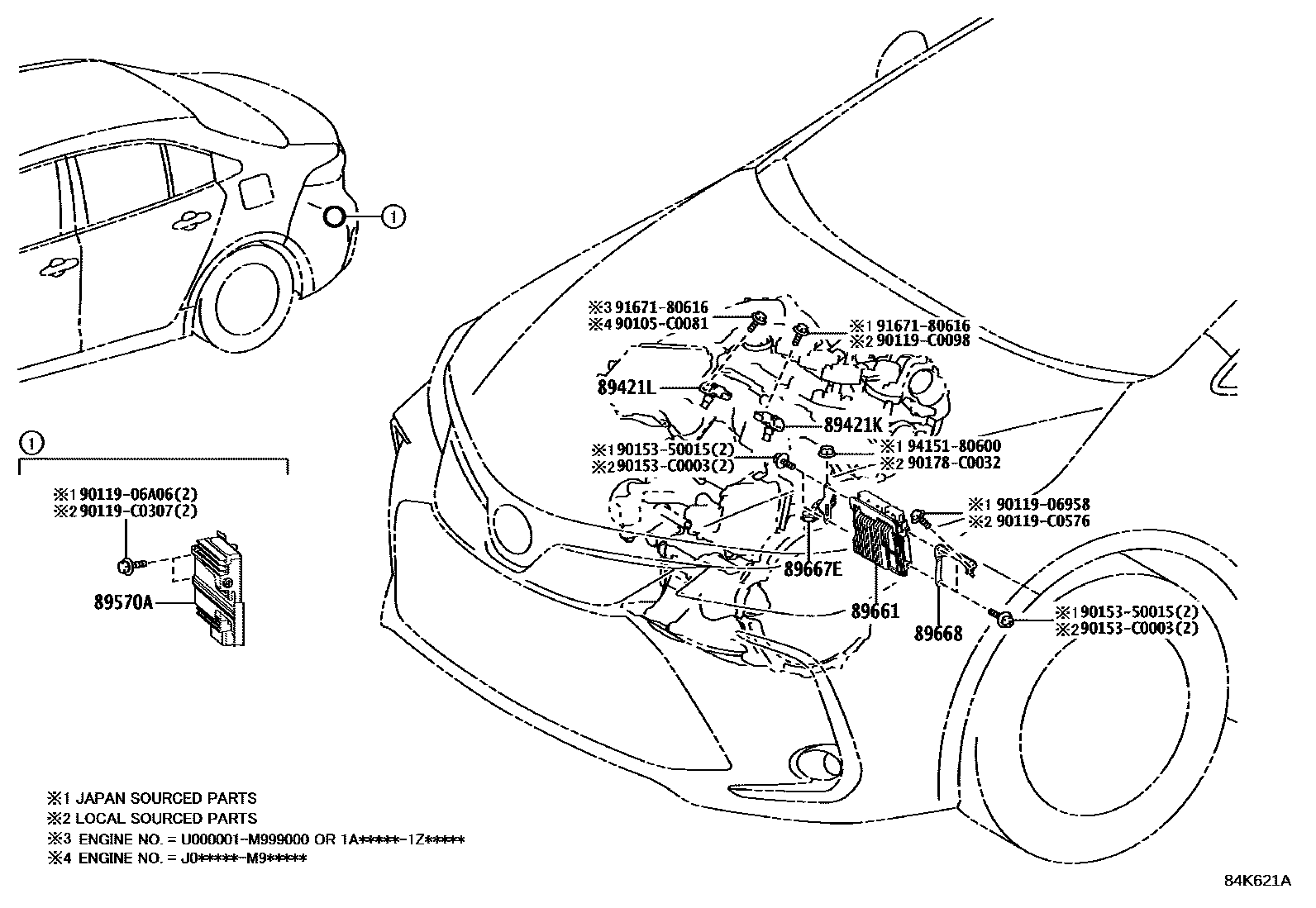

Toyota COROLLA — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZWE219202305

main89421-33010iMZEA11202101-202304

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-02040iNRE210..HI202007-202304

(L)

main89421-78010iNRE210..HI202007-202304

(J)

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-02040iNRE210..HI202007-202304

(L)

main89421-78010iNRE210..ENTRY,MID201908

(J)

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-12430iNRE210..HI201908-202006

89661COMPUTER, ENGINE CONTROL

main89661-0ZR50iMZEA11..6F202101-202304

DENSO

main89666-02720supersedes 89666-02700iNRE210202007-202112

DENSO

main89666-02731iMZEA11..CVT202101-202304

DENSO

main89666-02D10iNRE210..HI202112-202304

DENSO

main89666-02E30iMZEA17202306

DENSO,*614

main89666-02E70iZWE219202305

HITACHI ASTEMO,*614

main89666-02J70iNRE210..ENTRY,MID202305

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02640iZWE211201908-202304

main89667-02650iNRE210..HI201908-202304

main89667-02700iZWE219202305

main89667-F4060iMZEA11202101-202304

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02630iZWE211201908-202304

main89668-02640iNRE210..HI201908-202304

main89668-02690iZWE219202305

main89668-F4080iMZEA11202101-202304

90105C0081

main90105-C0081

9011906958

main90119-06958

9011906A06

main90119-06A06

90119C0098

main90119-C0098

90119C0307

main90119-C0307

90119C0576

main90119-C0576

9015350015

main90153-50015

90153C0003

main90153-C0003

90178C0032

main90178-C0032

9167180616

main91671-80616

9415180600

main94151-80600

18 parts on this diagram · 4 diagrams in section
