Toyota COROLLA — ELECTRONIC FUEL INJECTION SYSTEM

Parts diagram

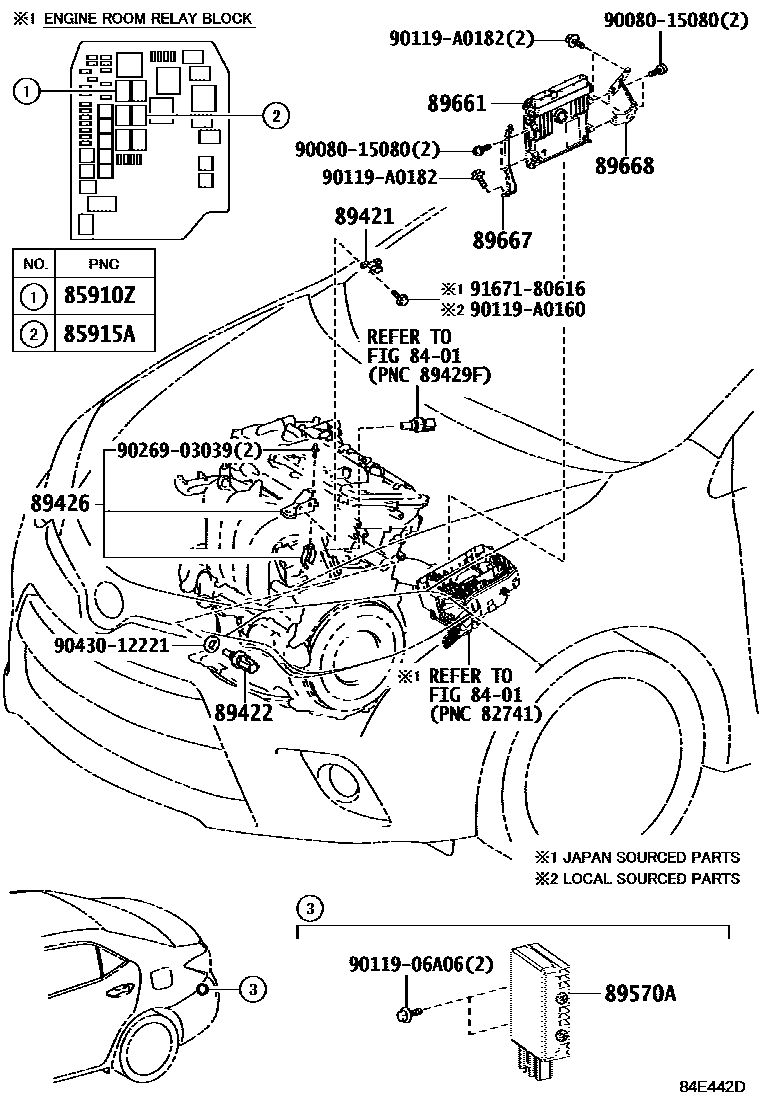

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ZRELAY, INJECTION (FOR EFI)

main90080-87026i201608

85915ARELAY, MAIN

main90080-87026i201308-201408

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030i201608

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i201308-201408

89426BRACKET, VACUUM SENSOR

main89426-13020i201608

(J)

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-12390i201608

89661COMPUTER, ENGINE CONTROL

main89661-0Z670i201408-201608

main89661-0Z680i201408-201608

main89661-0Z690i201408-201608

main89661-0ZB70i201308-201404

main89661-0ZB71i201405-201408

main89661-0ZB80i201308-201404

main89661-0ZB81i201405-201408

main89661-0ZE00i201404-201408

main89661-0ZE01i201608-201708

main89661-0ZE10i201404-201408

main89661-0ZE11i201608-201708

main89661-0ZE20i201404-201408

main89661-0ZE21i201608-201708

main89661-0ZR80i201608

main89661-0ZR90i201608

main89661-0ZS00i201608

main89666-02650i201708

main89666-02660i201708

main89666-02670i201708

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02320i201308-201408

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02300i201308-201408

9008015080

main90080-15080

9011906A06

main90119-06A06

90119A0160

main90119-A0160

90119A0182

main90119-A0182

9026903039

main90269-03039

9043012221

main90430-12221

9167180616

main91671-80616

17 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota COROLLA

This section contains 17 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COROLLA. Key components include: SWITCH & RELAY & COMPUTER, RELAY, INJECTION (FOR EFI), RELAY, MAIN, SENSOR ASSY, VACUUM (FOR E.F.I.), SENSOR, WATER TEMPERATURE (FOR E.F.I.).
