Toyota COROLLA — DAYTIME RUNNING LAMP OR ILLUMINATION LAMP

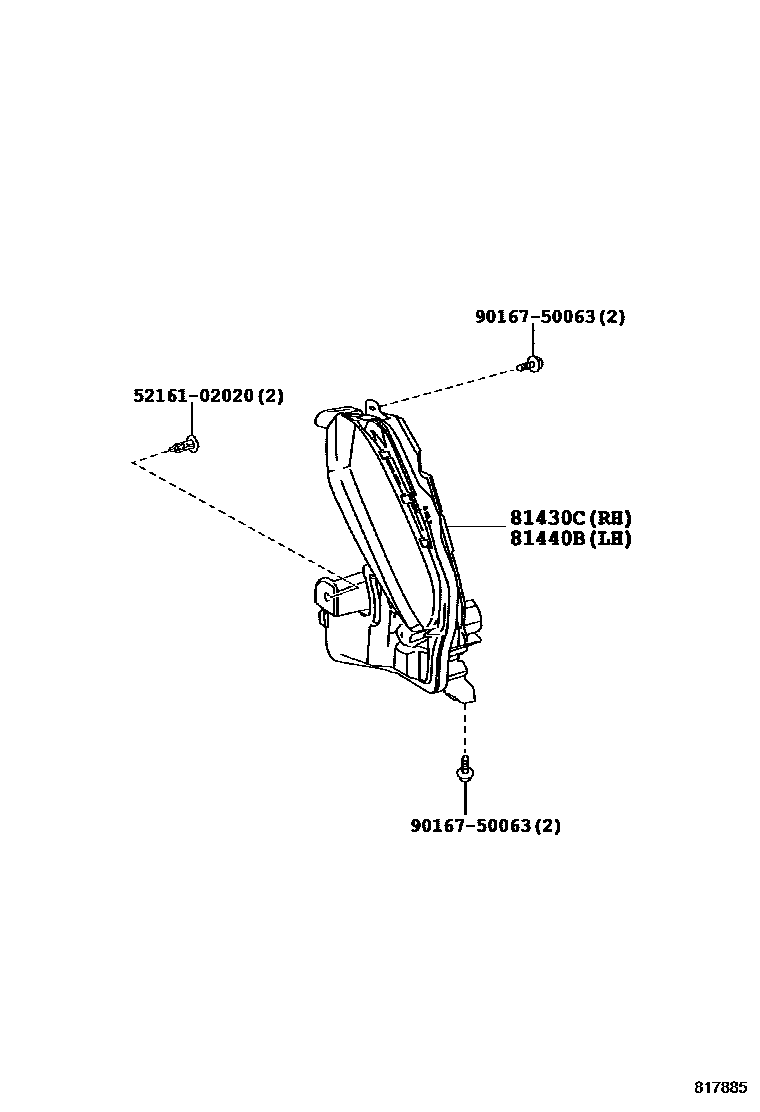

Parts diagram
81430CLAMP ASSY, DAYTIME RUNNING, RH
main81430-02030i201608
main81430-02020i201608
PLUS1 PACKAGE; PLUS2 PACKAGE
81440BLAMP ASSY, DAYTIME RUNNING, LH
main81440-02030i201608
main81440-02020i201608
PLUS1 PACKAGE; PLUS2 PACKAGE
5216102020CUSHION, REAR BUMPER GUARD, NO.1
main52161-02020
9016750063
main90167-50063

4 parts on this diagram · 2 diagrams in section

DAYTIME RUNNING LAMP OR ILLUMINATION LAMP for Toyota COROLLA

This section contains 4 genuine Toyota parts for the DAYTIME RUNNING LAMP OR ILLUMINATION LAMP system of the Toyota COROLLA. Key components include: LAMP ASSY, DAYTIME RUNNING, RH, LAMP ASSY, DAYTIME RUNNING, LH, CUSHION, REAR BUMPER GUARD, NO.1.
