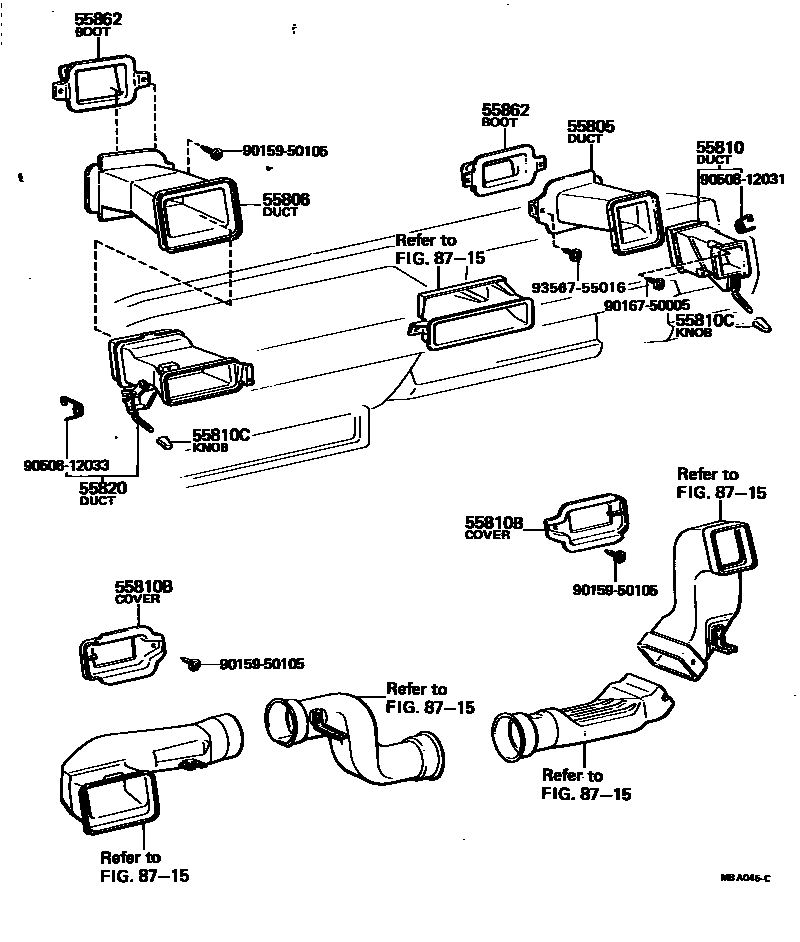

Toyota COROLLA — COWL VENTILATOR
55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55810DUCT ASSY, SIDE VENTILATOR, RH
55810BCOVER, SIDE VENTILATOR
RH
LH
55810CKNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)
BLACK
55820DUCT ASSY, SIDE VENTILATOR, LH
55862BOOT, SIDE VENTILATOR
main55863-12020iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD; AE71,CE70,KE70,TE71..(DV,SED,WG)..LHD197908-198707
LH; RH
RH
main55864-12020iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD; AE71,CE70,KE70,TE71..(DV,SED,WG)..LHD197908-198707
LH; RH
LH
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9015950105
main90159-50105
9016750005
main90167-50005
9050812031
main90508-12031
9050812033
main90508-12033
9356755016
main93567-55016
13 parts on this diagram · 4 diagrams in section
COWL VENTILATOR for Toyota COROLLA
This section contains 17 genuine Toyota parts for the COWL VENTILATOR system of the Toyota COROLLA. Key components include: DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH, DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH, DUCT ASSY, SIDE VENTILATOR, RH, COVER, SIDE VENTILATOR, KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT).
