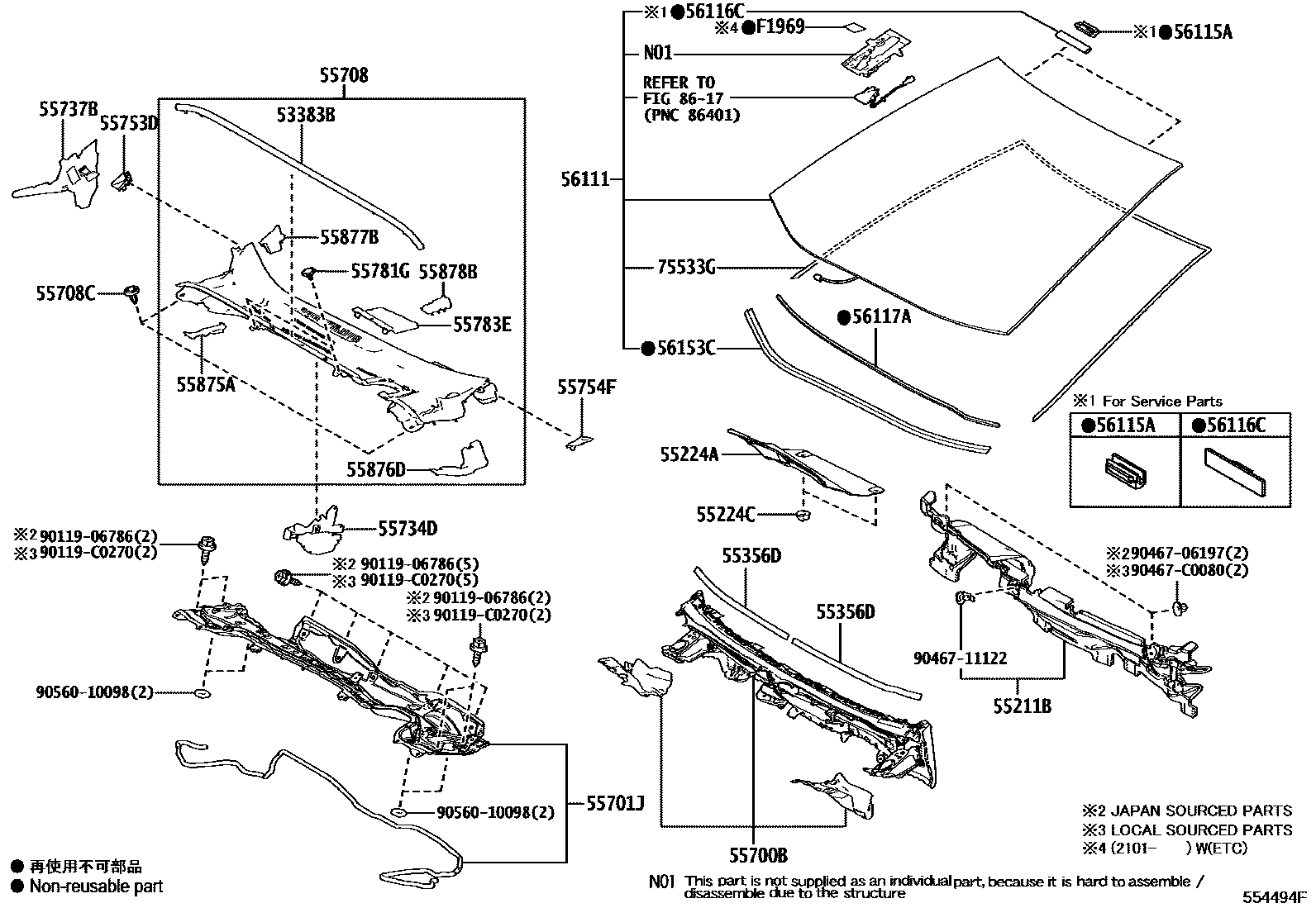

Toyota COROLLA — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

53383BSEAL, HOOD TO COWL TOP

main53383-02330iNRE210..HI201908-202006

55211BSILENCER, FRONT PANEL

main55211-02370iNRE210..ENTRY,MID201908

main55211-02420iMZEA11,ZWE211201908-202304

main55211-12790iMZEA17,ZWE219202305

(J)

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-02310iNRE210..HI201908-202006

55224CCLIP, DASH PANEL INSULATOR

main90467-06206-C0×4iNRE210..HI202007-202011

BLACK,(J)

main90467-C0052-C0×4iNRE210..HI202007-202011

BLACK,(L)

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-02560×2iMZEA11,ZWE211201908-202304

55700BCOWL ASSY

main55700-02750iMZEA17,ZWE219202305-202308

main55700-02751iMZEA17,ZWE219202309

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02690iMZEA11,ZWE211201908-202304

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02B40iNRE210..HI202007-202304

main55708-02C80iMZEA17,ZWE219202305-202312

main55708-02C81iNRE210..ENTRY,MID202401-202512

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iNRE210,ZWE211201908-202002

main90467-C0071×2iNRE210..ENTRY,MID202002

(L)

55734DPLATE, WATER GUARD

main55734-02490iZWE211;NRE210..ENTRY,MID201908-202002

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02320iZWE211;NRE210..ENTRY,MID201908-202002

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-02250iNRE210..HI201908-202006

main55753-02300iNRE210..ENTRY,MID202305-202512

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-02260iNRE210..HI201908-202006

main55754-02310iNRE210..ENTRY,MID202305-202512

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07224×2iNRE210..HI201908-202006

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-02390iNRE210..HI201908-202006

main55783-02470iMZEA17,ZWE219202305

55875ASEAL, AIR DUCT, NO.5

main55875-02280iNRE210..HI201908-202006

55876DSEAL, AIR DUCT, NO.6

main55876-02190iNRE210..HI201908-202006

55877BCOVER, COWL VENT, RH

main55877-02340iNRE210..HI201908-202006

55878BCOVER, COWL VENT, LH

main55878-02280iNRE210..HI201908-202006

56111GLASS, WINDSHIELD

main56101-0Z510iMZEA11,ZWE211201908-202304

MARK=CCC E006888

main56101-0Z520iMZEA11,ZWE211201908-202304

MARK=CCC E000546

main56101-0ZD30iMZEA17,ZWE219202305

MARK=CCC E006888

main56101-0ZG20iMZEA17,ZWE219202305

MARK=CCC E008925

main56101-0ZK30iNRE210..MID202305-202512

MARK=CCC E006888

main56101-0ZK40iNRE210..MID202305-202512

MARK=CCC E000546

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNRE210..HI202007-202304

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMZEA17,ZWE219202305

56117ADAM, WINDOW GLASS ADHESIVE

main56117-02360iNRE210..HI201908-202006

L=1298

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-02120iNRE210..HI201908-202006

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-02260iMZEA11,ZWE211201908-202304

GLASS MARK=E006888

main75533-02270iNRE210..HI202007-202304

GLASS MARK=E000546

8617

F1969TAPE, SEAL(FOR TOLL COLLECTION COMPUTER)

mainF1969YY010iMZEA11202101-202303

ETC-WITH

9011906786

main90119-06786

90119C0270

main90119-C0270

9046706197

main90467-06197

9046711122

main90467-11122

90467C0080

main90467-C0080

9056010098

main90560-10098

33 parts on this diagram · 3 diagrams in section
