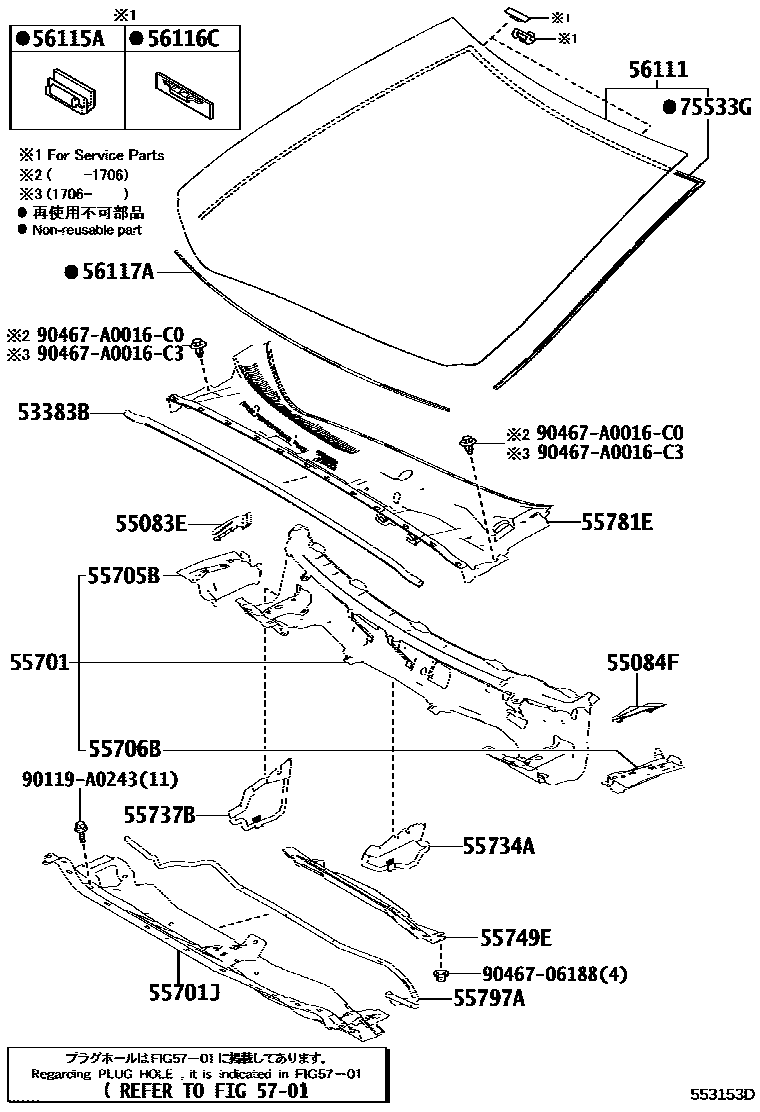

Toyota COROLLA — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-02180iZRE172..4FC201308-201408

55083EVENTILATOR SUB-ASSY, COWL SIDE, RH

main55083-02010iZRE172..4FC201308-201408

55084FVENTILATOR SUB-ASSY, COWL SIDE, LH

main55084-02250iZRE172..4FC201308-201408

55701PANEL SUB-ASSY, COWL

main55700-02491iZRE172..4FC201308-201408

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02360iZRE172..4FC201308-201408

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02121iZRE172..4FC201308-201408

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02121iZRE172..4FC201308-201408

55734APLATE, WATER GUARD, RH

main55734-02200iZRE172..4FC201308-201408

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02120iZRE172..4FC201308-201408

55749EPLATE, COWL TOP INSULATOR, NO.2

main55749-02100iZRE172..4FC201308-201408

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02550iZRE172..4FC201308-201408

55797ASEAL, COWL WATER EXTRACT

main55797-02080iZRE172..4FC201308-201408

56111GLASS, WINDSHIELD

main56101-02C50iZRE172..4FC201308-201408

main56101-02C51iZRE172201803

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2iZRE172..4FC201308-201408

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iZRE172..4FC201308-201408

56117ADAM, WINDOW GLASS ADHESIVE

main90998-91004iZRE172201308-201608

L=1262

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-02210iZRE172..4FC201308-201408

90119A0243

main90119-A0243

9046706188

main90467-06188

90467A0016C0

main90467-A0016C0

90467A0016C3

main90467-A0016C3

22 parts on this diagram · 1 diagram in section
