Toyota COROLLA — CLUTCH & RELEASE FORK

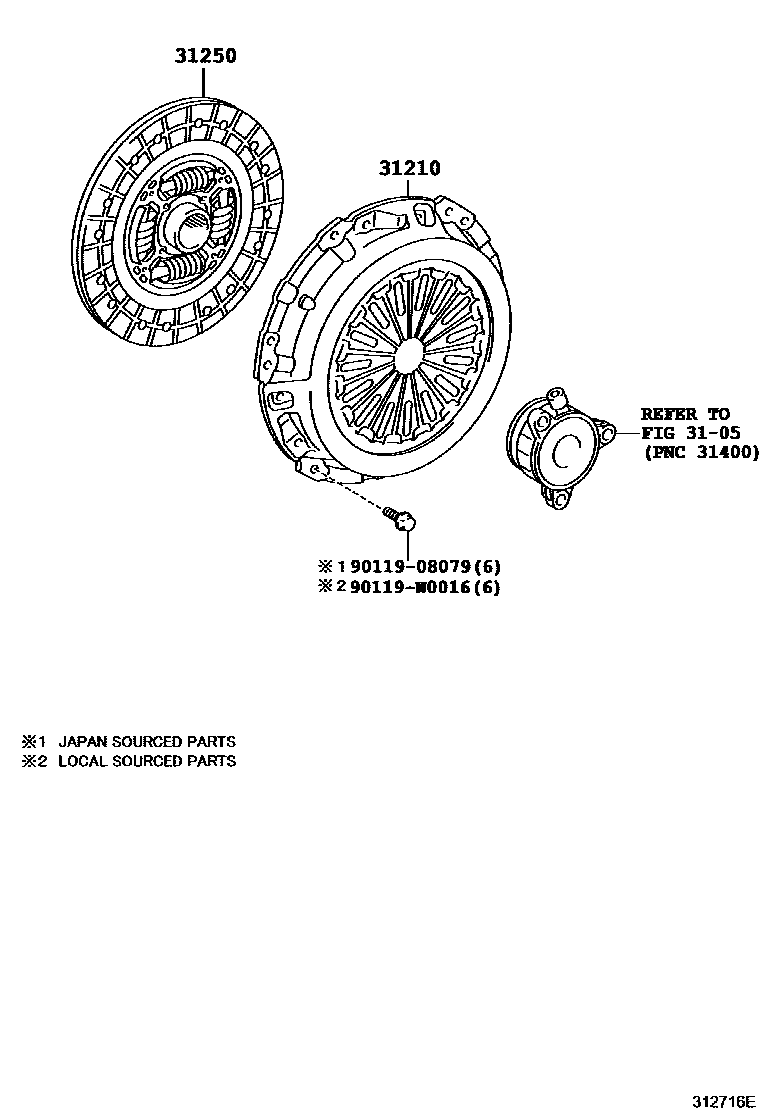

Parts diagram

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31210COVER ASSY, CLUTCH

main31210-05130i201401-201504

main31210-05131i201606-201705

main31210-05132i201706-201901

main31210-52100i201606-201912

main31210-52130i201401-201407

main31210-52170i201606-201808

31250DISC ASSY, CLUTCH

main31250-05140i201401-201504

main31250-05141i201912

main31250-52131i201306-201605

main31250-52132i201707-201802

main31250-52133i201803-201912

main31250-52210i201401-201603

main31250-52211i201606-201612

main31250-52212i201701-201808

9011908079

main90119-08079

90119W0016

main90119-W0016

5 parts on this diagram · 3 diagrams in section

CLUTCH & RELEASE FORK for Toyota COROLLA

This section contains 5 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COROLLA. Key components include: CLUTCH RELEASE CYLINDER, COVER ASSY, CLUTCH, DISC ASSY, CLUTCH.
