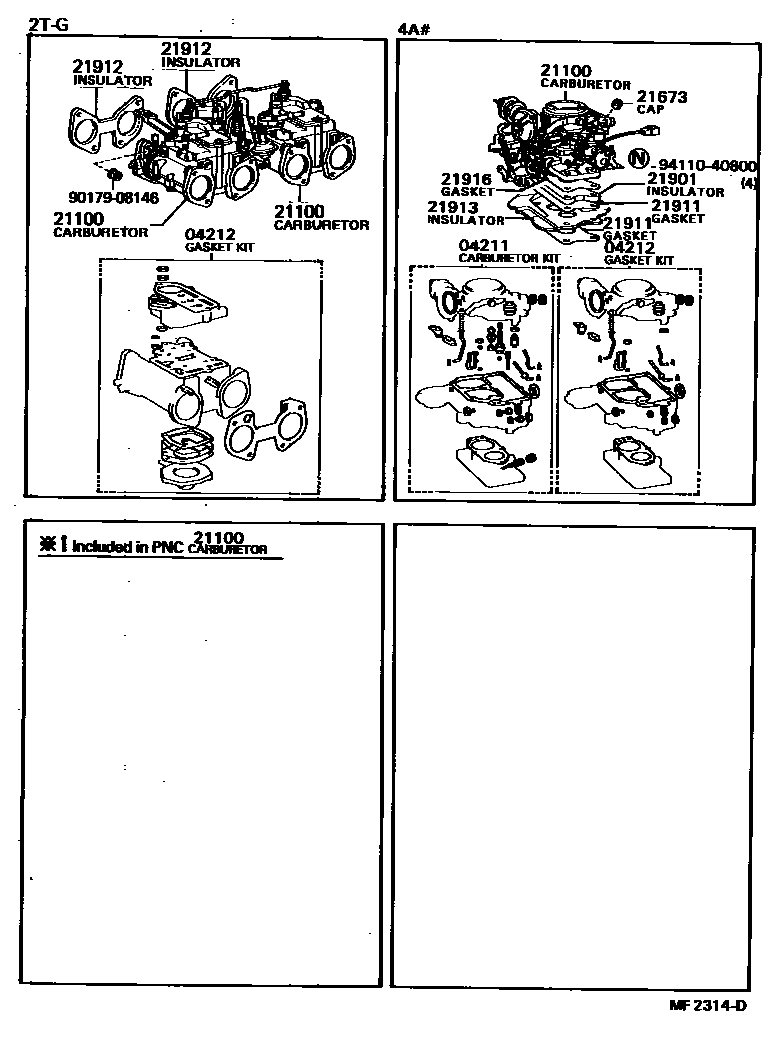

Toyota COROLLA — CARBURETOR ASSEMBLY
04211CARBURETOR KIT
RR
FR
04212GASKET KIT, CARBURETOR
21100CARBURETOR ASSY
main21100-13170i4K..KE70..CP..5F..GEN;4K..KE70..CP..LHD..4F..GEN;4K..KE70..(DV,LB,SED,WG)..MTM..(GEN,SA)197908-198108
FR
RR
FR
RR
FR
RR
FR
RR
FR
RR
21673CAP, IDLE LIMIT
21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21911GASKET, CARBURETOR
21912INSULATOR, CARBURETOR HEAT
21913INSULATOR, CARBURETOR HEAT, NO.2
21916GASKET, CARBURETOR, NO.2
9017908146
main90179-08146
9411040800
main94110-40800
11 parts on this diagram · 2 diagrams in section
CARBURETOR ASSEMBLY for Toyota COROLLA
This section contains 13 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota COROLLA. Key components include: CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR ASSY, CAP, IDLE LIMIT, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1.
