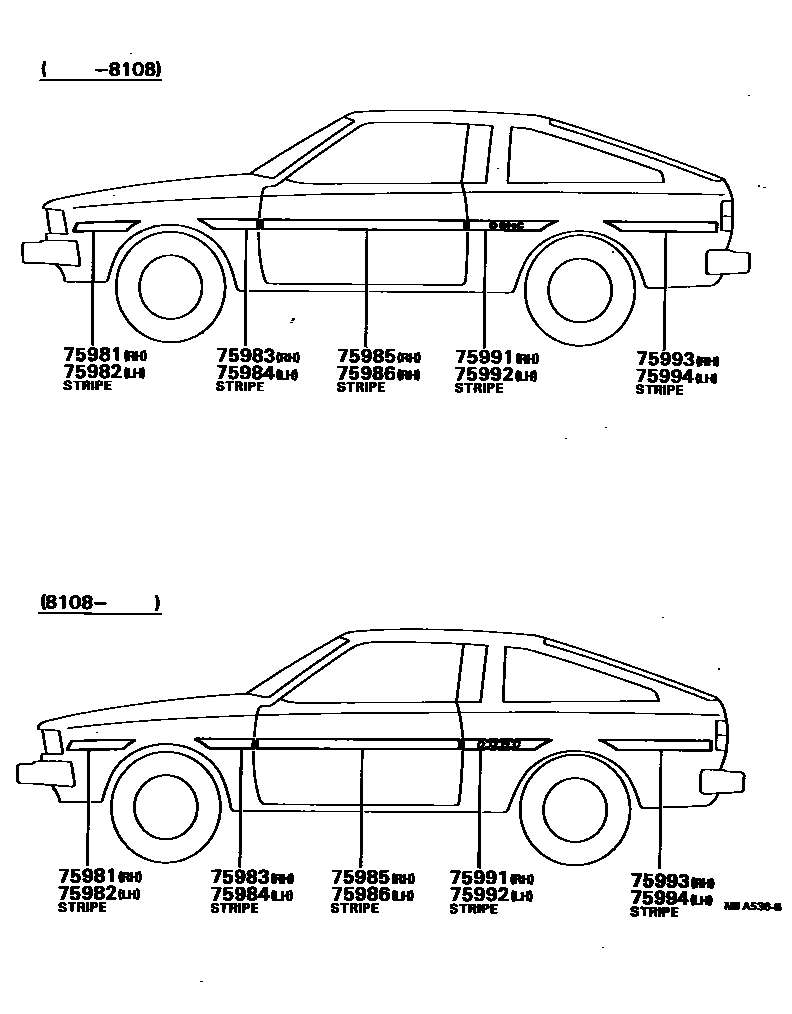

Toyota COROLLA — BODY STRIPE

75981STRIPE, FRONT FENDER, RH NO.1

main75981-12240i197908-198108

BLACK

main75981-12330-01i198201-198206

CAMPAIGN,BLACK & SILVER,BLACK

main75981-12330-03i198205-198305

SILVER & BLUE,GRAY

main75981-12340i198108-198305

main75981-12946i197908-198108

ORANGE

75982STRIPE, FRONT FENDER, LH NO.1

main75982-12240i197908-198108

BLACK

main75982-12330-01i198201-198206

CAMPAIGN,BLACK & SILVER,BLACK

main75982-12330-03i198201-198206

CAMPAIGN,SILVER&BLUE,GRAY

main75982-12340i198108-198305

main75982-12901i197908-198108

ORANGE

75983STRIPE, FRONT FENDER, RH NO.2

main75983-12150i197908-198108

BLACK

main75983-12220-01i198201-198206

CAMPAIGN,BLACK & SILVER,BLACK

main75983-12220-03i198211-198302

CAMPAIGN,SILVER & BLUE,SWEDEN,GRAY

main75983-12240i198108-198305

main75983-12900i197908-198108

ORANGE

75984STRIPE, FRONT FENDER, LH NO.2

main75984-12150i197908-198108

BLACK

main75984-12220-01i198201-198206

CAMPAIGN,BLACK & SILVER,BLACK

main75984-12220-03i198205-198305

SILVER & BLUE,GRAY

main75984-12240i198108-198305

main75984-12900i197908-198108

ORANGE

75985STRIPE, FRONT DOOR, RH

main75985-12140i197908-198108

BLACK

main75985-12220-01i198205-198305

BLACK & SILVER,BLACK

main75985-12220-03i198205-198305

SILVER & BLUE,GRAY

main75985-12240i198108-198305

main75985-12300i198205-198305

main75985-12900i197908-198108

ORANGE

75986STRIPE, FRONT DOOR, LH

main75986-12130i197908-198108

BLACK

main75986-12210-01i198205-198305

BLACK & SILVER,BLACK

main75986-12210-03i198211-198302

CAMPAIGN,SILVER & BLUE,SWEDEN,GRAY

main75986-12230i198108-198305

main75986-12290i198205-198305

main75986-12900i197908-198108

ORANGE

75991STRIPE, QUARTER, RH NO.1

main75991-12190i198011-198101

ORANGE & BLACK

main75991-12190-01i197908-198011

BLACK & WHITE,BLACK

main75991-12190-06i197908-198011

ORANGE & BLACK,BROWN

main75991-12191i198101-198108

ORANGE & BLACK

main75991-12220i198011-198101

BLACK & WHITE

main75991-12221i198101-198108

BLACK & WHITE

main75991-12290-01i198205-198305

BLACK & SILVER,BLACK

main75991-12290-03i198211-198302

CAMPAIGN,SILVER & BLUE,SWEDEN,GRAY

main75991-12300i198108-198305

main75991-12390i198205-198305

75992STRIPE, QUARTER, LH NO.1

main75992-12180i198011-198101

ORANGE & BLACK

main75992-12180-01i197908-198011

BLACK & WHITE,BLACK

main75992-12180-06i197908-198011

ORANGE & BLACK,BROWN

main75992-12181i198101-198108

ORANGE & BLACK

main75992-12210i198011-198101

BLACK & WHITE

main75992-12211i198101-198108

BLACK & WHITE

main75992-12280-01i198205-198305

BLACK & SILVER,BLACK

main75992-12280-03i198211-198302

CAMPAIGN,SILVER & BLUE,SWEDEN,GRAY

main75992-12290i198108-198305

main75992-12380i198205-198305

75993STRIPE, QUARTER, RH NO.2

main75991-12290-01i198205-198305

BLACK & SILVER,BLACK

main75991-12290-03i198205-198305

SILVER & BLUE,GRAY

main75993-12080i197908-198108

BLACK

main75993-12160i198108-198305

main75993-12900i197908-198108

ORANGE

75994STRIPE, QUARTER, LH NO.2

main75992-12280-01i198205-198305

BLACK & SILVER,BLACK

main75992-12280-03i198205-198305

SILVER & BLUE,GRAY

main75994-12080i197908-198108

BLACK

main75994-12160i198108-198305

main75994-12900i197908-198108

ORANGE

10 parts on this diagram · 2 diagrams in section

BODY STRIPE for Toyota COROLLA

This section contains 12 genuine Toyota parts for the BODY STRIPE system of the Toyota COROLLA. Key components include: STRIPE, FRONT FENDER, RH NO.1, STRIPE, FRONT FENDER, LH NO.1, STRIPE, FRONT FENDER, RH NO.2, STRIPE, FRONT FENDER, LH NO.2, STRIPE, FRONT DOOR, RH.
