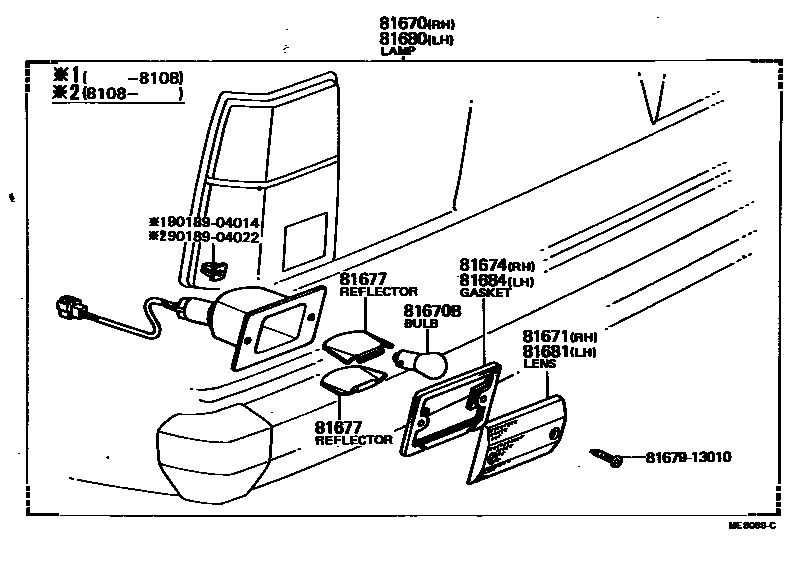

Toyota COROLLA — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-19085i197908-198707

81670BBULB(FOR BACK-UP LAMP)

main99132-11210×2i197908-198707

12V 21W,12V 21W

81671LENS, BACK-UP LAMP, RH

main81671-13010i197908-198707

81674GASKET, BACK-UP LAMP BODY, RH

main81674-13010i197908-198707

81677REFLECTOR, BACK-UP LAMP

main81677-13010×4i197908-198707

81680LAMP ASSY, BACK UP, LH

main81670-19085i197908-198707

81681LENS, BACK-UP LAMP, LH

main81671-13010i197908-198707

81684GASKET, BACK UP LAMP BODY, LH

main81674-13010i197908-198707

8167913010BRACKET, BACK UP LAMP BODY

main81679-13010

9018904014

main90189-04014

9018904022

main90189-04022

11 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota COROLLA

This section contains 11 genuine Toyota parts for the BACK UP LAMP system of the Toyota COROLLA. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP BODY, RH, REFLECTOR, BACK-UP LAMP.
