Toyota COROLLA — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-02310-C0iNDE180..D..TUP201306-201605

BLACK,TRIM0#,2#

main74210-02310-C2iNRE180..D..TUP201606-201808

BLACK,TRIM0#,2#

main74210-02320-C1iZRE181..CVT..N..GEN..SAP201401-201701

BLACK,TRIM0#,2#

main74210-02320-C4supersedes 74210-02330-C2iZRE181..CVT..N..GEN..SAP201701-201912

BLACK,TRIM0#,2#

main74210-02330-C3iZRE182..N201912

BLACK/RED,TRIM3#

main74210-02510-C0iNDE180,NRE180,ZRE18#..D..SAP201401-201701

BLACK,TRIM2#

main74210-02510-C1iZRE182..D201912

BLACK,TRIM2#

main74210-02290-C3supersedes 74210-02300-C3iNDE180..N..TUP201306-201605

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM0#,2#

main74210-02290-C8supersedes 74210-02300-C8iNDE180,NRE180,ZRE18#..N..TUP201606-201608

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM01,21

main74210-02290-C9supersedes 74210-02300-C7iNRE180..N..TUP201608-201808

SEAT COVER MATERIAL-LEATHER & FABRIC,EU BLACK,TRIM0#,2#

main74210-02330-C1iNDE180,NRE180,ZRE18#..N..SAP201401-201505

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-02280-C0iNDE180..D..TUP201306-201605

BLACK,TRIM0#,2#

main74220-02280-C2iNRE180..D..TUP201606-201808

BLACK,TRIM0#,2#

main74220-02290-C1iZRE181..CVT..N..GEN..SAP201401-201701

BLACK,TRIM0#,2#

main74220-02290-C4supersedes 74220-02300-C2iZRE181..CVT..N..GEN..SAP201701-201912

BLACK,TRIM0#,2#

main74220-02300-C3iZRE182..N201912

BLACK/RED,TRIM3#

main74220-02480-C0iNDE180,NRE180,ZRE18#..D..SAP201401-201701

BLACK,TRIM2#

main74220-02480-C1iNDE180,NRE180,ZRE18#..D..SAP201701-201912

BLACK,TRIM2#

main74220-02260-C3supersedes 74220-02270-C3iNDE180..N..TUP201306-201605

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM0#,2#

main74220-02260-C8supersedes 74220-02270-C8iNDE180,NRE180,ZRE18#..N..TUP201606-201608

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM01,21

main74220-02260-C9supersedes 74220-02270-C7iNRE180..N..TUP201608-201808

SEAT COVER MATERIAL-LEATHER & FABRIC,EU BLACK,TRIM0#,2#

main74220-02300-C1iNDE180,NRE180,ZRE18#..N..SAP201401-201505

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02D10-C0iNDE180..TUP201306-201505

BLACK,TRIM0#,2#

main74231-02D60-C0iNDE180..TUP201505-201605

EU BLACK,TRIM0#,2#

main74231-02E30-C0iZRE182..(D,G)..SA201912

BLACK,TRIM2#

main74231-02E40-C0iZRE182..N..GEN201912

BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02D70-C1supersedes 74232-02E40-C0iNDE180,ZRE18#..D..TUP201606-201901

EU BLACK,TRIM0#,2#

main74232-02E40-C0supersedes 74232-02D70-C1iNDE180,ZRE18#..N..TUP201606-201901

EU BLACK,TRIM0#,2#

main74232-02E80-C0iNDE180,NRE180,ZRE18#..SA201701-201912

BLACK,TRIM2#

main74232-02F00-C0iZRE181..CVT..N..GEN..SAP201401-201701

BLACK,TRIM0#,2#

74250ARMREST ASSY, REAR RH

main74250-02330-C3iZRE181..CVT..N..GEN..SAP201401-201701

BLACK,TRIM0#,2#

main74250-02330-C6supersedes 74250-02350-C4iZRE181..CVT..N..GEN..SAP201701-201912

BLACK,TRIM0#,2#

main74250-02350-C5iZRE182..N201912

BLACK/RED,TRIM3#

main74250-02410-C2iNDE180..D..TUP201306-201605

BLACK,TRIM0#,2#

main74250-02410-C4iNDE180,ZRE18#..D..TUP201606-201901

BLACK,TRIM0#,2#

main74250-02610-C0iNDE180,NRE180,ZRE18#..D..SAP201401-201701

BLACK,TRIM2#

main74250-02610-C1iNDE180,NRE180,ZRE18#..D..SAP201701-201912

BLACK,TRIM2#

main74250-02350-C3iNDE180,NRE180,ZRE18#..N..SAP201505-201701

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM2#

main74250-02420-20supersedes 74250-02250-C9iNRE180..N..TUP201608-201808

SEAT COVER MATERIAL-LEATHER & FABRIC,EU BLACK,TRIM0#,2#

main74250-02420-C4supersedes 74250-02250-C5iNDE180..N..TUP201306-201605

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM0#,2#

main74250-02420-C9supersedes 74250-02250-C9iNDE180,NRE180,ZRE18#..N..TUP201606-201608

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM01,21

74260ARMREST ASSY, REAR LH

main74260-02300-C3iZRE181..CVT..N..GEN..SAP201401-201701

BLACK,TRIM0#,2#

main74260-02300-C6supersedes 74260-02320-C4iZRE181..CVT..N..GEN..SAP201701-201912

BLACK,TRIM0#,2#

main74260-02320-C5iZRE182..N201912

BLACK/RED,TRIM3#

main74260-02400-C2iNDE180..D..TUP201306-201605

BLACK,TRIM0#,2#

main74260-02400-C4iNRE180..D..TUP201606-201808

BLACK,TRIM0#,2#

main74260-02610-C0iNDE180,NRE180,ZRE18#..D..SAP201401-201701

BLACK,TRIM2#

main74260-02610-C1iNDE180,NRE180,ZRE18#..D..SAP201701-201912

BLACK,TRIM2#

main74260-02320-C3iNDE180,NRE180,ZRE18#..N..SAP201505-201701

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM2#

main74260-02410-20supersedes 74260-02220-C9iNRE180..N..TUP201608-201808

SEAT COVER MATERIAL-LEATHER & FABRIC,EU BLACK,TRIM0#,2#

main74260-02410-C4supersedes 74260-02220-C5iNDE180..N..TUP201306-201605

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM0#,2#

main74260-02410-C9supersedes 74260-02220-C9iNDE180,NRE180,ZRE18#..N..TUP201606-201608

SEAT COVER MATERIAL-LEATHER & FABRIC,BLACK,TRIM01,21

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02620-C1supersedes 74271-02760-C1iNDE180,ZRE18#..N..TUP201606-201901

EU BLACK,TRIM0#,2#

main74271-02670-C0iZRE182..N201912

BLACK,TRIM2#

main74271-02760-C1supersedes 74271-02620-C1iNDE180,ZRE18#..D..TUP201606-201901

EU BLACK,TRIM0#,2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02620-C1supersedes 74272-02760-C1iNDE180,ZRE18#..N..TUP201606-201901

EU BLACK,TRIM0#,2#

main74272-02670-C0iZRE181..CVT..N..GEN..SAP201701-201912

BLACK,TRIM0#,2#

main74272-02760-C1supersedes 74272-02620-C1iNDE180,ZRE18#..D..TUP201606-201901

EU BLACK,TRIM0#,2#

74611QCLIP

main67773-02020×2iNDE180..TUP201312-201403

main67773-07020×2iNDE180..TUP201403-201605

74635ACLIP

main67773-02020×2iNDE180..TUP201312-201403

main67773-07020×2iNDE180..TUP201403-201605

5541660030STOPPER,LIGHT CONTROL SWITCH

main55416-60030

6777307020

main67773-07020

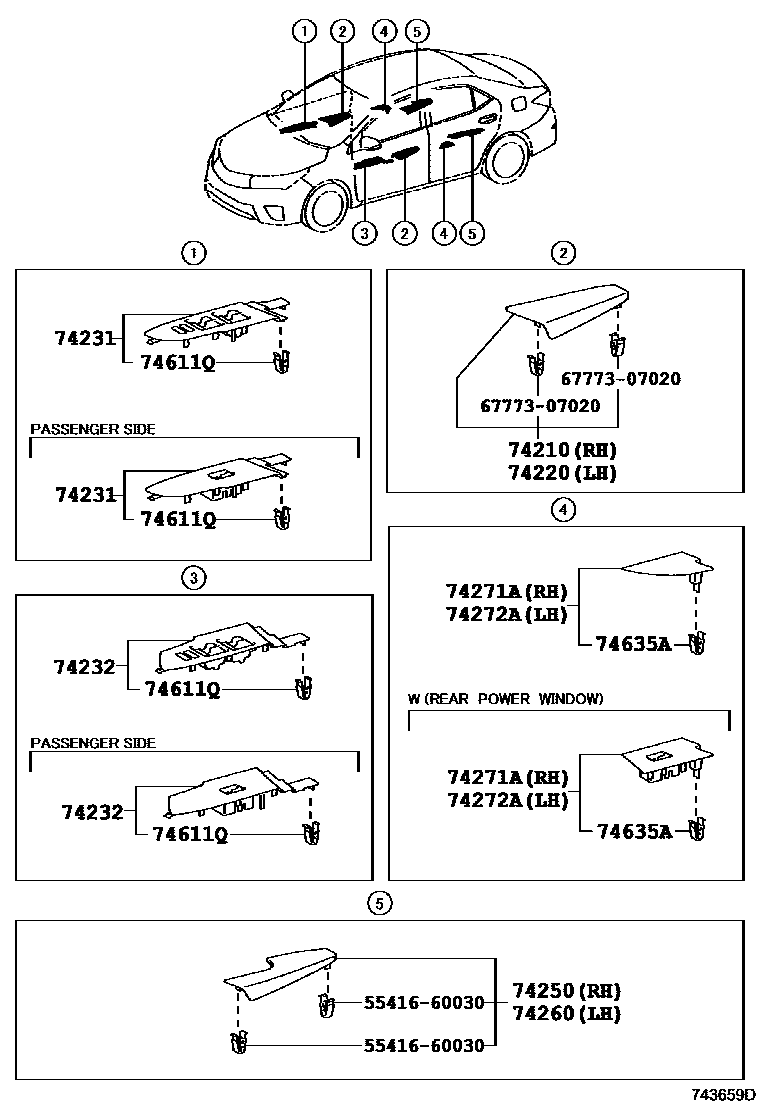

12 parts on this diagram · 2 diagrams in section
