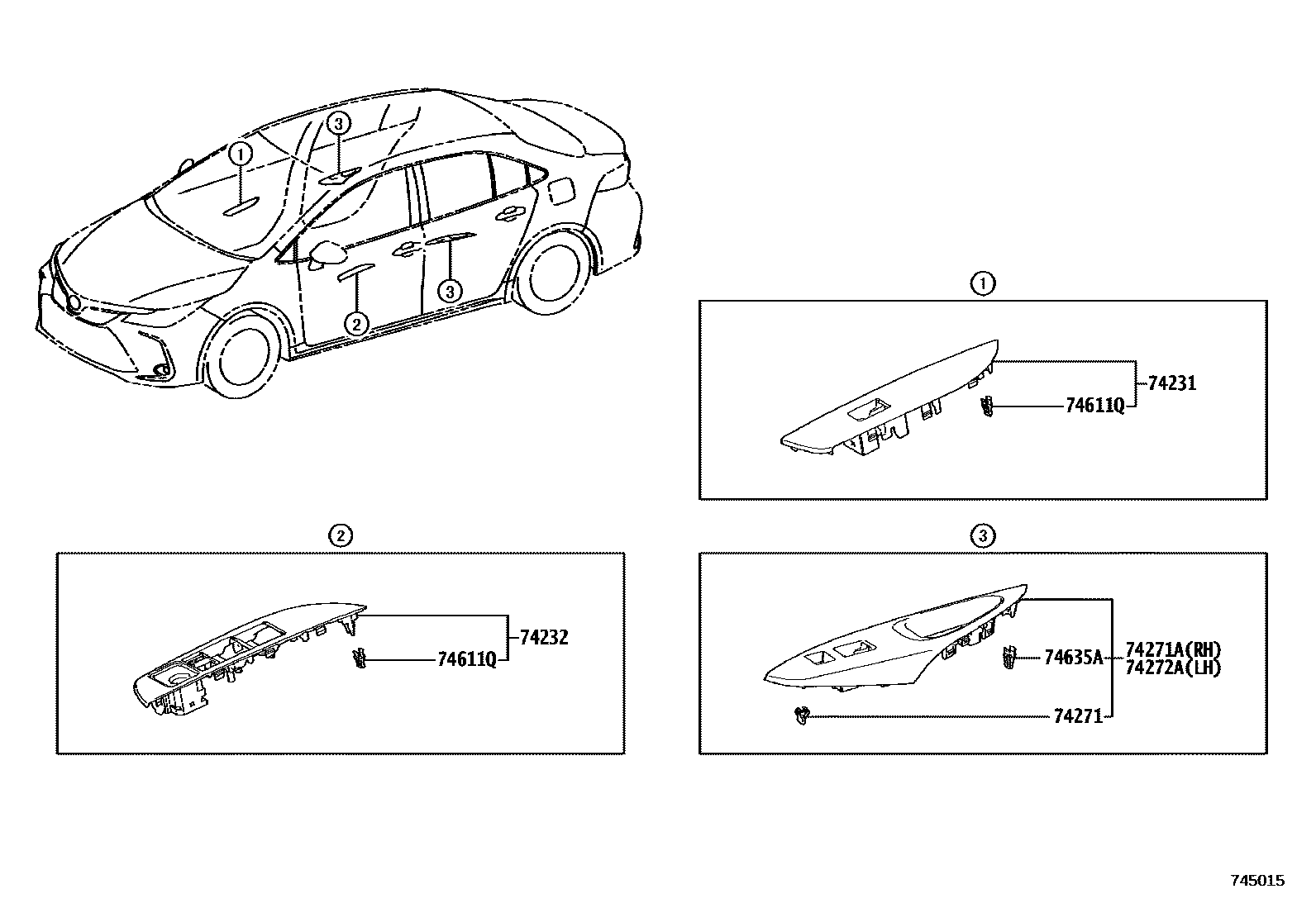

Toyota COROLLA — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02J60iMZEA11,ZWE211201908-202304

main74231-02K20iMZEA17,ZWE219202305

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02K20iNRE210..HI201908-202006

main74232-02L10iMZEA17,ZWE219202305

74271RETAINER, DOOR ARMREST

main55416-60030×2iMZEA17,ZWE219202305

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02A50iMZEA17,ZWE219202305

main74271-02A70iNRE210..HI201908-202006

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02A40iMZEA17,ZWE219202305

main74272-02A60iNRE210..HI201908-202006

74611QCLIP

main90467-C0031×4iNRE210..HI201908-202006

74635ACLIP

main90467-12080×2iNRE210..HI201908-202006

main90467-C0031×2iNRE210..ENTRY,MID202307

7 parts on this diagram · 2 diagrams in section
