Toyota COROLLA — ARMREST & VISOR

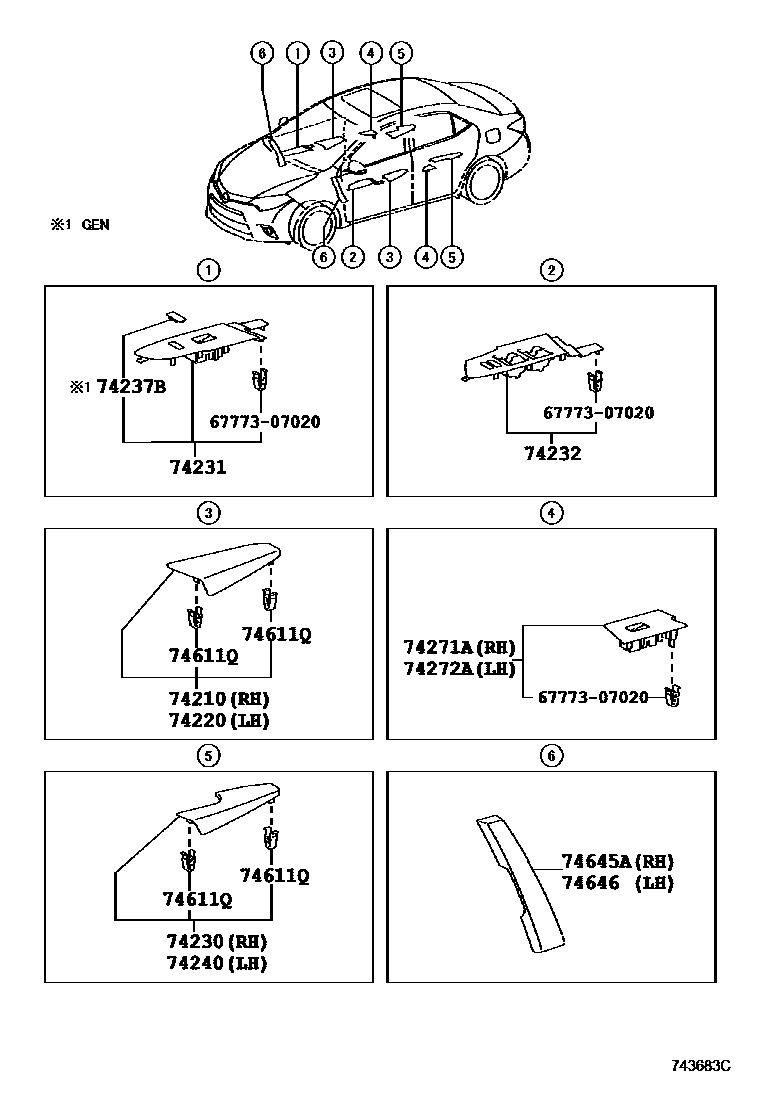

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-02230-C0i201308-201608
BLACK,TRIM1#,*213
main74210-02240-B1i201608
GRAY,TRIM0#,1#,*213
main74210-02240-B3i201308-201608
GRAY,TRIM4#,*213
main74210-02240-B4i201608
DK. GRAY,TRIM2#,*213
main74210-02250-C2i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
main74210-02260-C0i201308-201608
BLACK,TRIM1#,*348
main74210-02270-B1i201608
GRAY,TRIM0#,1#,*348
main74210-02270-B3i201308-201608
GRAY,TRIM4#,*348
main74210-02270-B4i201608
GRAY,TRIM2#,*348
main74210-02280-C2i201308-201608
BLACK,TRIM2#,4#,8#,*348
74220ARMREST ASSY, FRONT, LH
main74220-02200-C0i201308-201608
BLACK,TRIM1#,*213
main74220-02210-B1i201308-201608
GRAY,TRIM0#,1#,*213
main74220-02210-B3i201308-201608
GRAY,TRIM4#,*213
main74220-02210-B4i201608
DK. GRAY,TRIM2#,*213
main74220-02220-C2i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
main74220-02230-C0i201608
BLACK,TRIM1#,*348
main74220-02240-B1i201308-201608
GRAY,TRIM0#,1#,*348
main74220-02240-B3i201308-201608
GRAY,TRIM4#,*348
main74220-02240-B4i201608
GRAY,TRIM2#,*348
main74220-02250-C2i201308-201608
BLACK,TRIM2#,4#,8#,*348
74230ARMREST ASSY, REAR, RH
main74250-02140-C0i201608
BLACK,TRIM1#,*213
main74250-02150-B1i201608
GRAY,TRIM0#,1#,*213
main74250-02150-B3i201308-201608
GRAY,TRIM4#,*213
main74250-02150-B4i201608
DK. GRAY,TRIM2#,*213
main74250-02160-C2i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
main74250-02170-C0i201308-201608
BLACK,TRIM1#,*348
main74250-02180-B1i201308-201608
GRAY,TRIM0#,1#,*348
main74250-02180-B3i201308-201608
GRAY,TRIM4#,*348
main74250-02180-B4i201608
GRAY,TRIM2#,*348
main74250-02190-C2i201608
BLACK,TRIM2#,4#,8#,*348
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-02E10-C0i201308-201608
BLACK,TRIM2#,4#,8#
main74231-02F30-C0i201608
BLACK,TRIM2#,4#,8#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-02E70-C0i201608
BLACK,TRIM2#,4#,8#
74237BCAP, DOOR ARMREST BASE
main74237-02010-C0i201404-201608
BLACK,TRIM2#,4#,8#
74240ARMREST ASSY, REAR, LH
main74260-02110-C0i201308-201608
BLACK,TRIM1#,*213
main74260-02120-B1i201308-201608
GRAY,TRIM0#,1#,*213
main74260-02120-B3i201308-201608
GRAY,TRIM4#,*213
main74260-02120-B4i201608
DK. GRAY,TRIM2#,*213
main74260-02130-C2i201308-201608
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213
main74260-02140-C0i201608
BLACK,TRIM1#,*348
main74260-02150-B1i201308-201608
GRAY,TRIM0#,1#,*348
main74260-02150-B3i201308-201608
GRAY,TRIM4#,*348
main74260-02150-B4i201608
GRAY,TRIM2#,*348
main74260-02160-C2i201608
BLACK,TRIM2#,4#,8#,*348
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-02660-C0i201608
BLACK,TRIM2#,4#,8#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-02660-C0i201308-201608
BLACK,TRIM2#,4#,8#
74611QCLIP
main67773-02010×8i201308-201608
*348
main67773-07020×2i201608
*213
74645ACOVER, DOOR ASSIST GRIP, RH
main74645-02140-C2i201308-201608
BLACK,TRIM2#,4#,8#
74646COVER, DOOR ASSIST GRIP, LH
main74646-02140-C2i201308-201608
BLACK,TRIM2#,4#,8#
6777307020
main67773-07020

13 parts on this diagram · 2 diagrams in section
