Toyota COROLLA — ANTENNA

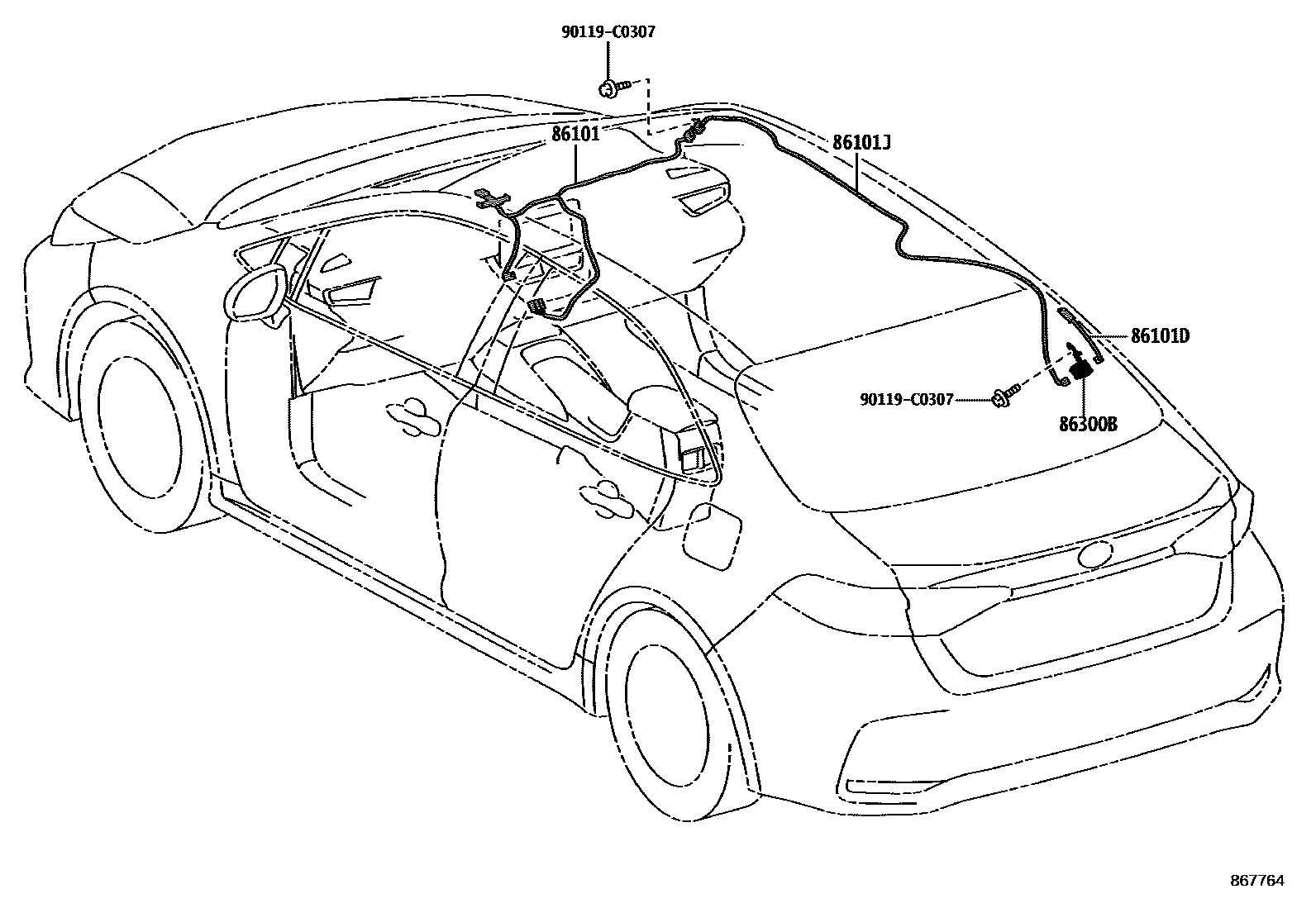

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86101-02L50i201908-202305

main86101-02L60i201908-202304

main86101-02S80i202305

main86101-02Z90i202305

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-02J60i201908-202304

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-02J70i201908-202304

main86101-02L90i201908-202304

main86101-0Z010i202305

main86101-0Z020i202305

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-02630i201908-202304

main86300-02670i202305

90119C0307

main90119-C0307

5 parts on this diagram · 1 diagram in section

ANTENNA for Toyota COROLLA

This section contains 5 genuine Toyota parts for the ANTENNA system of the Toyota COROLLA. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, AMPLIFIER, NO.1.
