Toyota COROLLA — ANTENNA
86300ANTENNA ASSY, W/HOLDER
main86300-12181iTE71..LHD..4D;KE70..LHD..(GL,STD,XL);KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA)198108-198111
main86300-12182iTE71..LHD..4D;KE70..LHD..(GL,STD,XL);KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA)198111-198202
main86300-12183iKE70..LHD..(GL,STD,XL);AE71,CE70,TE71..(DV,SED,WG)..LHD;KE70..(SED,WG)..LHD..DX..(EUG,SDZ);KE70..(SED,WG)..LHD..DX..(GEN,SAA)198202-198707
86301POLE SUB-ASSY, ANTENNA
main86301-12181iTE71..LHD..4D;KE70..LHD..(GL,STD,XL);KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA)198111-198202
main86301-12182iKE70..LHD..(GL,STD,XL);AE71,CE70,TE71..(DV,SED,WG)..LHD;KE70..(SED,WG)..LHD..DX..(EUG,SDZ);KE70..(SED,WG)..LHD..DX..(GEN,SAA)198202-198707
86393ORNAMENT, ANTENNA
main86392-12011iKE70..(SED,WG)..DX..(EUG,SDZ);KE70..(SED,WG)..DX..(ARL,GEN,SAA);KE70..(GL,STD,XL)..(ARL,EUR,GEN,SAA);AE71,CE70,TE71..(DV,SED,WG)..(ARL,EUR,GEN)198108-198707
86396NUT, ANTENNA
86397PLATE, ANTENNA EARTH
9011906005
main90119-06005
9046304340
main90463-04340

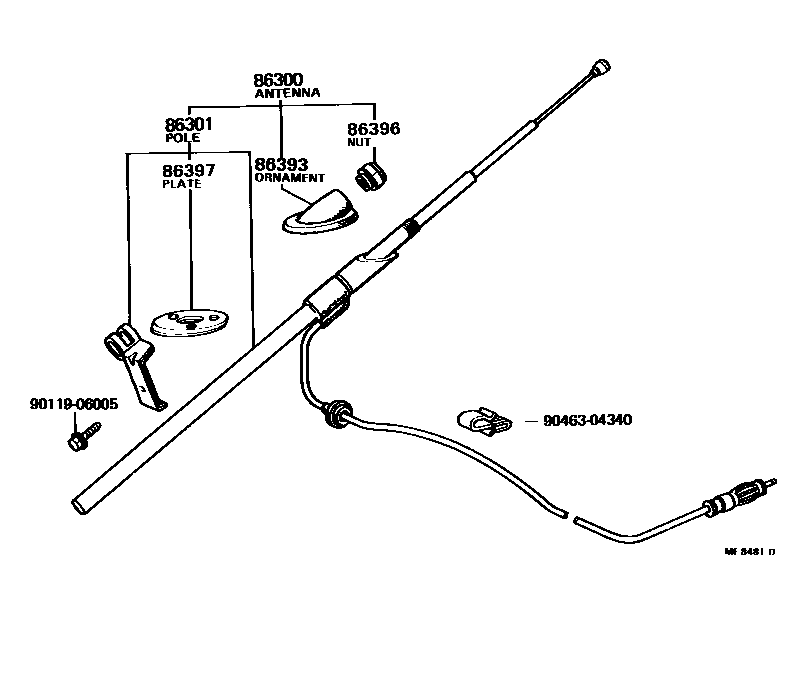

7 parts on this diagram · 1 diagram in section
ANTENNA for Toyota COROLLA
This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota COROLLA. Key components include: ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ANTENNA, ORNAMENT, ANTENNA, NUT, ANTENNA, PLATE, ANTENNA EARTH.
