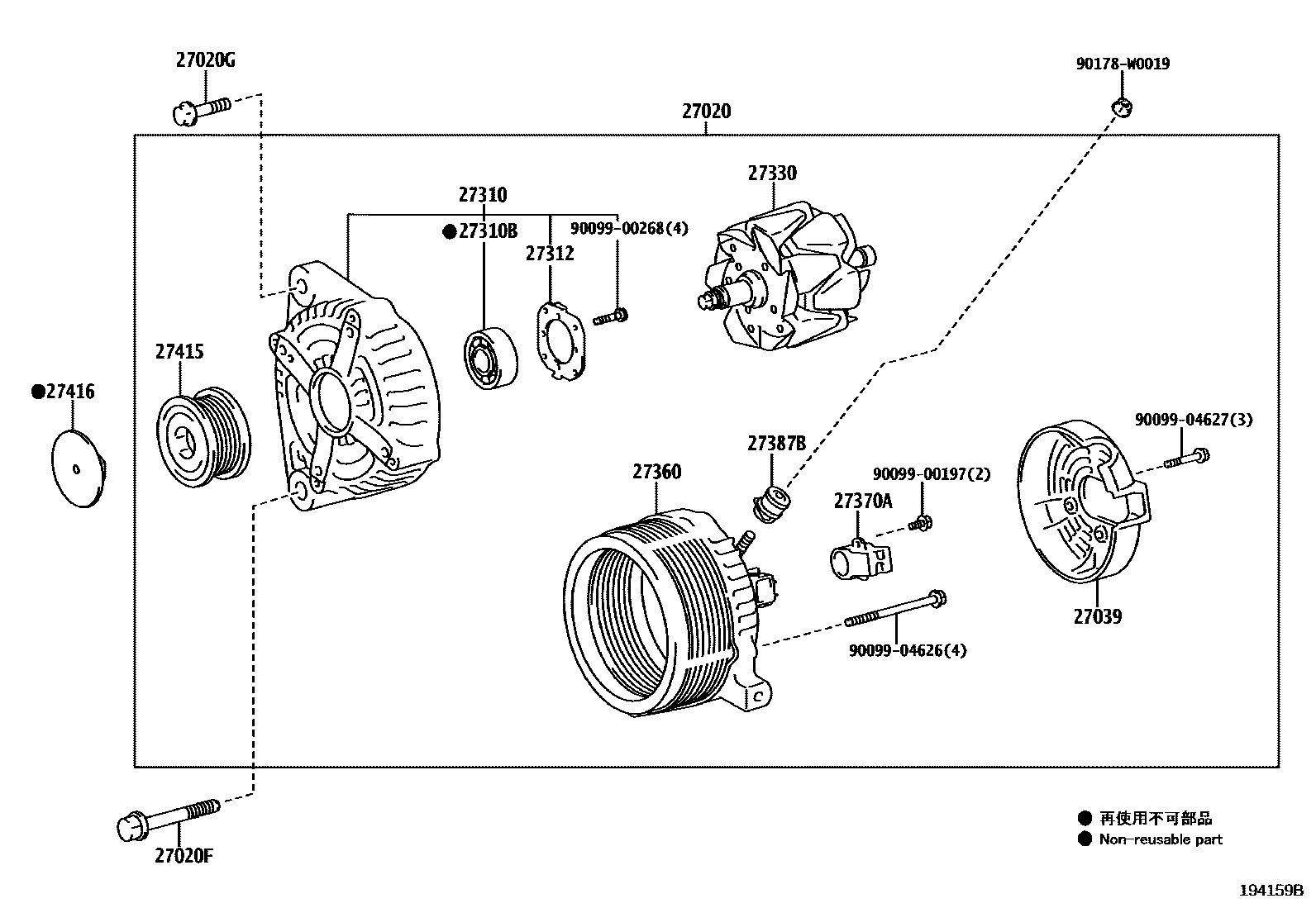

Toyota COROLLA — ALTERNATOR

0001 112V 100A 0002 112V 110A 0003 112V 90A 0004 112V 90A 0005 112V 80A 0006 112V 100A 0007 112V 100A

27020ALTERNATOR ASSY

main27060-0N110i1NDTV..NDE180..TUP201606-201901

12V 100A

main27060-0N120i1NDTV..NDE180..SAP201401-201701

12V 110A

main27060-0T250i1ZRFE,2ZRFE..ZRE18#..SAP201401-201701

12V 90A

main27060-0T360i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

12V 100A

main27060-0Y170i1NRFE..NRE180..SAP201701-201912

12V 90A

main27060-0Y150supersedes 27060-0Y180i1NRFE..NRE180..TUP201606-201808

12V 100A,SUB COLD AREA SPEC

27020FBOLT, NO.1(FOR ALTERNATOR)

main90105-W0044i1NDTV..NDE180..TUP201306-201605

main90105-W0113i1NRFE..NRE180..TUP201606-201808

27020GBOLT, NO.2(FOR ALTERNATOR)

main90119-W0238i1N#..NDE180,NRE180..SAP201606-201912

(L)

main91671-00845i1NRFE..NRE180..TUP201606-201808

(J)

27039COVER, ALTERNATOR REAR END

main27039-0N100i1NDTV..NDE180..SAP201401-201701

main27039-0T230i2ZRFE..ZRE182201912

main27039-0Y150supersedes 27039-0C020i1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP201606-201901

main27039-0Y160i1NRFE..NRE180..SAP201701-201912

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0N080i1NDTV..NDE180..TUP201306-201605

main27310-0T180i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main27310-0Y150supersedes 27310-0Y010i1NRFE..NRE180..TUP201606-201808

SUB COLD AREA SPEC

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main90069-40005i1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP201401-201701

main90099-10223supersedes 90068-10029i1NDTV..NDE180..TUP201606-201901

27312PLATE, RETAINER

main27312-0T300i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main27312-0Y160i1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP201401-201701

main27312-72100supersedes 27312-0C020i1NDTV..NDE180..TUP201306-201605

27330ROTOR ASSY, ALTERNATOR

main27330-0N100i1NDTV..NDE180..SAP201701-201912

main27330-0Y150supersedes 27330-0M040i1NDTV..NDE180..TUP201306-201605

main27330-0Y160i1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP201701-201912

27360COIL ASSY, ALTERNATOR

main27360-0N090i1NDTV..NDE180..TUP201306-201605

main27360-0T340i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main27360-0Y150supersedes 27360-0Y170i1NRFE..NRE180..TUP201606-201808

SUB COLD AREA SPEC

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0Y150supersedes 27370-0M040i1NDTV..NDE180..TUP201306-201605

sub27370-31220

main27700-0Y060i1N#,1ZRFE,2ZRFE..NDE180,NRE180,ZRE18#..SAP201701-201912

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0Y150supersedes 27387-0C020i1NDTV..NDE180..TUP201306-201605

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T040i1ZRFE,2ZRFE..ZRE18#..SAP201701-201912

main27415-0T060i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main27415-0Y081i1NRFE..NRE180..SAP201701-201912

main27415-33100i1NDTV..NDE180..TUP201606-201901

main27415-33110i1NDTV..NDE180..SAP201701-201912

main27415-0Y061supersedes 27415-0Y051i1NRFE..NRE180..TUP201606-201808

SUB COLD AREA SPEC

27416CAP, ALTERNATOR PULLEY

main27416-0W050i1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP201401-201701

main27416-27010i1NDTV..NDE180..TUP201306-201605

main27416-33010i1NDTV..NDE180..SAP201701-201912

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

90178W0019

main90178-W0019

18 parts on this diagram · 7 diagrams in section
