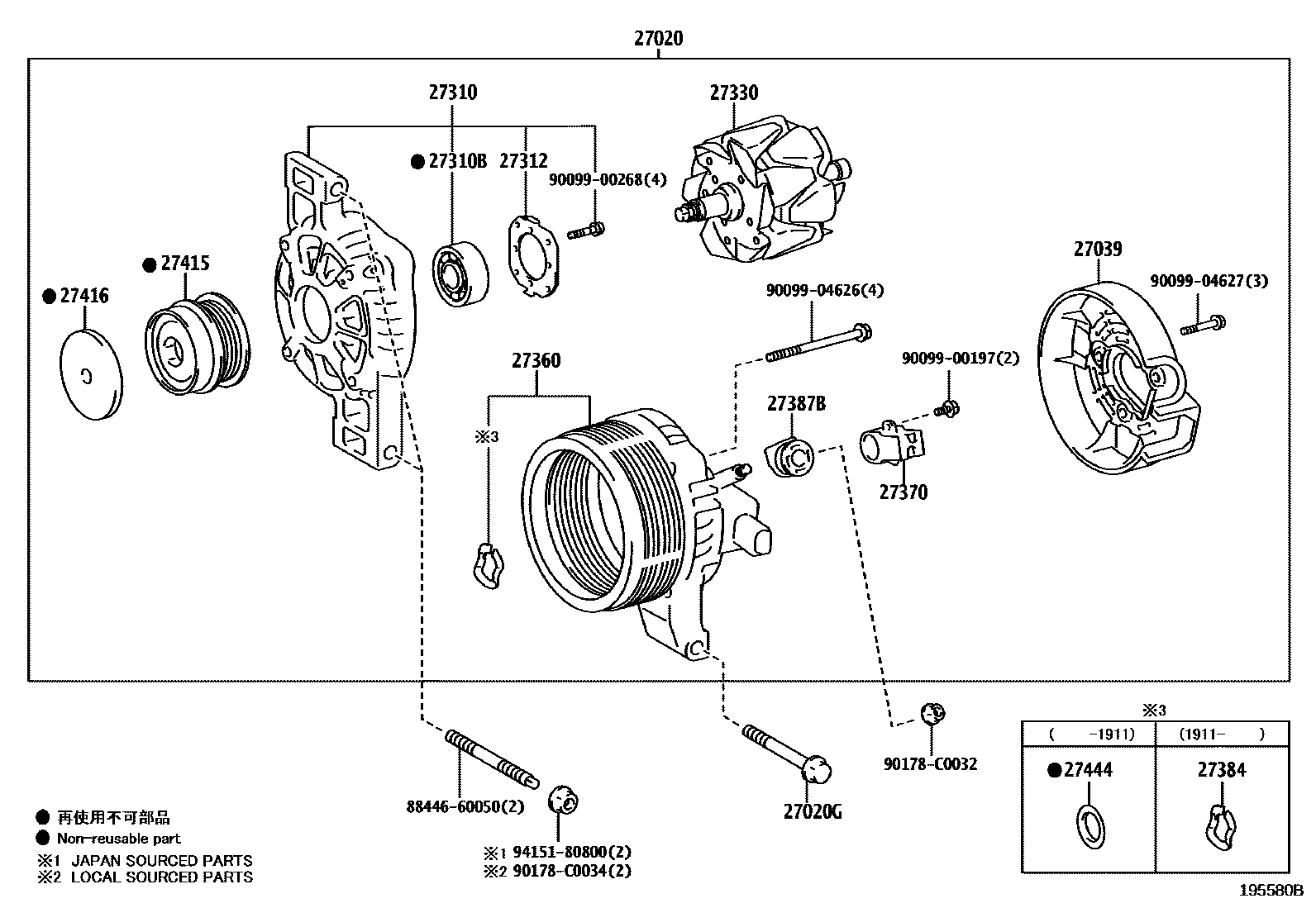

Toyota COROLLA — ALTERNATOR
27020ALTERNATOR ASSY
12V 100A
12V 100A
12V 100A
27020GBOLT, NO.2(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387BINSULATOR, ALTERNATOR TERMINAL
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
27444PACKING, ALTERNATOR BEARING COVER
8844660050BOLT, IDLE PULLEY
main88446-60050
9009900197
main90099-00197
9009900268
main90099-00268
9009904626
main90099-04626
9009904627
main90099-04627
90178C0032
main90178-C0032
90178C0034
main90178-C0034
9415180800
main94151-80800
22 parts on this diagram · 2 diagrams in section
ALTERNATOR for Toyota COROLLA
This section contains 22 genuine Toyota parts for the ALTERNATOR system of the Toyota COROLLA. Key components include: ALTERNATOR ASSY, BOLT, NO.2(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
