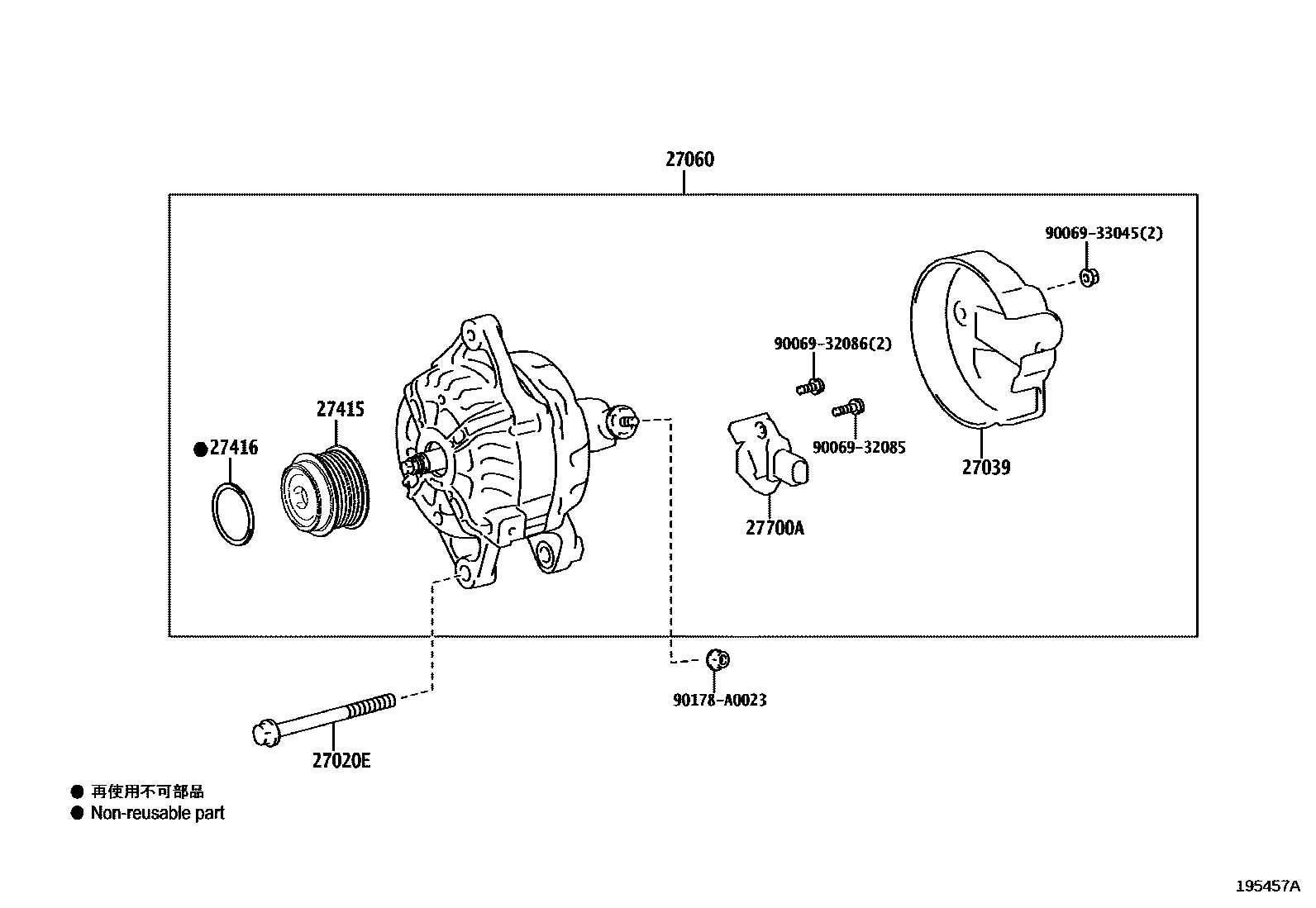

Toyota COROLLA — ALTERNATOR
27020EBOLT(FOR ALTERNATOR)
(J)
(L)
27039COVER, ALTERNATOR REAR END
main27039-0T210i2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN201308-201608
27060ALTERNATOR ASSY, W/REGULATOR
main27060-0T230i2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN201308-201608
27415PULLEY, ALTERNATOR W/CLUTCH
main27415-0T031i2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN201308-201608
27416CAP, ALTERNATOR PULLEY
27700AREGULATOR ASSY, GENERATOR
main27700-0T060i2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN201308-201608
9006932085
main90069-32085
9006932086
main90069-32086
9006933045
main90069-33045
90178A0023
main90178-A0023
10 parts on this diagram · 2 diagrams in section
ALTERNATOR for Toyota COROLLA
This section contains 22 genuine Toyota parts for the ALTERNATOR system of the Toyota COROLLA. Key components include: BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, ALTERNATOR ASSY, W/REGULATOR, FRAME ASSY, DRIVE END, ALTERNATOR, SCREW(FOR ALTERNATOR DRIVE END FRAME).
